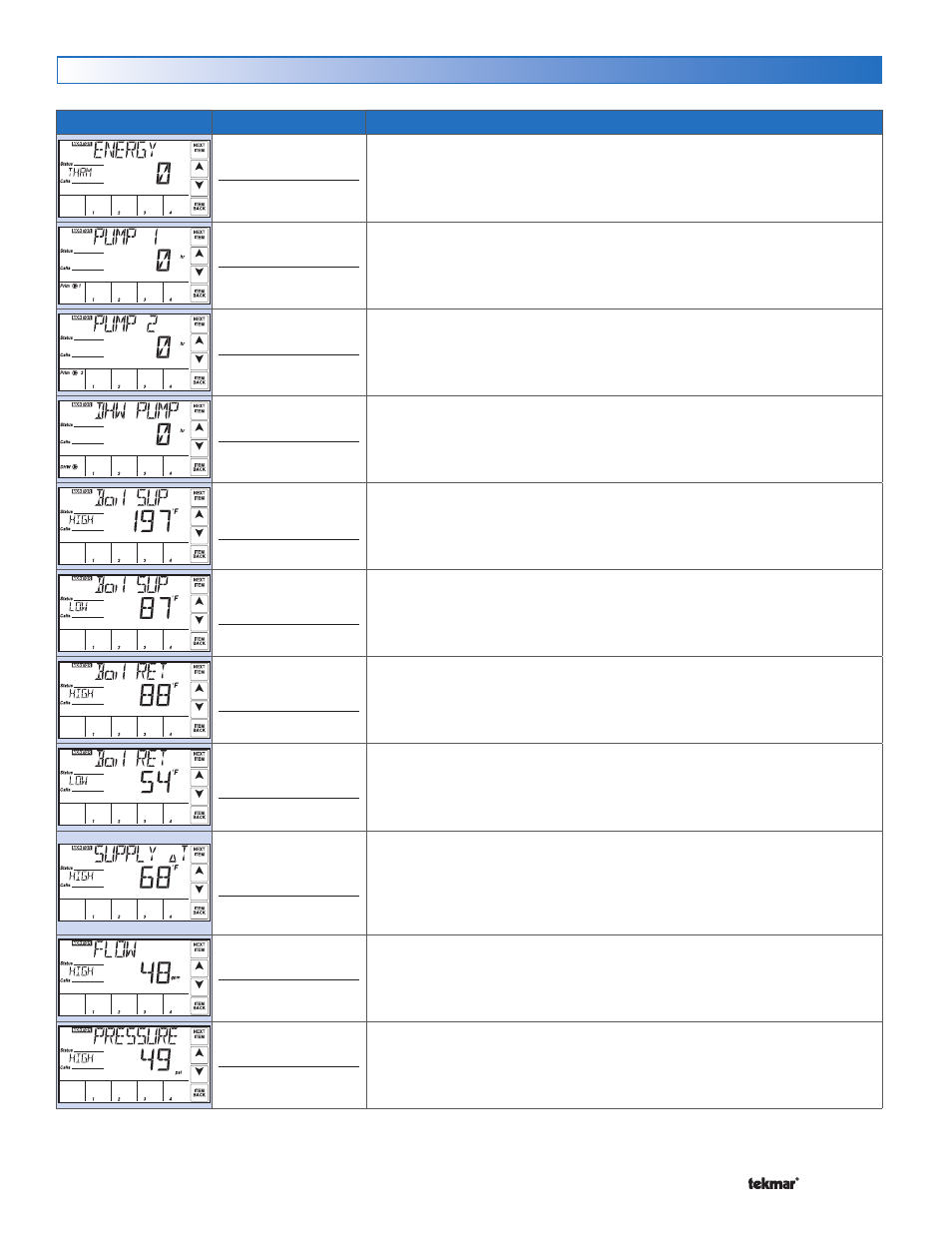

Item Field Range Description
0 to 65535 Therms
Access: ADV
ENERGY
Total calculated energy being delivered to the load since this item was last cleared.
Press & hold the ‘CLEAR’ button while viewing to reset. This item is only available
when Flow Sensor is set to ON & a boiler return sensor is connected.
0 to 65535 hours
Access: ADV
PRIMARY PUMP 1 RUN TIME
The total running time of primary pump 1 since this item was cleared. Press &
hold the ‘CLEAR’ button while viewing to reset.
0 to 65535 hours
Access: ADV
PRIMARY PUMP 2 RUN TIME
The total running time of primary pump 2 since this item was cleared. Press &
hold the ‘CLEAR’ button while viewing to reset.
0 to 65535 hours
Access: ADV
DHW PUMP RUN TIME
The total running time of the IDHW pump since this item was cleared. Press &
hold the ‘CLEAR’ button while viewing to reset.
-22 to 266°F
(-30.0 to 130.0°C)
Access: ADV
BOILER SUPPLY HIGH
Records the highest boiler supply temperature since this item was last cleared.
Press & hold the ‘Clear’ button while viewing to reset.
-22 to 266°F
(-30.0 to 130.0°C)
Access: ADV
BOILER SUPPLY LOW
Records the lowest boiler supply temperature since this item was last cleared.
Press & hold the ‘CLEAR’ button while viewing to reset.
-22 to 266°F
(-30 to 130°C)
Access: ADV
BOILER RETURN HIGH
Records the highest boiler return temperature since this item was last cleared.
Press & hold the ‘CLEAR’ button while viewing to reset.
This item is only available when a boiler return sensor is connected.
-22 to 266°F
(-30.0 to 130.0°C)
Access: ADV
BOILER RETURN LOW
Records the lowest boiler return temperature since this item was last cleared.
Press & hold the ‘CLEAR’ button while viewing to reset.
This item is only available when a boiler return sensor is connected.
-22 to 266°F
(-12.0 to 148.0°C)
Access: ADV
SUPPLY TEMPERATURE DIFFERENCE HIGH
Records the highest temperature difference between the boiler supply & boiler
return sensors since this item was cleared. Press & hold the ‘CLEAR’ button
while viewing to reset.
This item is only available when the boiler supply & boiler return sensors are
connected
0 to 65535 gpm
Access: ADV
FLOW RATE HIGH
Records the highest flow rate from the flow sensor since this item was last cleared.
Press & hold the ‘CLEAR’ button while viewing to reset.
This item is only available when Flow Sensor is set to ON.
0 to 65535 psi
Access: ADV
PRESSURE HIGH
Records the highest pressure since this item was last cleared. Press & hold the
‘CLEAR’ button while viewing to reset.
This item is only available when Pressure Sensor is set to ON.
Monitor Menu (1 of 2)
This Monitor Menu displays items that are not specific to one boiler.
