Wiring boiler outlet sensors (tekmar 082), Wiring the outdoor sensor (tekmar 070), Terminals 26 to 31 – tekmar 284 Boiler Control User Manual

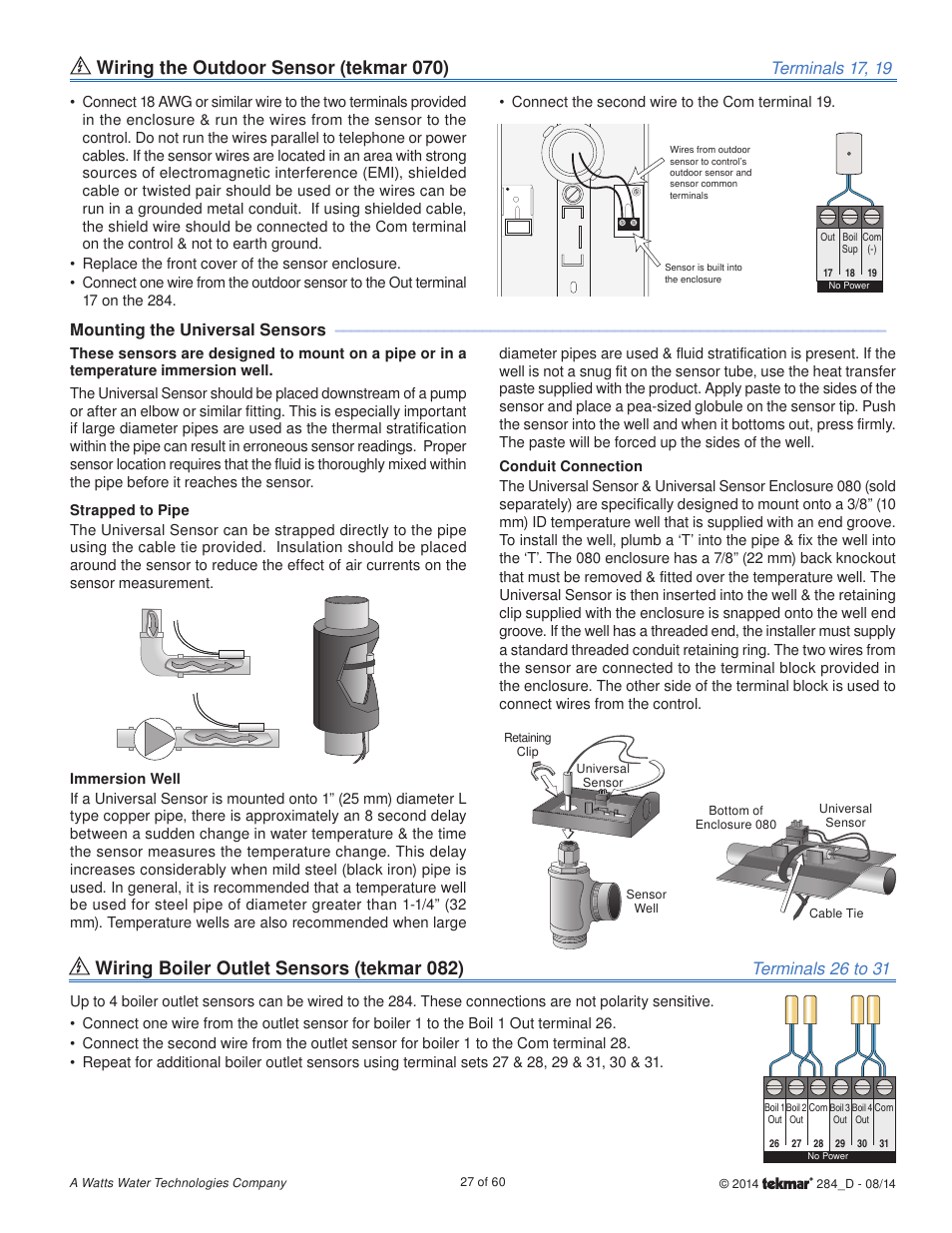

Page 27: Terminals 17, 19, Mounting the universal sensors
