Sensor installation & wiring, Modulating boiler wiring, Terminals 51 to 72 – tekmar 284 Boiler Control User Manual

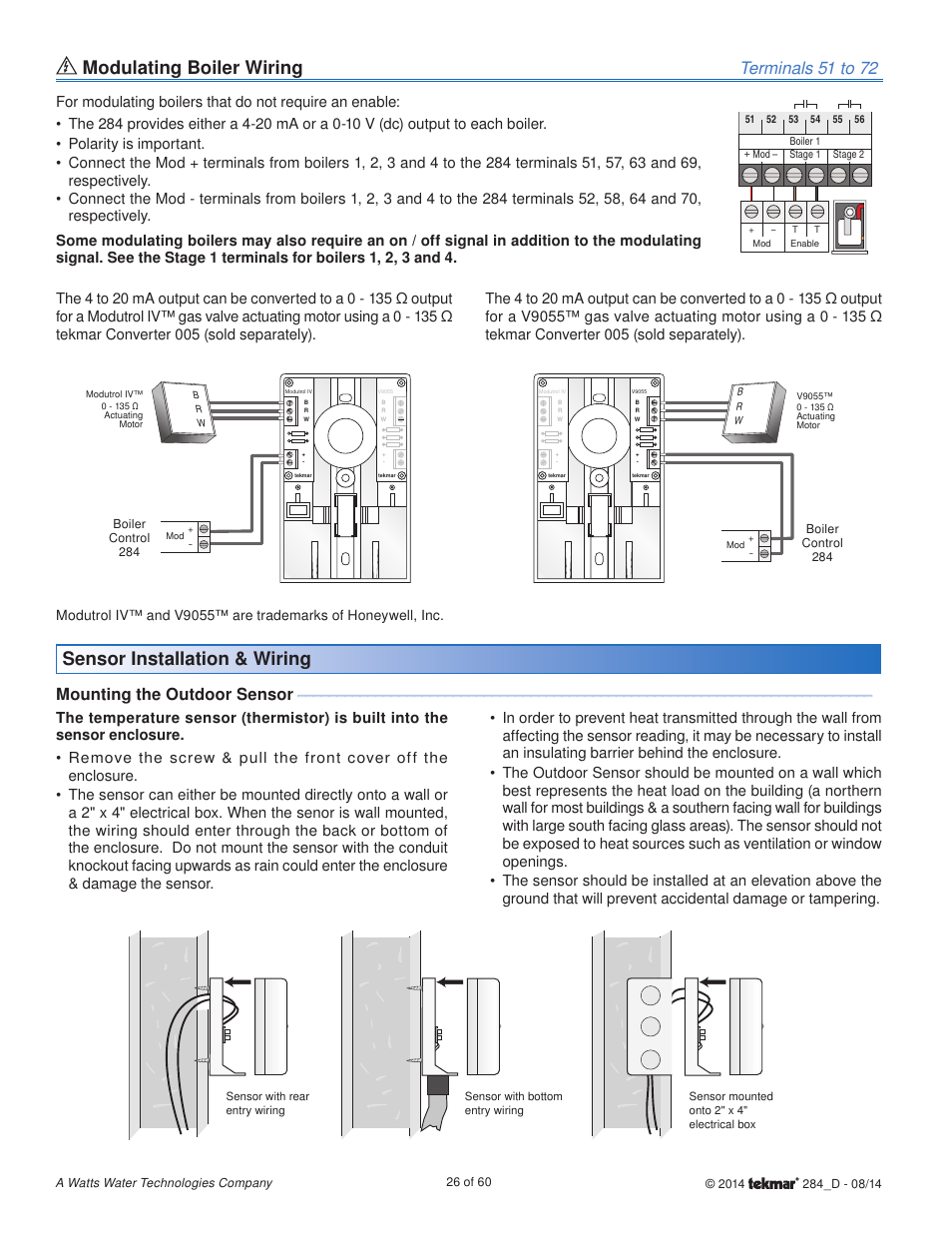

Page 26: Mounting the outdoor sensor
