Wiring an indirect dhw pump, Wiring an alert, Wiring a flow proof – tekmar 284 Boiler Control User Manual

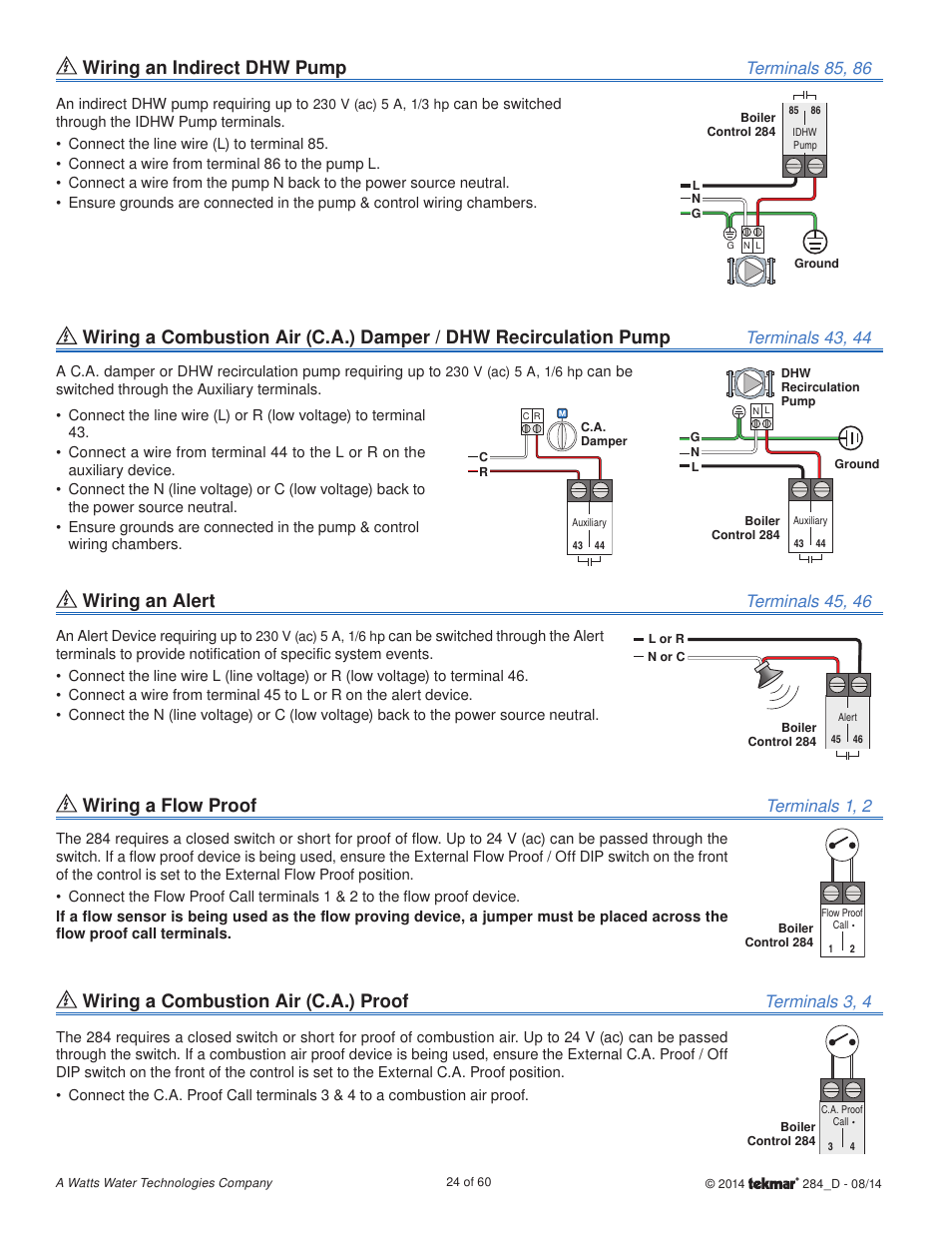

Page 24: Wiring a combustion air (c.a.) proof, Terminals 85, 86, Terminals 43, 44, Terminals 45, 46, Terminals 1, 2, Terminals 3, 4
