Master Gain Levels View

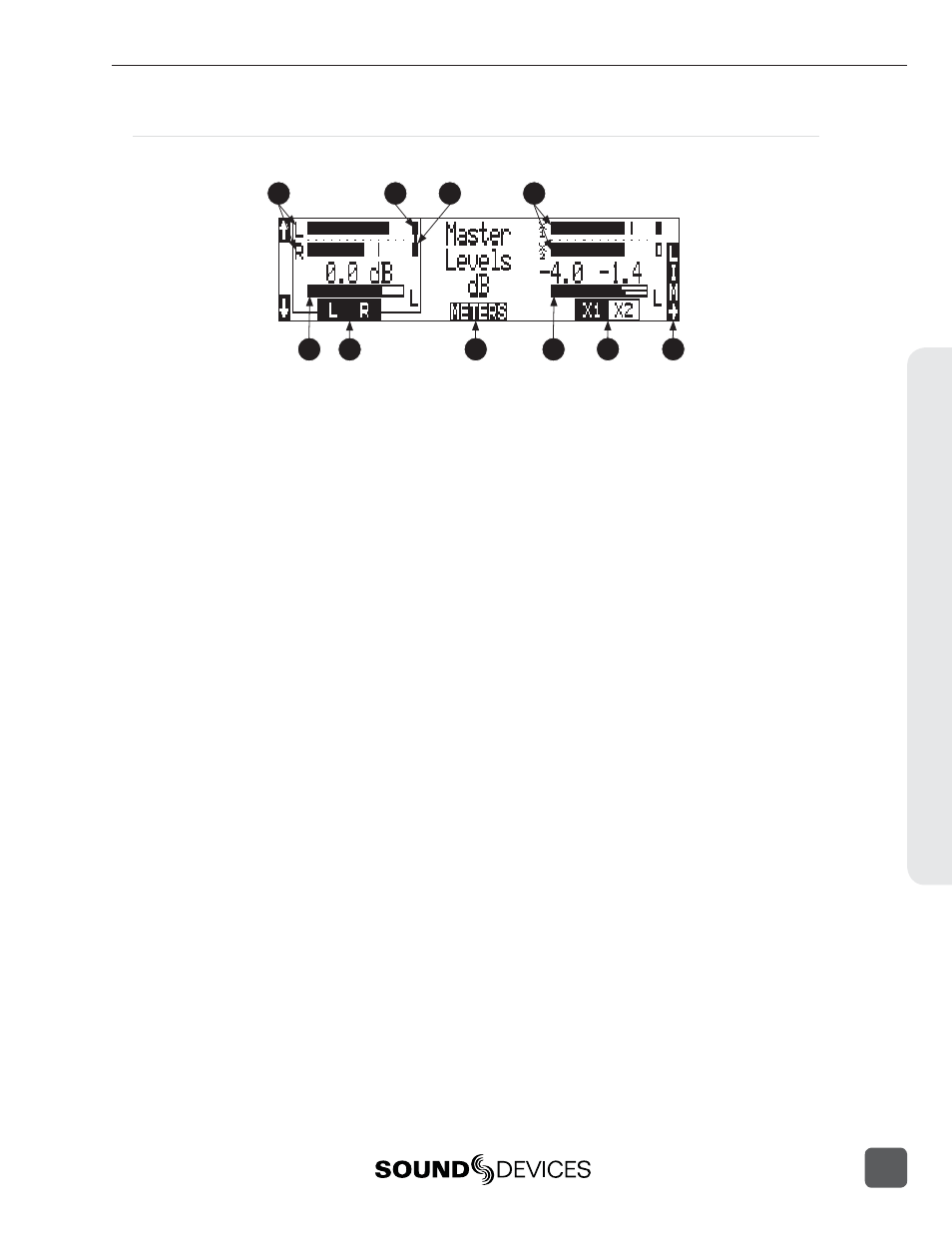

The screen below is the Master Gain Levels View, it appears if the LEVELS (Play) Key is selected.
14 11 12 13
19 20 17 16 15 18
11) L/R Meters
Displays real time metering of Left and
Right Track Levels.
12) Track Limiter Indicator
Appears when Track Limiter is engaged.
Limiter is active when the indicator is
solid.
13) Track Limiter Linked
Indicates that the track limiter is linked.
14) AUX Meters
Displays real time metering of X1 and X2
Track Levels.
15) L/R Master Gain Level
Displays gain level applied to the Master
Left and Right Tracks. Only one bar is dis-
played when tracks are linked as a stereo
pair (as shown). Two bars are displayed
when the tracks are independent.
16) L/R Master Gain
Pressing the soft L/R (Rewind) key will
select the Left and Right Tracks Master
Gain level. Pressing again will select the
track to be controlled. When both tracks
of the pair are highlighted the Tracks are
linked as a stereo pair (as shown). Gain
is adjusted from -60 to +15 dB in .1 dB
increments using the Rotary Switch or the
soft up and down arrows. Press in on the
Rotary Switch to return to unity gain (0
dB).
17) Meters
Press the soft METERS (Play) key to re-
turn to the Track Level Meters View.
18) AUX Master Gain Level
Displays gain level applied to the Aux
Tracks. Only one bar is displayed when
tracks are linked as a stereo pair. Two bars
are displayed when the tracks are inde-
pendent (as shown).
19) AUX Master Gain
Pressing the soft AUX (Fast Forward) key
will select the Aux Tracks Master Gain
level. Pressing again will select the track
to be controlled. When both tracks of the
pair are highlighted the Tracks are linked
as a stereo pair. Gain is adjusted from -60
to +15 dB in .1 dB increments using the
Rotary Switch or the soft up and down
arrows. Press in on the Rotary Switch to
return to unity gain (0 dB).
20) Limiter Key
Press the LCD Backlight key to toggle the
select stereo pairs Track Limiter status.
Each press cycles the various settings Off,
On, Linked.
See Track Limiters for details.
