When linked, the track levels of the pair are controlled by a single gain control; Tracks L and R are
controlled by the L Master Gain Level Control and Tracks X1 and X2 are controlled by the X1 gain
level.
CL-9 Headphone Monitor
The Sound Mixer is able to monitor several sources in headphones, including the 788T Headphone
Monitor Selection, COM Sends, and the CL-9 Returns. For this to work it is required that the 788T
Headphone Output is connected to the CL-9’s rear panel connector labeled 788T Headphone In.
Make the connection using either a 3.5 mm or 1/4-inch to 1/4-inch TRS cable.
Headphone Level
When the CL-9 is connected, the CL-9 Headphone Level Control duplicates the 788T Headphone
Level Control. That is, it adjusts the level of the 788T Headphone Outputs. Headphone Levels can be

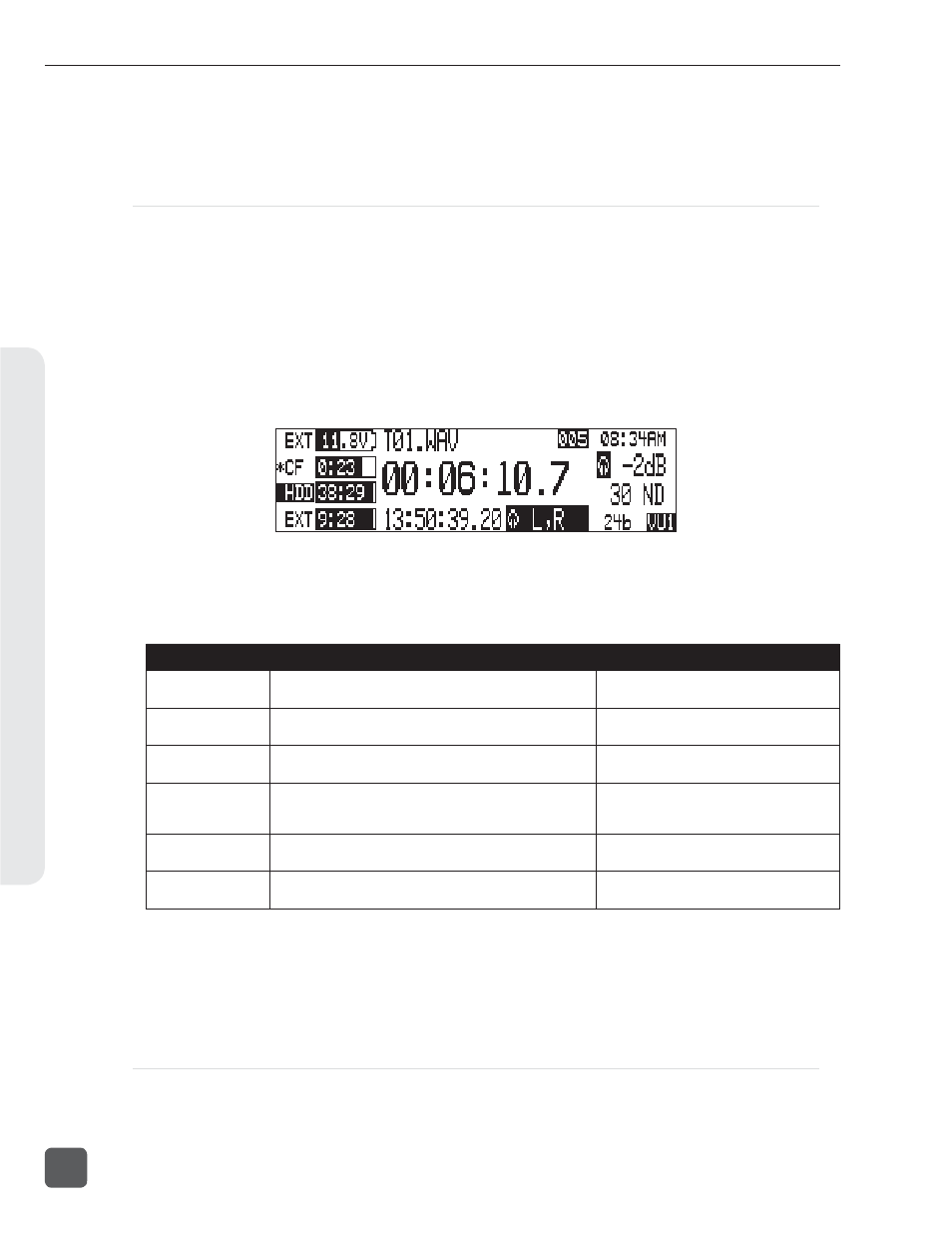

adjusted from Off, -40 dB to +26 dB. When adjusting the Headphone Level the gain is displayed on
the 788T Main LCD display.
The Headphone Level Control also adjusts the RTN and Slate Microphone levels while the various
function’s toggle switches are being held in position. Press in on the CL-9 Headphone Level Control
to toggle the RTN Mono mode on or off. When RTN Mono is active the RTN is sent to both sides of
the headphone monitor.
See CL-9 Communications for details.
Level Control Description Action
CL-9 Headphone Duplicates the 788T Headphone Level Control. Controls
the overall level of the 788T Headphone Outputs. Turn the CL-9 Headphone Level Control
COM1 Send Controls the COM1 send level sent to routed destinations. Hold COM1 switch to the Left then turn the
CL-9 Headphone Level Control
COM2 Send Controls the COM2 send level sent to routed destinations. Hold COM2 switch to the left then turn the
CL-9 Headphone Level Control
Slate Send Controls the Slate send level sent to routed destinations. Press and release Shift, then hold the
COM2 switch to the right and turn the
CL-9 Headphone Level Control
RTN1 Controls the monitor level of the CL-9 RTN1. Hold the RTN1 switch to the right, then
turn the CL-9 Headphone Level Control
RTN2 Controls the monitor level of the CL-9 RTN2. Hold the RTN2 switch to the right, then
turn the CL-9 Headphone Level Control
Monitor Selection
The CL-9 Select Encoder duplicates the 788T Rotary Switch when the CL-9 is connected. Turn the
Select Encoder to scroll through the available headphone routings as defi ned in the Setup Menu op-
tion HP: MONITOR MODES. Press the Select Encoder to quickly access a favorite headphone mode or
switch playback drives, as defi ned in the Setup Menu option HP: ROTARY PUSH FUNCTION.
Setup Menu Navigation From CL-9
To enter the Setup Menu press and hold the CL-9 Select Encoder for one second or longer. While in
the Setup Menu, use the Select Encoder to scroll through menus and select menu items. Press the
788T/788T-SSD User Guide and Technical Information
132
v. 3.02 Features and specifications are subject to change. Visit www.sounddevices.com for the latest documentation.
