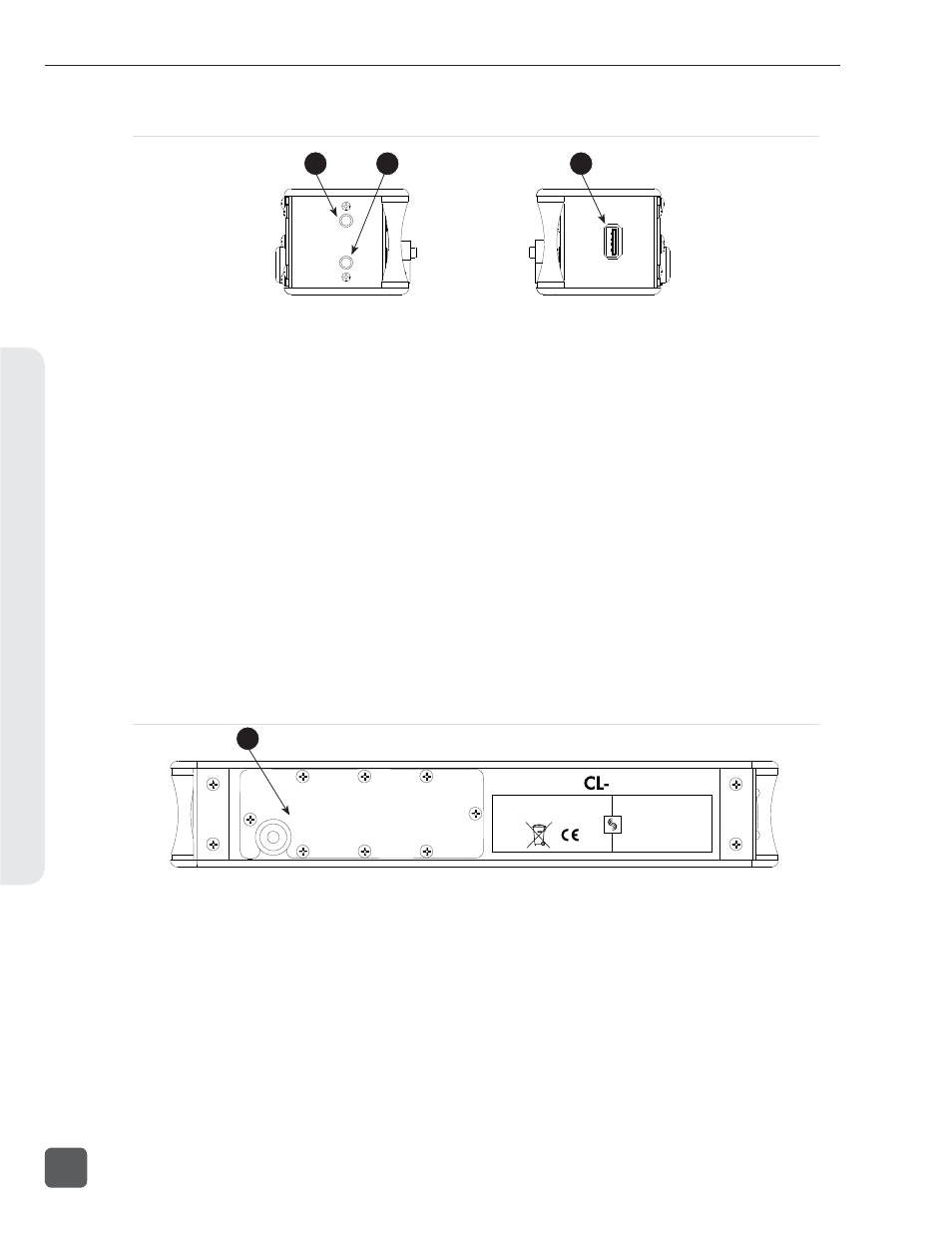

CL-8 Side Panel Descriptors
KEYBOARD
ALT
SLATE KEYBOARD
ALT
SLATE
1 3 2
1) Alt Button
Press to toggle between the CL-8 Views
(Main, Aux Routing, and Input Settings).
See CL-8 Views for more details.
2) Slate Mic Button
Press and hold to activate the 788T Slate
Mic. To adjust the Slate Mic gain, acti-
vate the Slate Mic then turn the Rotary
Switch. Gain is adjustable from -46 to
6 dB in 1 dB increments. Slate Mic gain
is only adjustable from the 788T Main
LCD Screen, the gain level is displayed
momentarily in the Sampling Rate fi eld
of the Main LCD screen. The Slate Mic
can be routed to any track, output, or
headphone monitor in the Setup Menu
option COMMS: ROUTING. The Slate Mic
source is set in the Setup Menu option
COMMS: INPUT SOURCE
.
3) USB Keyboard Input
USB A Female Connector for USB
keyboards. This acts as a thru port to
the 788T USB Keyboard Input, which
is used to connect the CL-8 to the 788T.
This connector allows for simultaneous
keyboard and CL-8 control.
CL-8 Back Panel Descriptors
KEYBOARD
ALT
SLATE
8
Made In
Reedsburg, Wisconsin
USA
www.sounddevices.com
This device complies with the
FCC Rules, Part 15, Class B.
1
1) USB Cable Bay
Remove the eight screws to access the
17-inch USB A to USB B cable. Adjust
cable length as needed. Replace this
cable as needed. For CL-8 operation,
connect the USB A Male connector to the
788T USB Keyboard Input.
