If disconnected, the 788T retains all CL-9 settings unless the user confi rms disconnection. All CL-9
only settings will then be disabled, including Fader levels, COMs, Slate, EQ, Pan, and Output Mute.
If the CL-9 is reconnected without pressing confi rmation, the 788T returns to the screen viewed prior
to disconnection. All settings remain the same, provided that the fader levels have not been adjusted.

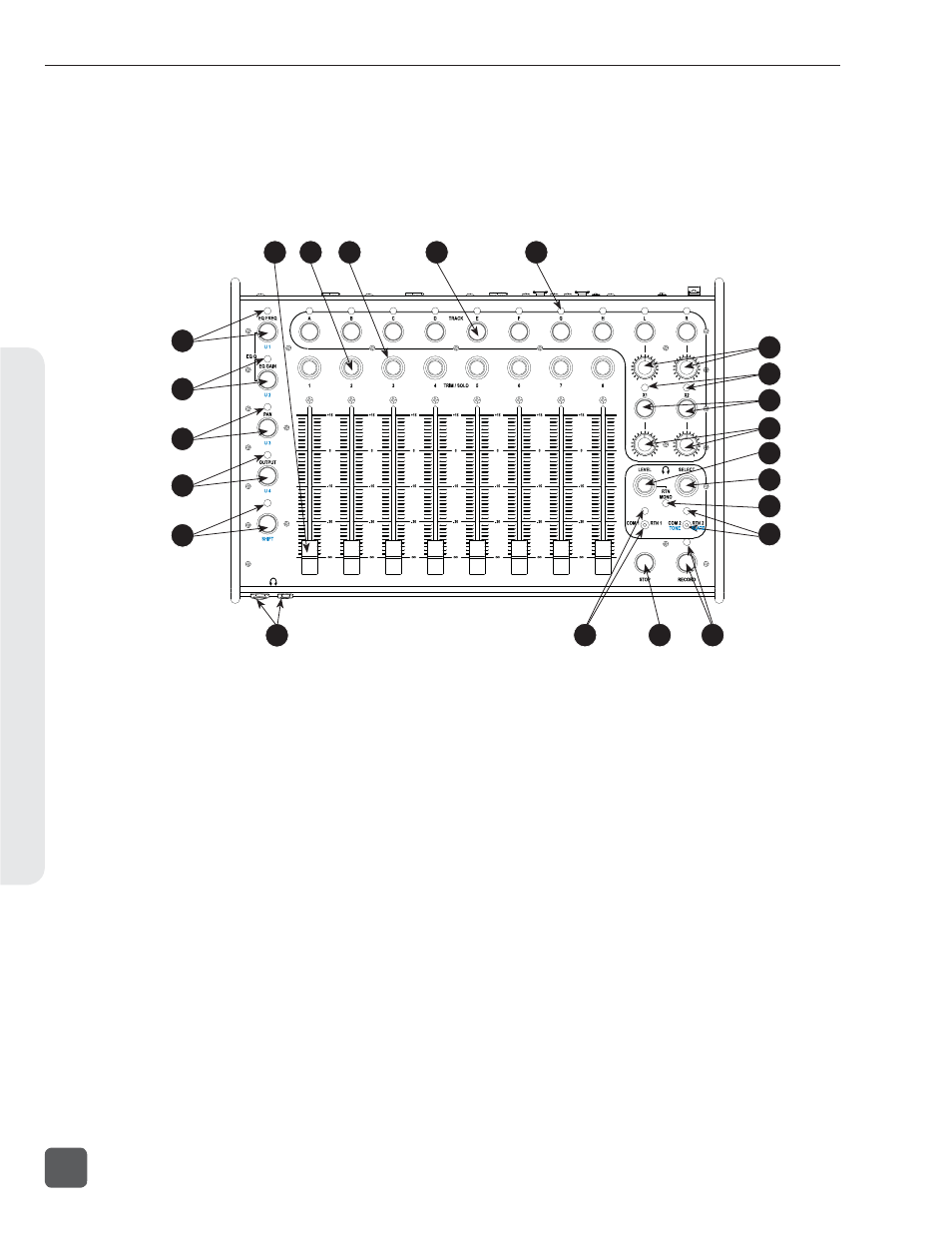

CL-9 Front and Top Panel Descriptors
22
21
20
19
18
17 15 14 16
6
7
9
13
11
10
12
8
1 2 3 4 5
1) Channel Fader
100 mm linear faders. Adjusts the level of
each respective input sent to tracks post-
fade. Fader range is adjustable in the Set-
up Menu option INPUT: FADER RANGE.
2) Rotary Encoders
The rotary encoders control several func-
tions depending on the active mode. Press
to solo (PFL) the input or output in the
headphones, press and hold to toggle the
setting status, and turn to adjust the set-
ting value.
See CL-9 Modes.
3) Ring LEDs
Displays pre-fade signal level in various
colors and intensities to represent the
state of each channel. Green = pre-fade
signal activity, Yellow = pre- and post-
fade limiter activity, Red = signal over-
load (clipping). The LEDs illuminate solid
red to indicate a muted input or solid
yellow for soloed channel. When routing
Inputs-to-Tracks from the CL-9, the LED
illuminates solid green to indicate pre-
fade routing and solid red for post-fade
routing.
See CL-9 Input-to-Track Routing.
4) Track Buttons
Press to enable or disable the track for re-
cording. Press and hold for one second to
solo the Track and enter the CL-9 Input-
to-Track Routing Mode.
See CL-9 Input-to-
Track Routing.
