20) Pan/User 3 Button
Press to enter Pan Mode. Press shift
then PAN Button to enter User 3 as
defi ned in the Setup Menu option
CL-9: USER 1-4 ASSIGN
. See Pan Mode.
21) EQ Gain/User 2 Button
Press to enter EQ Gain Mode. Press shift
then EQ GAIN Button to enter User 2
as defi ned in the Setup Menu option
CL-9: USER 1-4 ASSIGN
.. See EQ Gain
Mode. Press EQ GAIN and EQ FREQ But-
tons together to enter Q-Factor Mode. See
Q-Factor Mode.
22) EQ Frequency/User 1 Button
Press to enter EQ Frequency Mode. Press
shift then EQ FREQ Button to enter User
1 as defi ned in the Setup Menu op-
tion CL-9: USER 1-4 ASSIGN..
See EQ
Frequency Mode. Press EQ GAIN and EQ
FREQ Buttons together to enter Q-Factor
Mode.
See Q-Factor Mode.

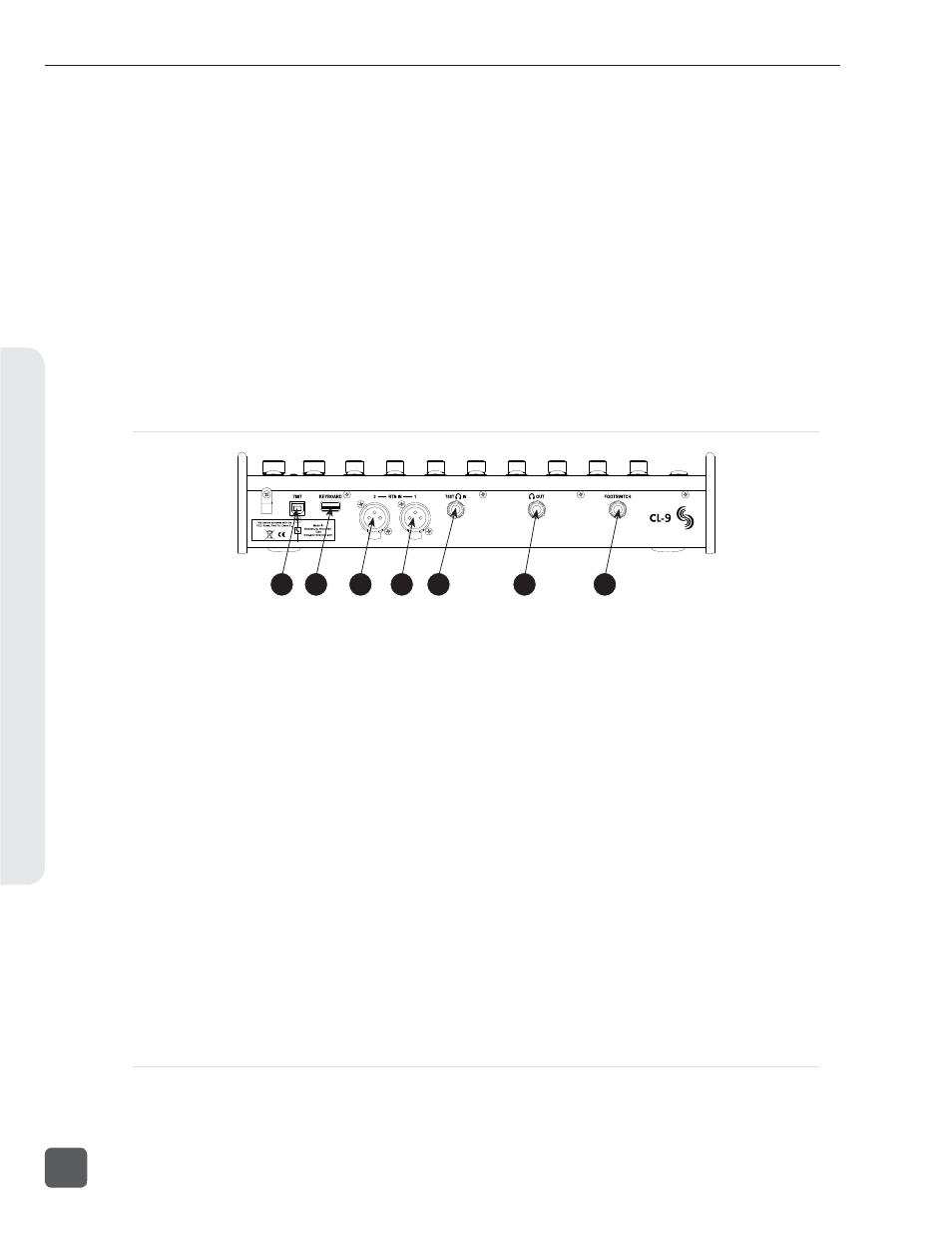

CL-9 Rear Panel Descriptors
1 2 3 4 5 6 7
1) 788T USB-B Input
For CL-9 operation and power, connect
to the 788T’s rear panel KEYBD USB-A
connector.
2) USB Keyboard Input
USB-A female connector for USB key-
boards. This acts as a thru port to the
788T USB Keyboard Input, which is
used to connect the CL-9 to the 788T.
This connector allows for simultaneous
keyboard and CL-9 use.
3) XLR RTN 1
Active-balanced analog line-level input
for return monitoring. Pin-1 ground,
pin-2 (+), pin-3 (
 ).
4) XLR RTN 2
Active-balanced analog line-level input
for return monitoring. Pin-1 ground,
pin-2 (+), pin-3 (
 ).
5) 788T Headphone Input
1/4-inch TRS stereo unbalanced jack.
For connecting the 788T Headphone
Output to the CL-9. Tip = left, ring =
right, sleeve = ground.
6) Line-Level Headphone Output
1/4-inch TRS stereo unbalanced jack,
line-level output. Program is identical
to the CL-9’s front panel Headphone
Outputs. Tip = left, ring = right, sleeve =
ground.
7) Footswitch Input
1/4-inch TRS jack with two GPI
lines. Used to trigger select 788T
functions. Functionality is as-
signed in the Setup Menu option
KEYBOARD/LOGIC IN: ASSIGN
.
CL-9 Fader Control
The eight 100 mm faders control the fader level of the eight inputs. Faders only have effect on an
input when it is being sent to a track post-fade.
