Creating the presenceplus inspection, Creating the – Banner PresencePLUS P4 Series User Manual
Page 69
Main Tasks to Complete
Step 3

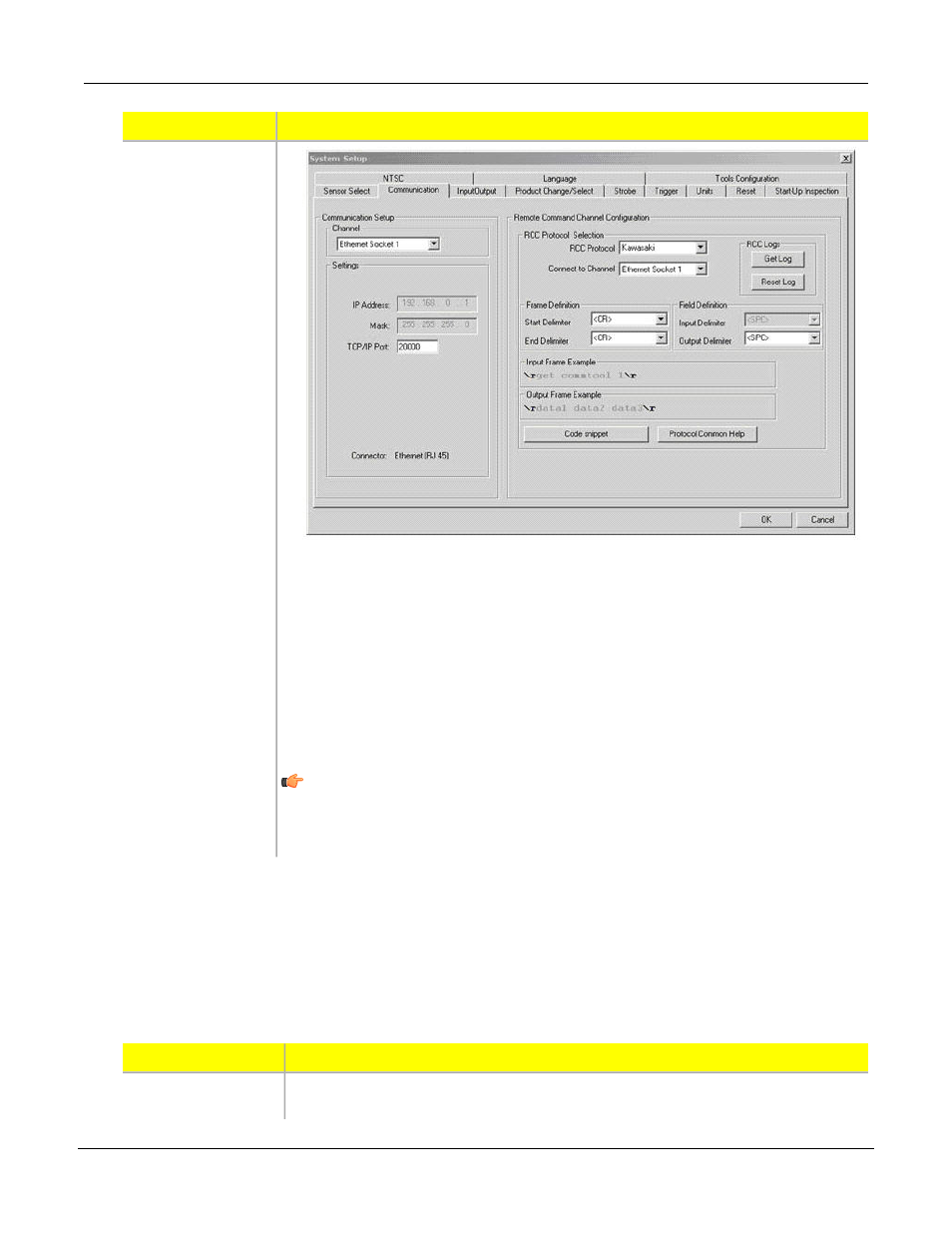

2. Click the OK button to accept the configuration.
Kawasaki Protocol Defaults
The default Kawasaki protocol configuration parameters are:
• Ethernet Socket 1 configured for TCP/IP Port 20000 as the communications channel
• No Frame Start (Command Start) delimiter
• Carriage Return/Line Feed as Frame End (Command End) delimiter
• Space as the input command field separator
• Comma as the output field separator.
Note: You can adjust each of these parameters as necessary, but corresponding
adjustments will have to be made to the sample AS Language program provided
to enable successful communication.
Creating the PresencePLUS Inspection
Main Tasks to Complete
Step 1
Enable the
Coordinate Tool in
1. Click the System button in the upper-right corner of the PresencePLUS GUI.
