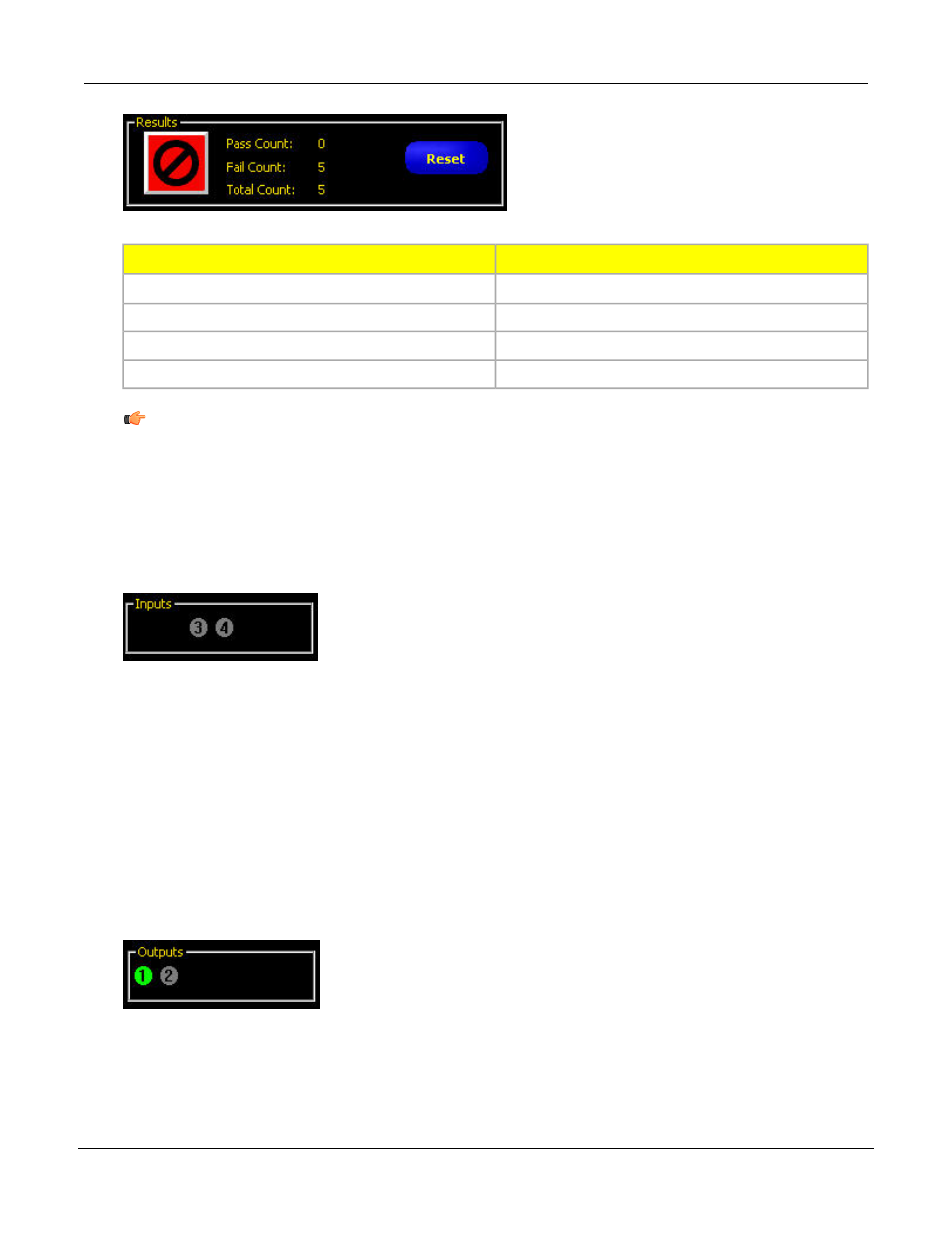

Description
Results Field
Number of passed inspections.
Pass Count
Number of failed inspections.
Fail Count
Total number of inspections.
Total Count
Clears teh counts for the selected inspection.
Reset Button
Note: Each of the stored inspections has its own Pass/Fail registers to store the Pass/Fail counts
for that particular inspection.
10.5 Inputs
Each numbered circle represents an input and its current state.
The legend below applies to the colored circles in the Inputs:
• Gray = Inactive (not currently available)
• Red = Active (not currently available)
• Not Visible = Not selected as input/output
10.6 Outputs
Each numbered circle represents an output and its current state.
The legend below applies to the colored circles in the outputs:
• Gray = Inactive (not currently available)
