2 sensor specifications, Power, 1 trigger in – Banner PresencePLUS P4 Series User Manual
Page 241: Discrete i/o, Output rating

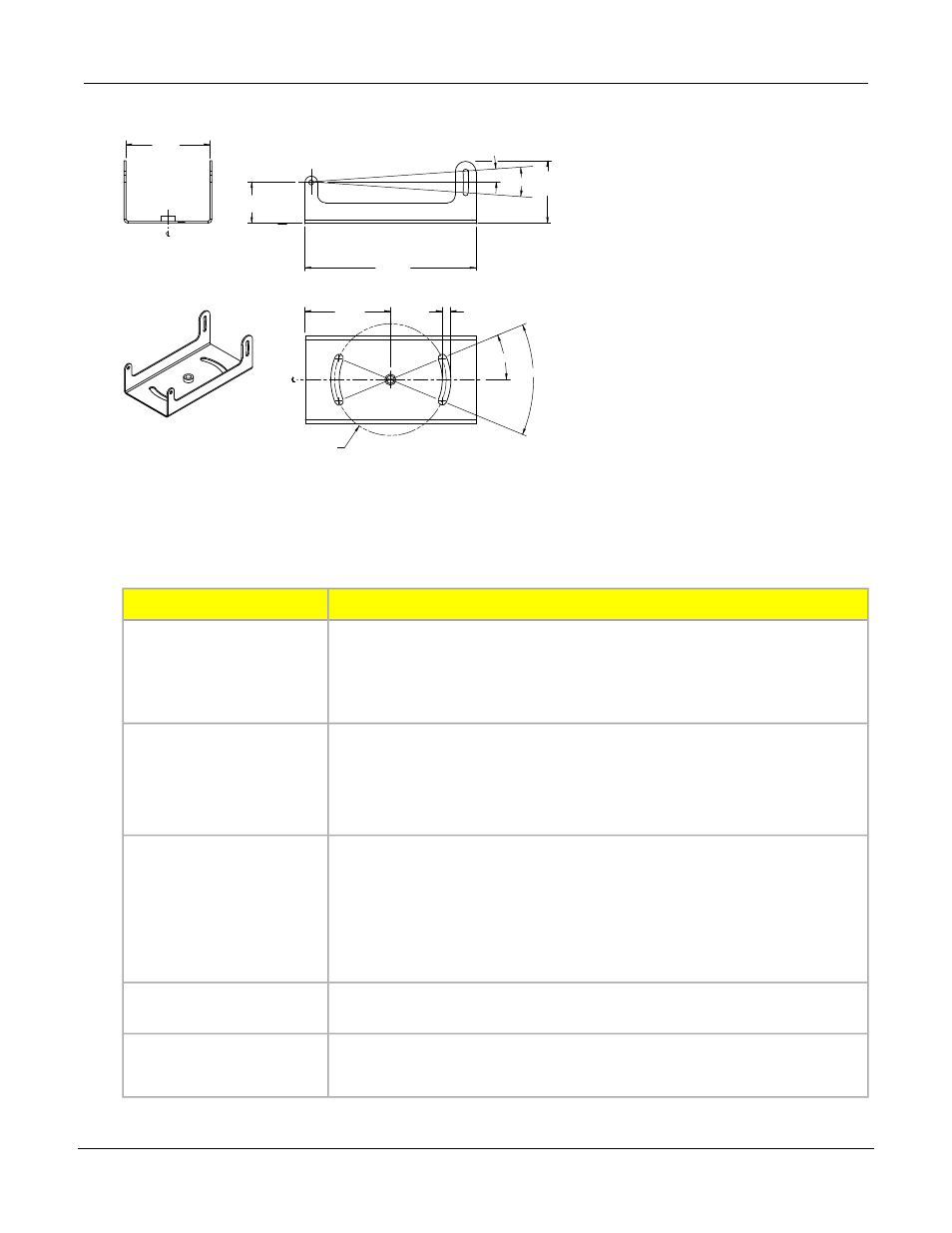

49.8 mm
(1.96")
66.9 mm
(2.64")
33.0 mm
(1.30")
dia. 88.9 mm
(3.50")
68.1 mm
(2.68")
6.8 mm
(0.27")
22.5˚
45˚
136.1 mm
(5.36")
4˚
8˚
ISOMETRIC VIEW
15.2 Sensor Specifications
Description
Feature
PresencePLUS P4 AREA Right-Angle Sensor: P4AR P4 AREA
In-Line Sensor: P4AI
PresencePLUS P4 AREA 1.3 Right-Angle Sensor: P4A1.3R P4 AREA 1.3
In-Line Sensor: P4A1.3I
Model Numbers
Voltage: 10-30V dc (24V dc ± 10% if a light source is powered by the
Sensor)
Current: P4 AREA: 500 mA maximum (exclusive of I/O load and lights)
Power
P4 AREA 1.3: 550 mA maximum (exclusive of I/O load and lights)
1 Trigger IN
1 Strobe OUT
Discrete I/O
4 Programmable I/O
1 Product Change
1 Remote Teach
NPN or PNP software selectable
Input/Output
Configuration
150 mA
ON-State Saturation Voltage: <1V at 150 mA max. NpN; >V ± 2V
Output Rating
241
Banner Engineering Corp. - Minneapolis, MN USA - www.bannerengineering.com
Tel: 763.544.3164
P/N 000000
Dimensions and Specifications
7/2009
