Page 14
Inspection-Specific Screens
Call the Help window or the About window.
Help

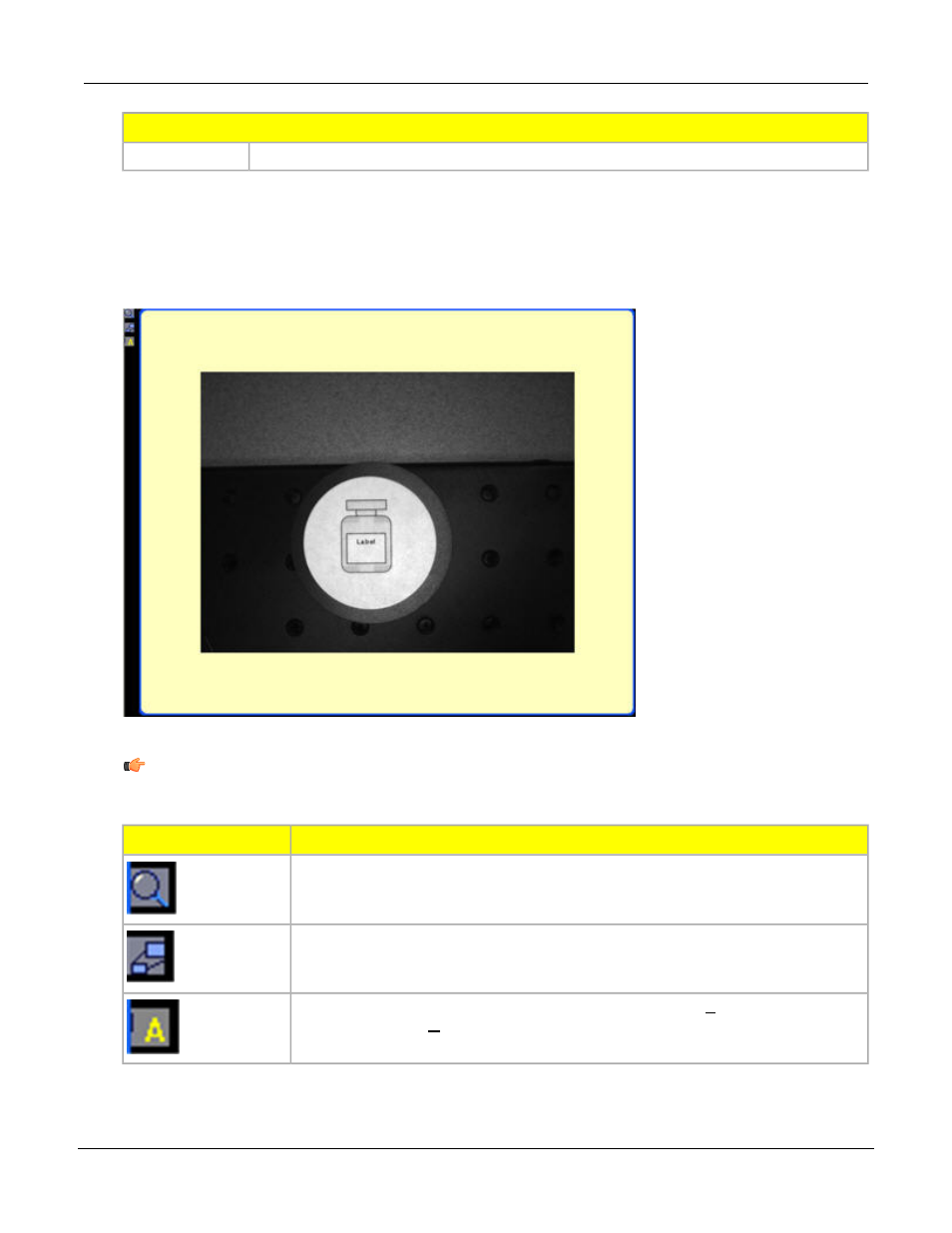

2.2.2 Image Window
The Image window, on the left side of the screen, displays images acquired from the camera or the reference
image that is set for the current inspection. The toolbar buttons in the Image window are explained below.
Note: The reference image is used as a template for developing an inspection; it establishes
the initial values for the Vision tools. The reference image also is used by Quick Teach.
Description
Icon
Zoom -- toggles zoom control. When enabled, click on the image window to zoom
in and right-click to zoom out. This button is active when an image is displayed in
the Image window.
Expand Image -- toggles the size of the Image window between maximum and
minimum.
Selected ROI / ALL ROIs -- toggles between the currently S elected Region of
Interest (ROI) and A ll ROIs.
P/N 000000
Banner Engineering Corp. - Minneapolis, MN USA - www.bannerengineering.com
Tel: 763.544.3164
14
7/2009
