Conventions of the measure tool – Banner PresencePLUS P4 Series User Manual
Page 147

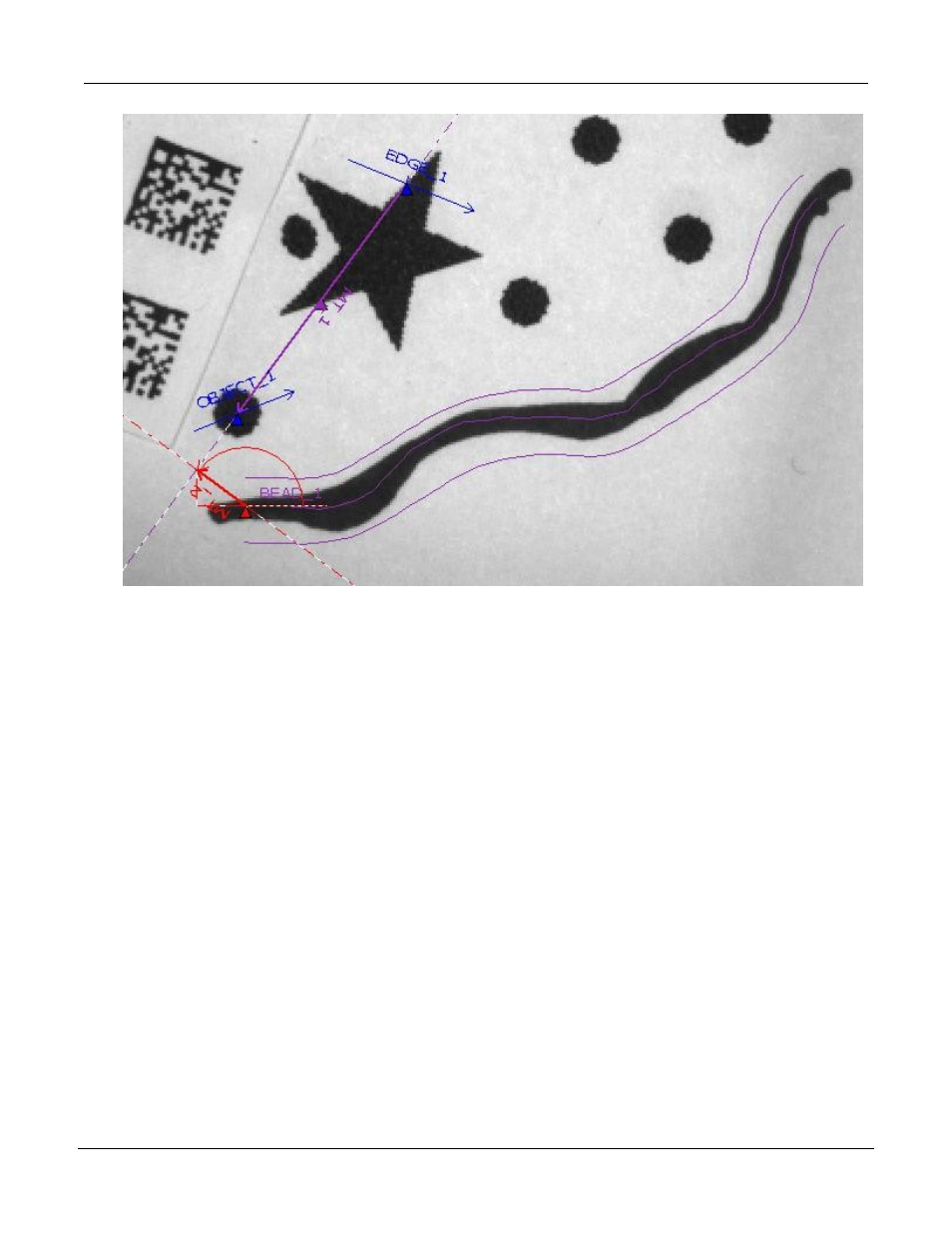

The tool returns the distance calculations for the X and Y component.
Additionally, the following results are generated in this operation:
• The line connecting the curve and the selected line
• The angle of that line (relative to the x-axis)
• The coordinates of the selected (farthest or closest) point on the curve
Conventions of the Measure Tool
The Measure tool reports an angle associated with every line it finds, according to the following conventions:
• For the line defined by two points, the tool measures the angle between the line and the horizontal
plane. The tool assigned a positive or negative value to the angle, depending on the line’s direction.
Angles are positive if measured clockwise and negative if measured counterclockwise.
147
