12.1.1 Product Select in One-Pulse Configuration
To use the product select option in the one-pulse configuration, follow these steps.
1. Select Hardware Input in the Select tab of the Run Screen.
2. Configure an I/O for Product Change in the System-Input/Output screen.
3. Set the Product Select Type to "One Pulse Set".
4. Assert the Product Change signal and then assert the number of pulse representing the inspection
number to go to. To do this the Product Change signal must be asserted and held while the pulses
representing the digit.
The selected inspection is displayed in the Product Select box in the Monitor under the Run screen.
Note: Note: If the GUI is connected to the sensor there must be an inspection running to perform
Product Change.
P/N 000000
Banner Engineering Corp. - Minneapolis, MN USA - www.bannerengineering.com
Tel: 763.544.3164
224
7/2009

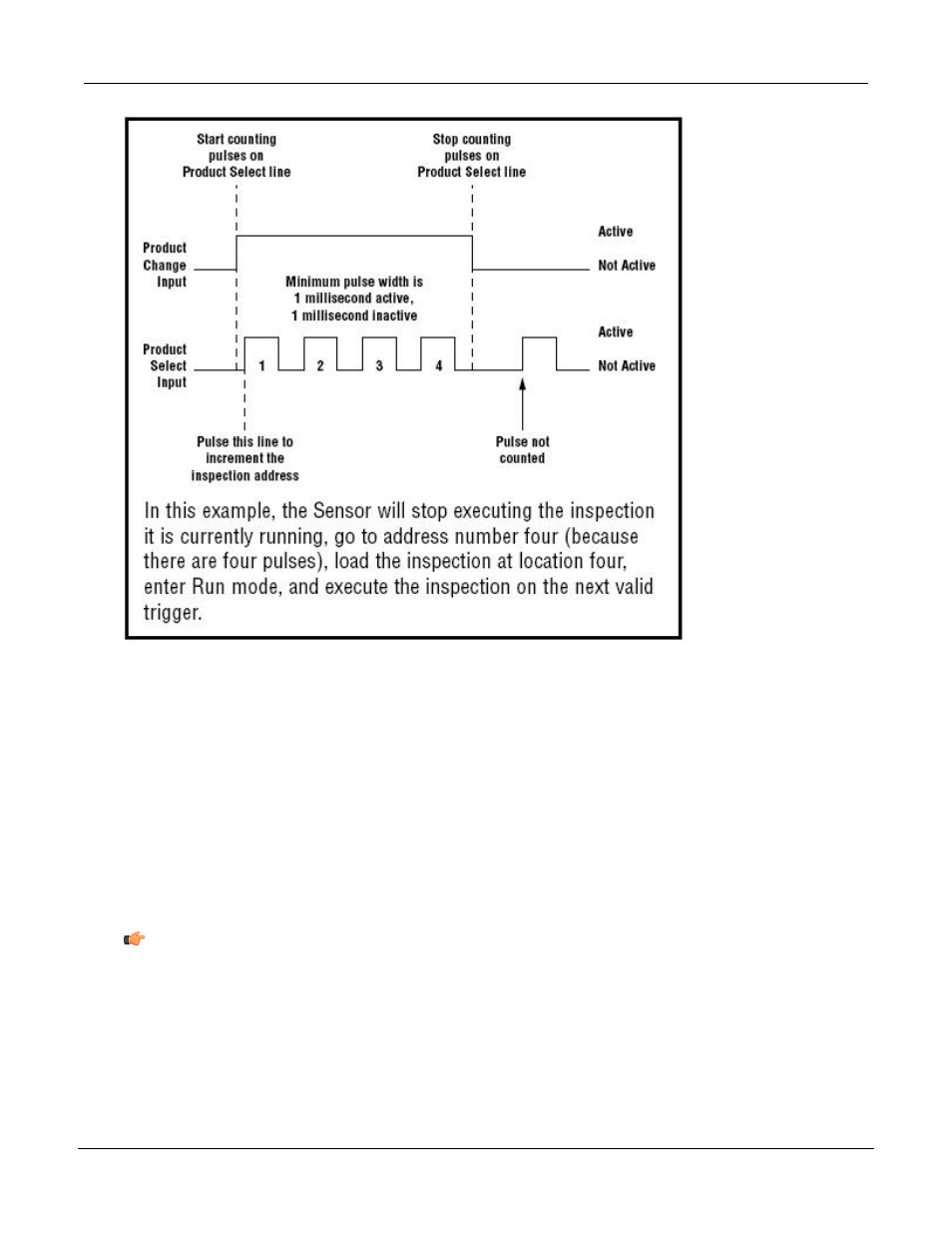

P4 Product Change and Product Select Timing
