Format

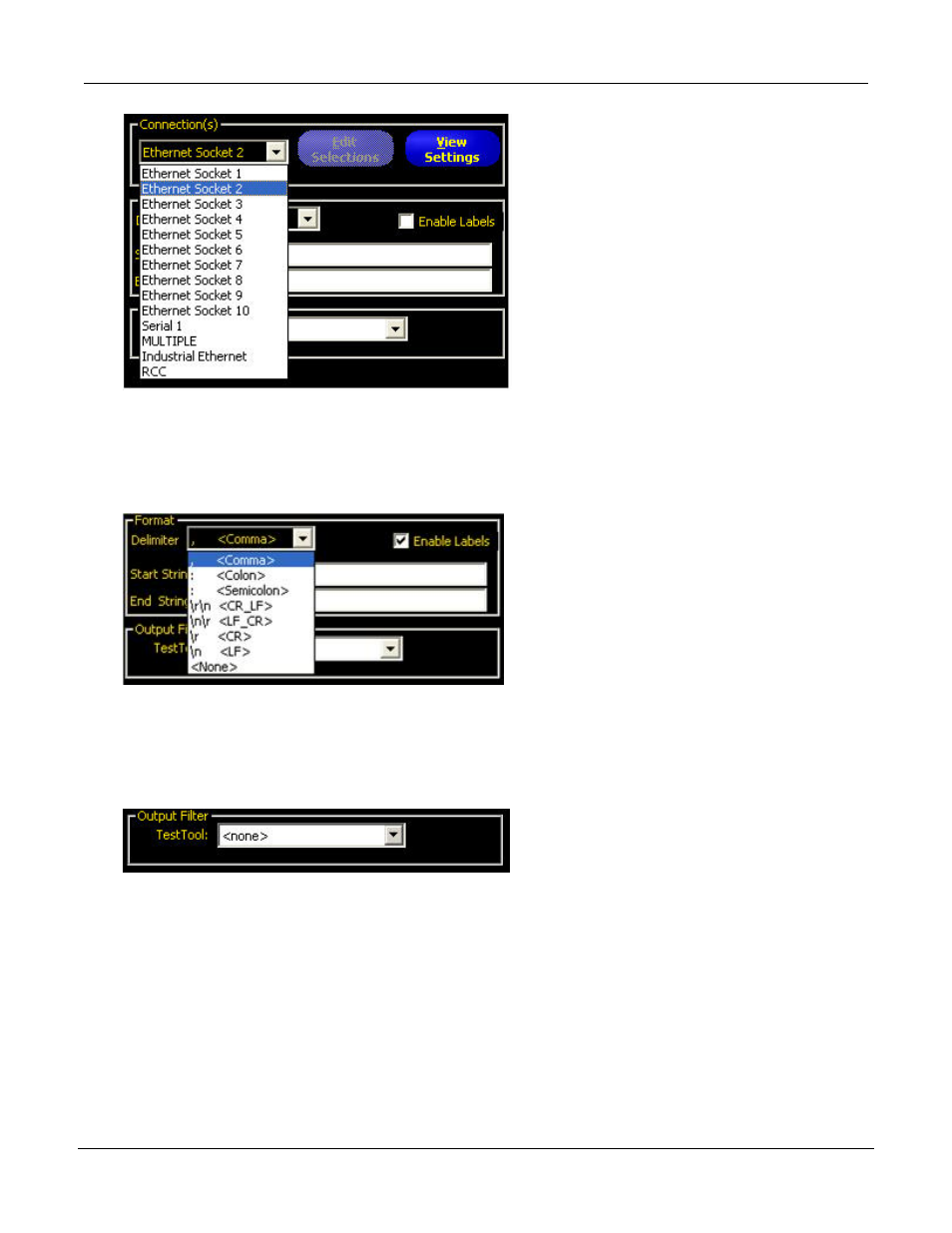

This field provides options for formatting the ASCII string of data that will be exported.
Output Filter
This field provides a means to make specific output selections in order to avoid unwanted output information.
Guidelines for Configuring the Communication Tool
There are four main steps in configuring the Communication tool:
1. Select the Vision tools and their results to export (in the Select field).
• When a tool is selected, the selected tool’s tab appears in the Configuration window.
• Click on the tab to select the data to be exported.
2. Select the communication connection(s) that will export the data (in the Connection field).
