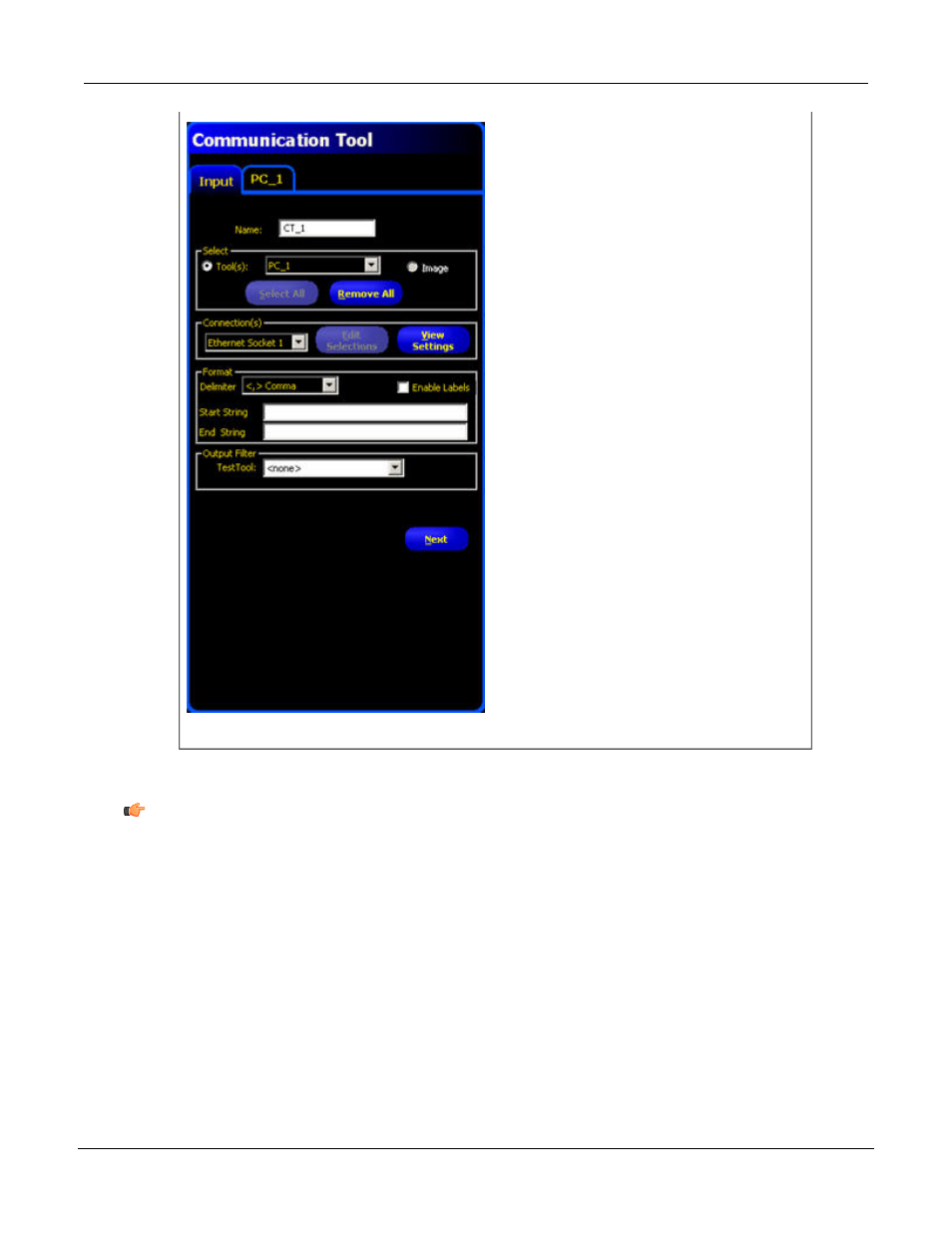

Adding a Communication Tool
Important: Add the Communication tool after the Vision tools that have data to be exported.
The Communication tool can export results data from the first Location, Vision, Analysis, and Test tools as
follows:
• In the sequence that the tools are selected within the Communication tool.
• In the sequence that the options are listed within the tools for export
One inspection can have more than one Communication tool.
Use one Communication tool to:
• Export data out of one port (serial or Ethernet).
• Export identical data out of multiple ports at the same time.
Use multiple Communication tools to:
• Separate the data and export separate segments to unique external devices.
