Rockwell Automation 2706-MB1 MESSAGEVIEW 421 SOFTWARE MANUAL User Manual
Page 136
7–15
Creating Messages
Publication 2706-817
Colors
Flashing Text defaults to blue in the Message Edit box, and
Embedded Text to red. Embedded text includes variables and
graphics. Inverse Video appears with black and white inverted, so it
does not need a special color to emphasize it.

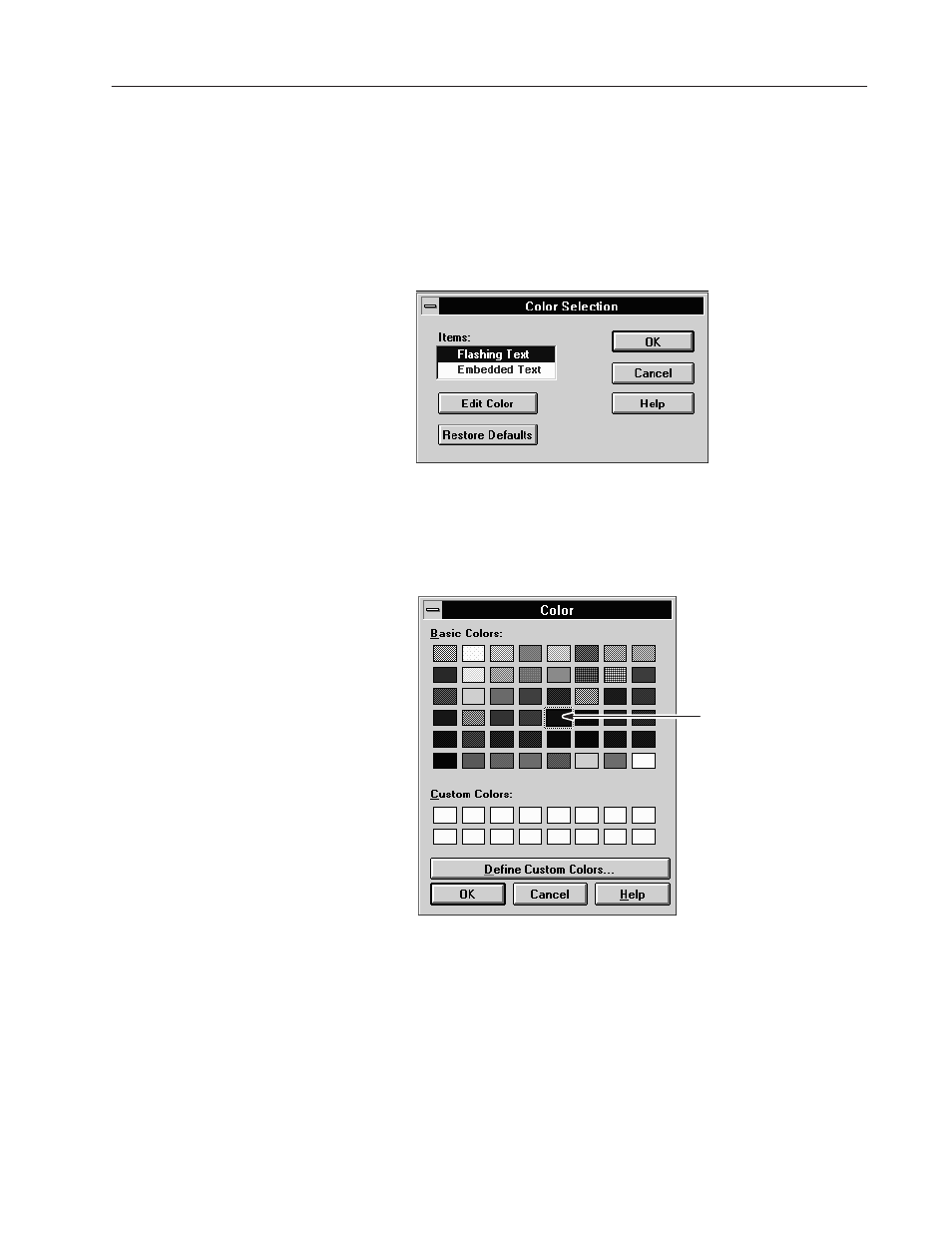

When you select this option, the Color Selection box is displayed:
1. Select the type of text whose color you would like to change.
2. Select the Edit Color button. The Color dialog appears with the
current color selected.
Selected color
3. If you prefer to create a custom color, select the Define Custom
Colors button, and a color mixing dialog appears:
