152 Rockwell Automation Publication 2711PC-UM002B-EN-P - April 2014
Chapter 8 Troubleshooting
Access Maintenance Operations
Follow these steps to access Maintenance actions at startup.

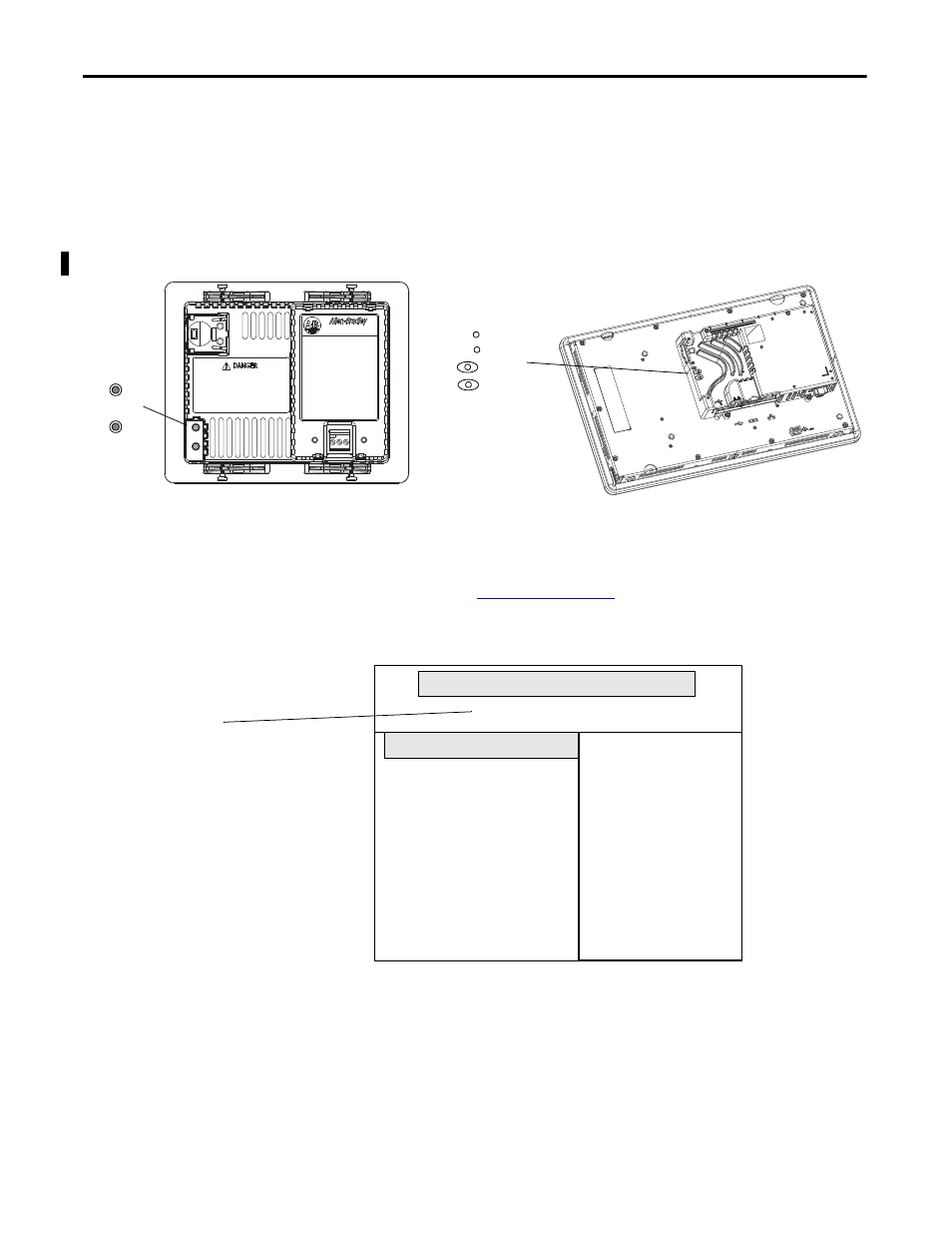

1. Insert a thin, nonconductive probe into the hole marked DEFAULT on
the back of the logic module and press the switch.
The terminal restarts in Maintenance mode with the display brightness set
to 100%. See
Table 60 on page 151 for a description of maintenance
operations.
2. Press the up and down arrow keys on the keypad or attached keyboard to
move up and down the list of these maintenance options:
• Reboot with selection options
• Special BOOT Action
TIP Terminals require an attached USB keyboard to navigate in Maintenance mode.
FAULT
COMM
DEFAULT
RESET
FA UL
T
COMM
FAULT
DEFAUL T
RESET
RESET
DEFAULT
COMM
FAULT
DEFAULT
RESET
TIP To access this menu from a fault state, press the RESET switch, then
press and hold the DEFAULT switch until you see the menu.
Initial Maintenance Window
default button pressed, please select maintenance options
Maintenance Menu -- ver 0x.xx
Special BOOT Action - None
Reboot with selected options Continue with this system
boot.
This option will continue
booting with the options
selected on the left.
- IMPORTANT----------------------
USB keyboard required!
Press the RESET switch to
ignore changes and continue
system boot.
The version refers to the
boot loader.
TIP Use the keys at the bottom of the window to make selections.
