Rockwell Automation Publication 2711PC-UM002B-EN-P - April 2014 13
Overview Chapter 1
Terminal Features The PanelView Plus 6 Compact 400, 600, and 1000 terminals are fixed
configurations that do not support modular components.
8
9
10
12
11
5 7 6
3
2
4
1
1
1

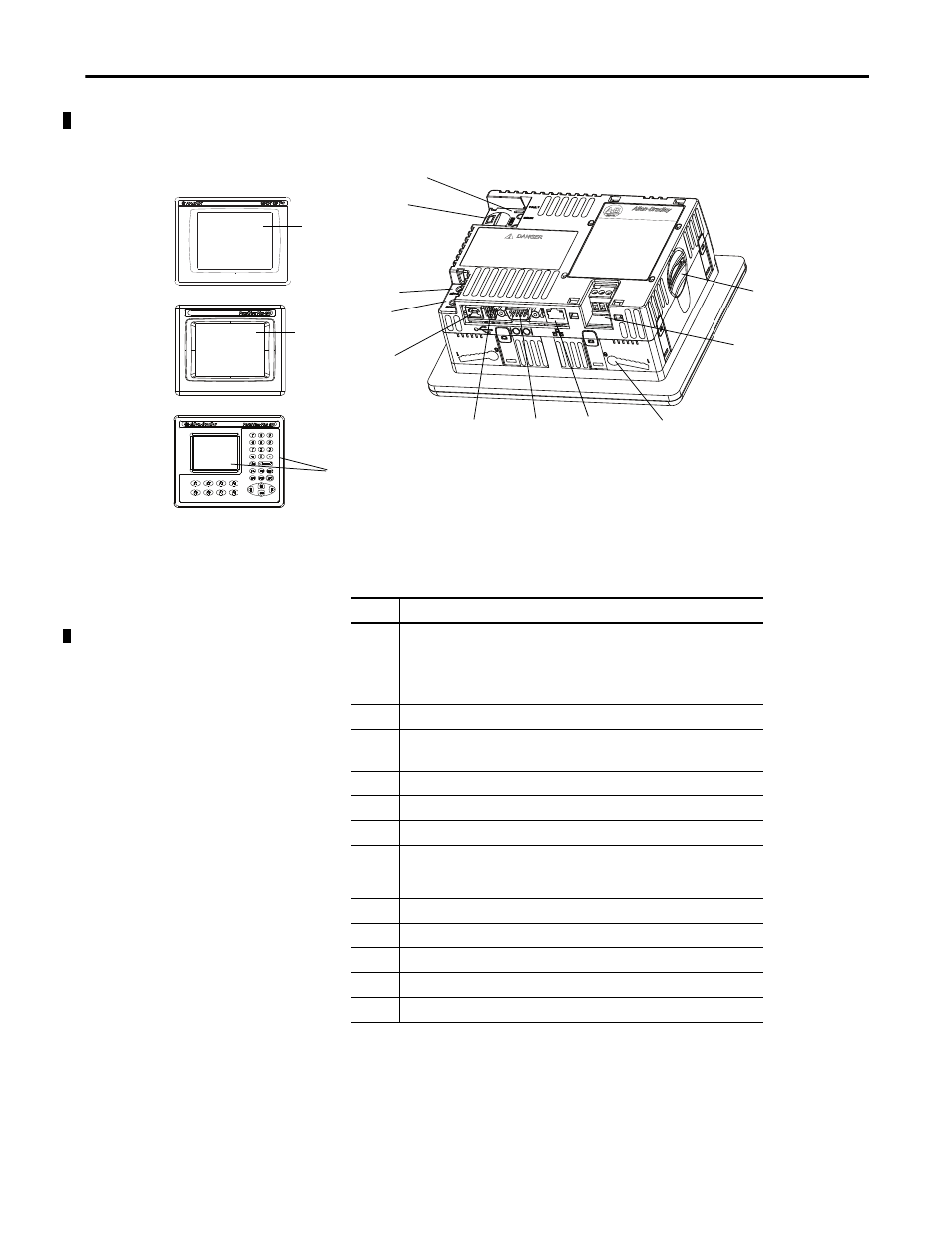

Table 3 - PanelView Plus 6 Compact Terminal Components
Item Component
1
3.5, 5.7, or 10.4-in. grayscale or color display with one of these operator input
options:
• Keypad
• Touch screen
• Combination keypad and touch screen
2 Secure Digital (SD) card slot for external storage
3
DC power input, non-isolated
24V DC nom (18…30V DC)
4 Mounting slots (four)
5 Ethernet port for controller communication, 10/100Base-T, Auto MDI/MDI-X
6 RS-232 serial port for controller communication, printing, or file transfers
7
One USB 2.0 high-speed (type A) host port for attaching USB peripherals including
mouse, keyboard, printer, and USB drives that are hot-swappable in nonhazardous
locations
8 One USB 2.0 high-speed (type B) device port for connecting a host computer
9 Reset switch to reset the terminal without having to power off and on
10 Default switch to access maintenance operations such as restoring factory defaults
11 Battery compartment
12 Indicators provide communication and fault status
