Rockwell Automation 2711PC-xxxx PanelView Plus 6 Compact Terminals User Manual User Manual
Page 102

102
Rockwell Automation Publication 2711PC-UM002B-EN-P - April 2014
Chapter 4
Windows CE Operating System

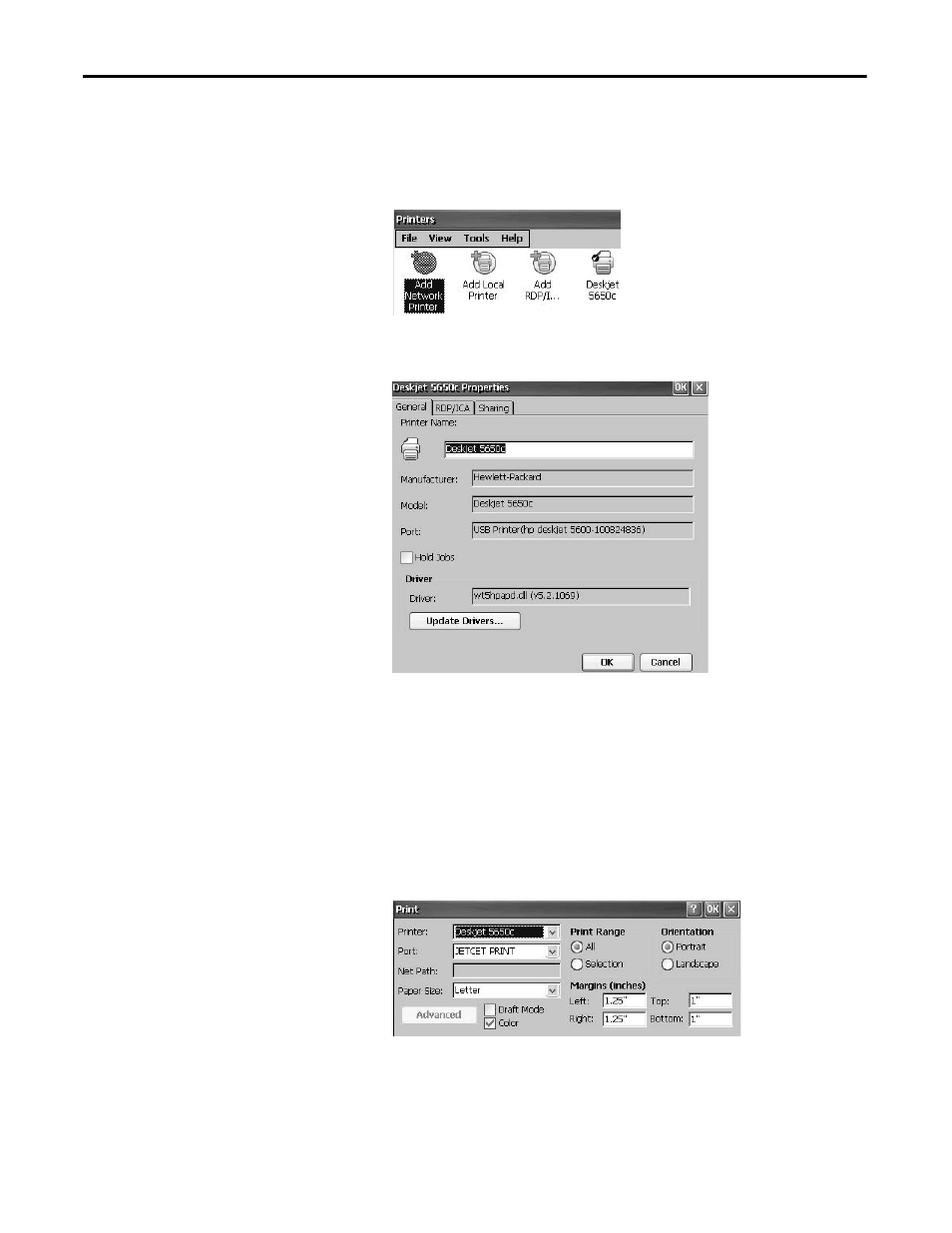

3. Verify printer installation from the desktop control panel by opening
Printers.
Notice the icon for the Deskjet 5650C printer. The check mark indicates
this is the default printer.
4. From the File menu, choose Properties to view the properties of the
printer.
Printer configuration includes the printer name, manufacturer and model,
printer driver, and port-specific parameters.
5. Right-click the printer and print a test page to verify installation.
When printing from an application such as WordPad, a Print dialog box opens
where you can adjust print settings as needed.
TIP
•
New printer configurations are retained through a power cycle.
•
Printers set up through the desktop control panel are also available within
FactoryTalk View ME Station Configuration mode by pressing Terminal
Settings>Print Setup.
