112 Rockwell Automation Publication 2711PC-UM002B-EN-P - April 2014
Chapter 5 Install and Replace Components

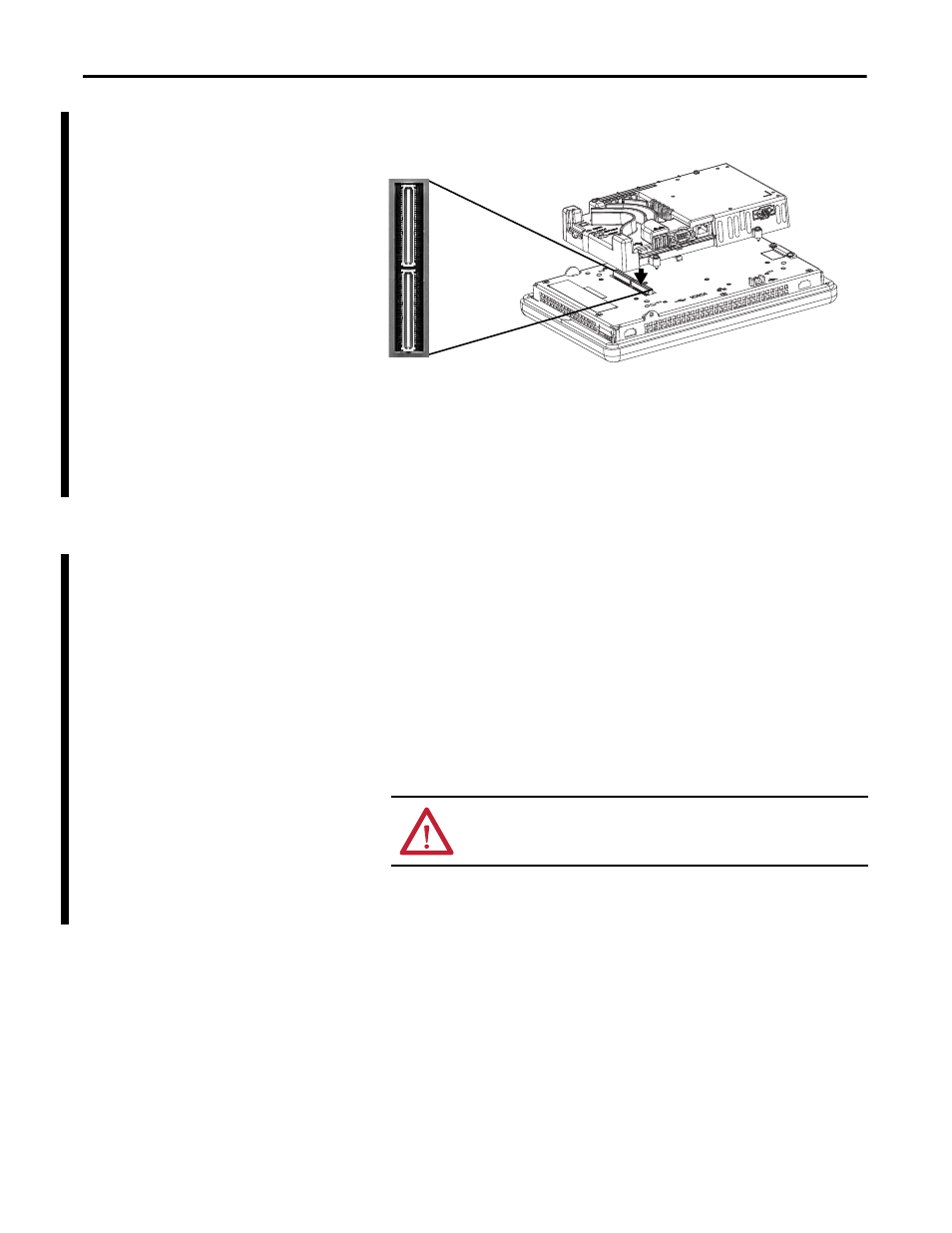

7. Position the logic module over the new display module so that the
connectors align.
8. Push down on the logic module until firmly seated.
9. Tighten the four captive secures that secure the logic module to the display
module and torque to 0.58 N•m (5…7 lb•in).
10. If necessary, attach the communication module and torque the four screws
to 0.58 N•m (5…7 lb•in).
Replace the Bezel You can replace the bezel on the 1000 terminals. It is not necessary to remove the
logic module or communication module before removing the bezel, except on
the 700 terminal.
Remove the Display Module Bezel
Follow these steps to remove the display module bezel.
1. Disconnect power from the terminal.
2. Set the terminal, display side down, on a flat stable surface.
3. On touch-screen only terminals, remove the two screws that secure the
small metal plate to the back of the display module.
ATTENTION: Wear a properly grounded ESD wristband before touching
any of the electronic components in the logic module.
