Publication 2705-UM001A-EN-P
1-2 Overview of RediSTATION
Description The Bulletin 2705 RediStation is a 3-button station that operates on the
DeviceNet network. The station receives power from the DeviceNet
network. A separate power supply is not required.
The station supports three 800T devices in a standard or custom
configuration. The standard unit includes two push buttons and one
pilot light that are prewired for easy installation. Custom
configurations support a variety of 800T devices that are prewired or
customer installed.
The die cast enclosure of the standard unit complies with NEMA Type
4/12/13 standards for operation in rugged industrial environments.
Summary of Features
•
Standard or custom configurations
•
Surface mounting device
•
NEMA Type 4/12/13 die cast enclosure
•
Easy installation and startup
•
DeviceNet compatibility
•
Powered by DeviceNet connection (no power supply required)
•
Mod/Net Status LED provides indication of network and device operation

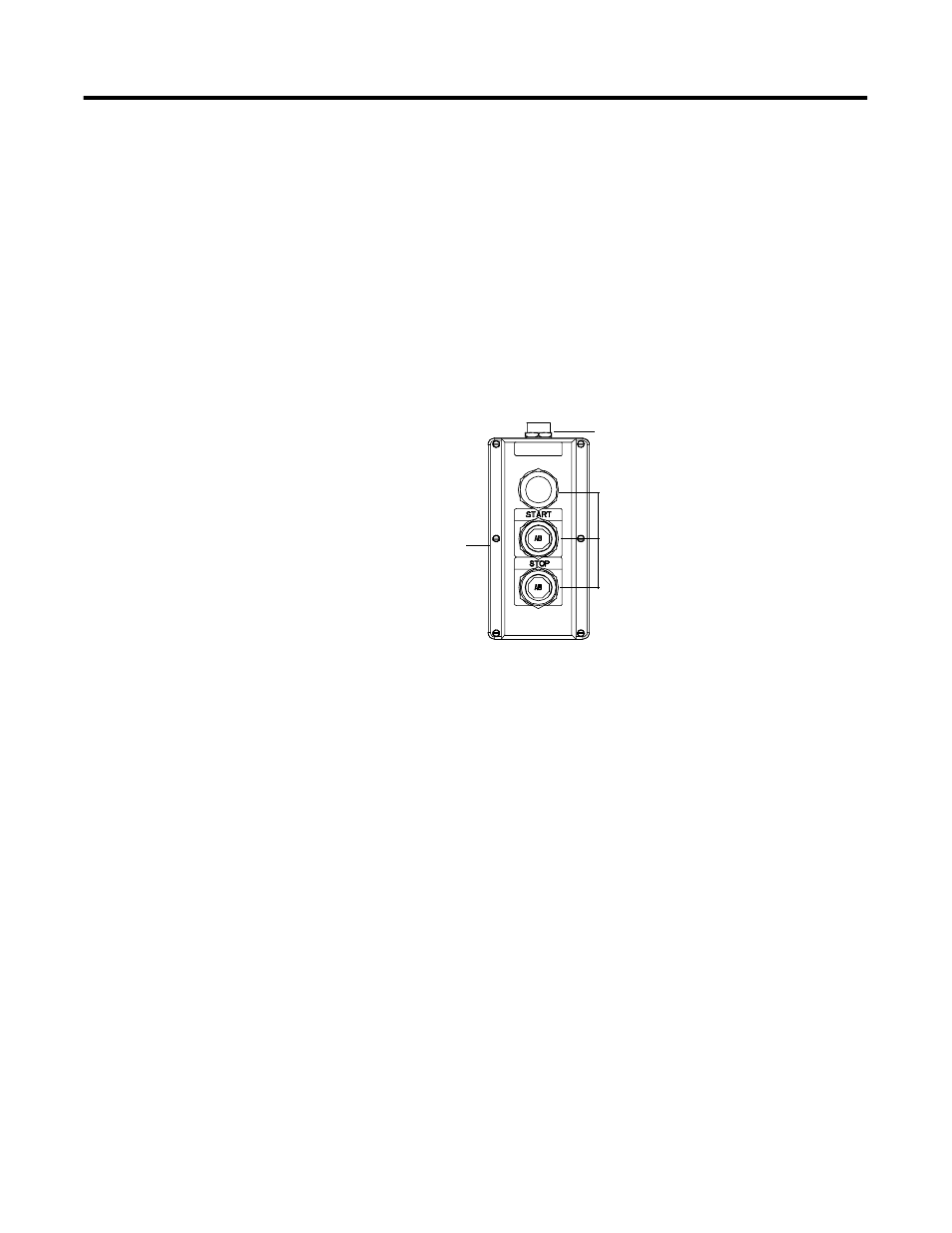

Die Cast Enclosure Three 800T Devices
DeviceNet Connector
