Installation and Mounting 2-7
Mounting the RediSTATION The RediSTATION mounts on a flat surface. The back of the unit has
4 holes that accept a 10-32 (5mm) screw. To maintain a watertight
seal, use sealing grommets with screws. The screw length must be 1/2
inch (12.7 mm) plus the depth of the material into which the screw is
mounted. The head of the screws must be 3/8 inch or less to fit in the
sealed mounting holes.
For proper grounding, mount the enclosure to a grounded metal
plate. Scrape the paint around the screw holes of the enclosure and
plate to ensure good metal-to-metal contact.
Allow a clearance of at least 3 inches (76.2 mm) at the top of the
enclosure for connecting the DeviceNet cable.

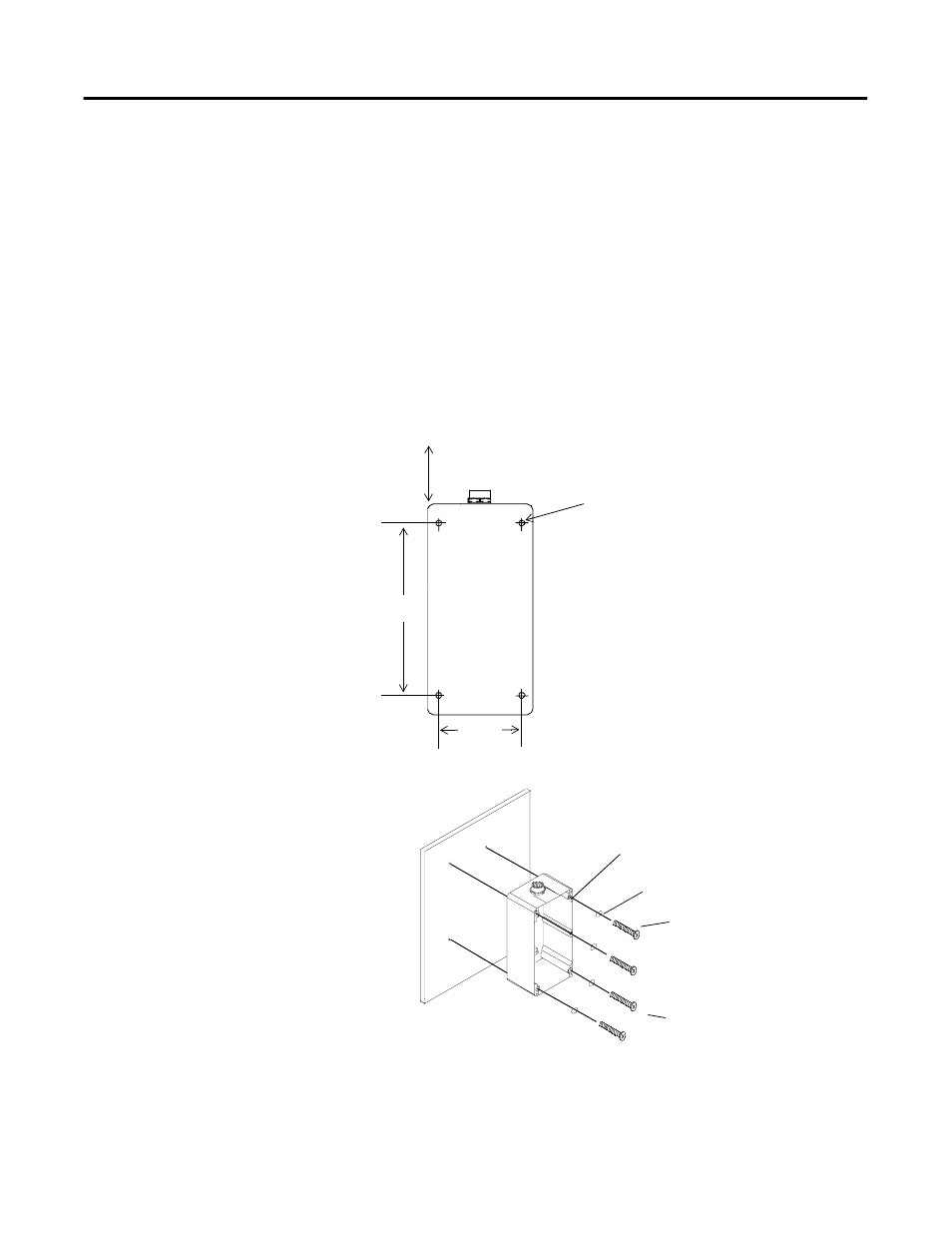

6.25 inch
(158.7 mm)
Allow 3-inch clearance
for DeviceNet cable
4 Holes
.203 inch
(5.2 mm) diameter
3.00 inch
(76.2 mm)
RediSTATION
Back Side
10-32 (5mm) screws
Sealing Grommets
Heads of screws must be smaller
than 3/8 inch to fit inside mounting
Sealed Mounting Hole
