Publication 2705-UM001A-EN-P

User Configuration C-5

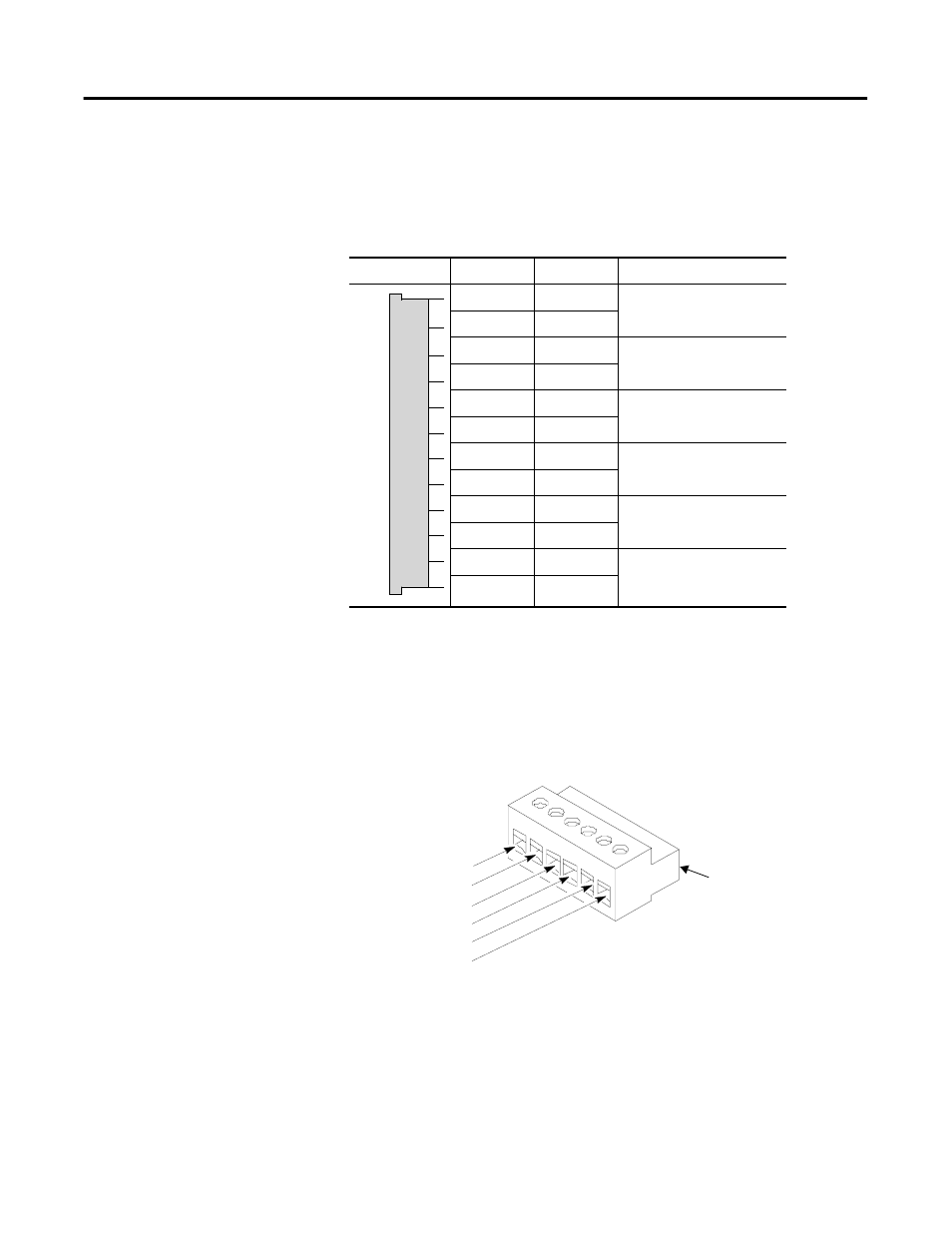

To simplify wiring, input devices and output devices attach to
opposite ends of the I/O connector. The following table defines pin
functions on the I/O connector. Output devices connect to pins 1-2
and 3-4. Input devices connect to pins 5-6, 7-8, 9-10 and 11-12.
Unused pins are left open.

2. Mount the circuit board using the spacers and mounting screws

provided. Tighten circuit board mounting screws to 14 in–lbs.

3. Attach the 6 DeviceNet cable leads to the DeviceNet removable

terminal block connector.

Page 1-7 provides a description of the DeviceNet connections.

I/O Connector Pin #

Pin Label

Function

1

OUT1+

Connects Output Device

2

OUT1-

3

OUT2+

Connects Output Device

4

OUT2-

5

IN4+

Connects Input Device

6

IN4-

7

IN3+

Connects Input Device

8

IN3-

9

IN2+

Connects Input Device

10

IN2-

11

IN1+

Connects Input Device

12

IN1-

Removable Terminal
Block Connector

Pin 1

Pin 6

Common

CAN Low

Shield

CAN High

VDC+

E GND
