1-8 Overview of RediSTATION
Typical DeviceNet
Configuration A DeviceNet network supports multiple RediSTATION devices and
allows them to communicate with other network devices (up to 64).
The RediSTATION operates on the network as a slave device. It does
not initiate communications except for a duplicate node address
check on powerup. The master reads inputs from RediSTATION input
devices and writes data to the output devices.

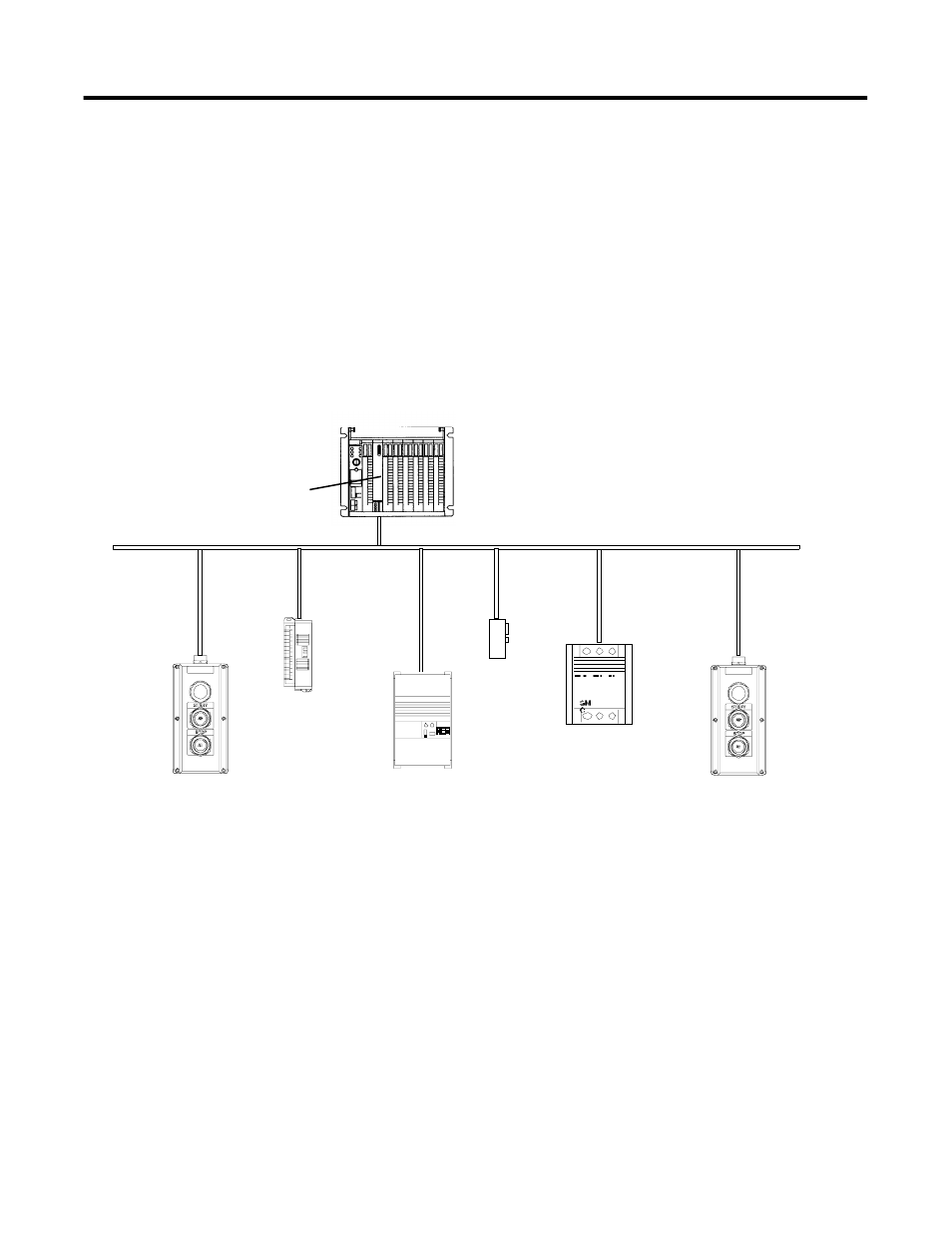

The following DeviceNet configuration shows a variety of sensors
operating as slaves to a PLC-5 controller with a 1771-SDN DeviceNet
Scanner Module.
DeviceNet Network
Smart Motor Controller
RediSTATION RediSTATION
Block I/O
Sensor
Drive
DeviceNet Scanner Module
PLC-5 Controller
