4-4 Troubleshooting and Maintenance

7. Mount the circuit board to the back of the 800T devices with the

DeviceNet terminal block oriented toward sealed connector/
conduit hole of enclosure. Use the 2 screws and plastic spacers.
Tighten circuit board mounting screws to 14 in-lbs.

8. Connect the 800T device terminals to the I/O connector using an

I/O cable. An I/O cable consists of a twisted wire pair. Each set
of contacts or pilot light connects to an I/O cable. See page 1-6
for a description of the I/O connector.

9. Plug the DeviceNet terminal block connector into the circuit

board.

10. Secure cover with the 6 mounting screws. Tighten screws to

20-in lbs.

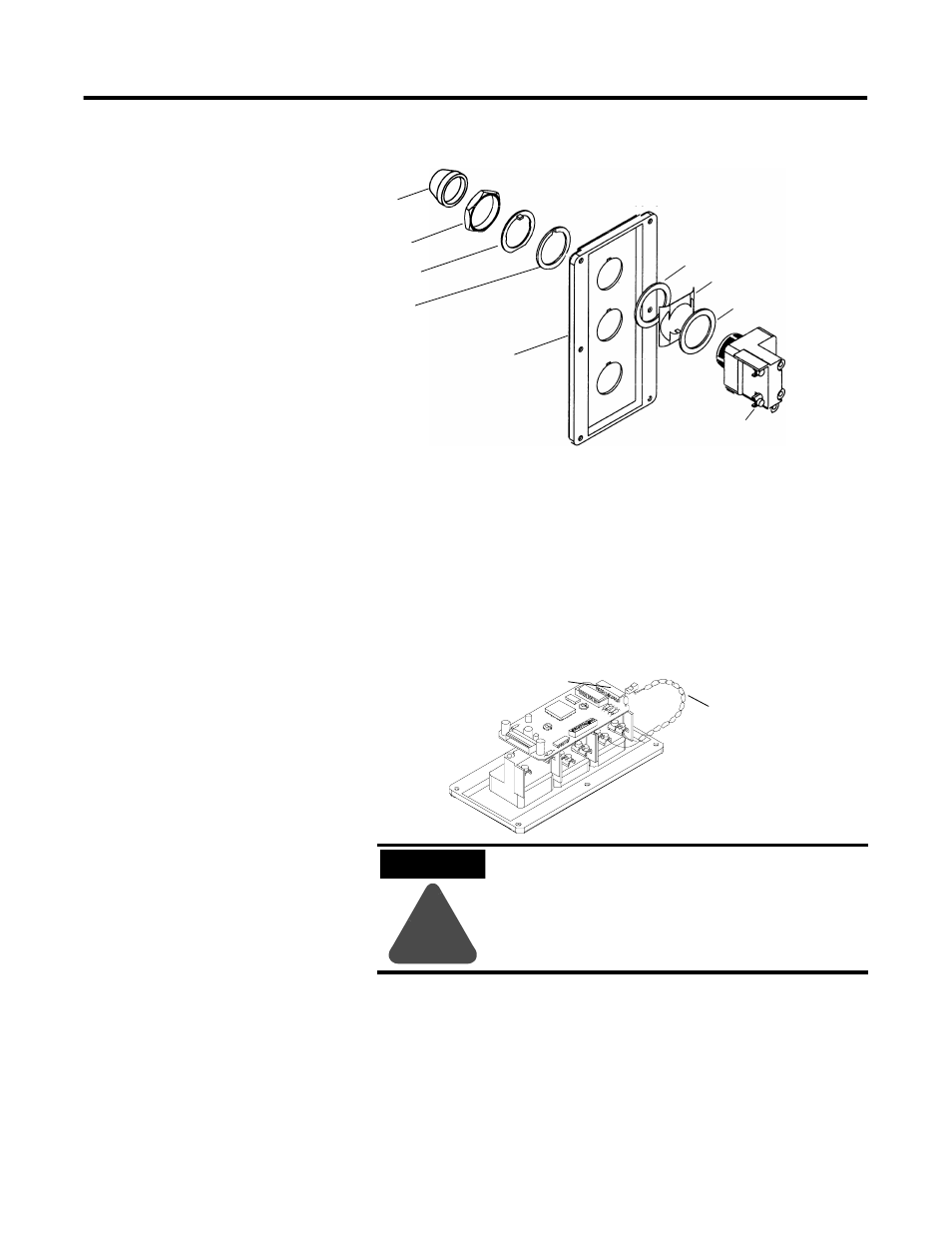

Lamp Reflector
(Lamps only)

Locknut

Thrust Washer

Trim Washer

or Legend Plate

Cover

with Gasket

Gasket

Bonding Spring

Gasket

Orient device connection

terminals as shown above.

ATTENTION

Do not connect I/O pins to external devices or
control circuits. Connecting pins to these
devices will damage the circuit board.

I/O Cable

I/O Connector
