Publication 2705-UM001A-EN-P
C-4 User Configuration

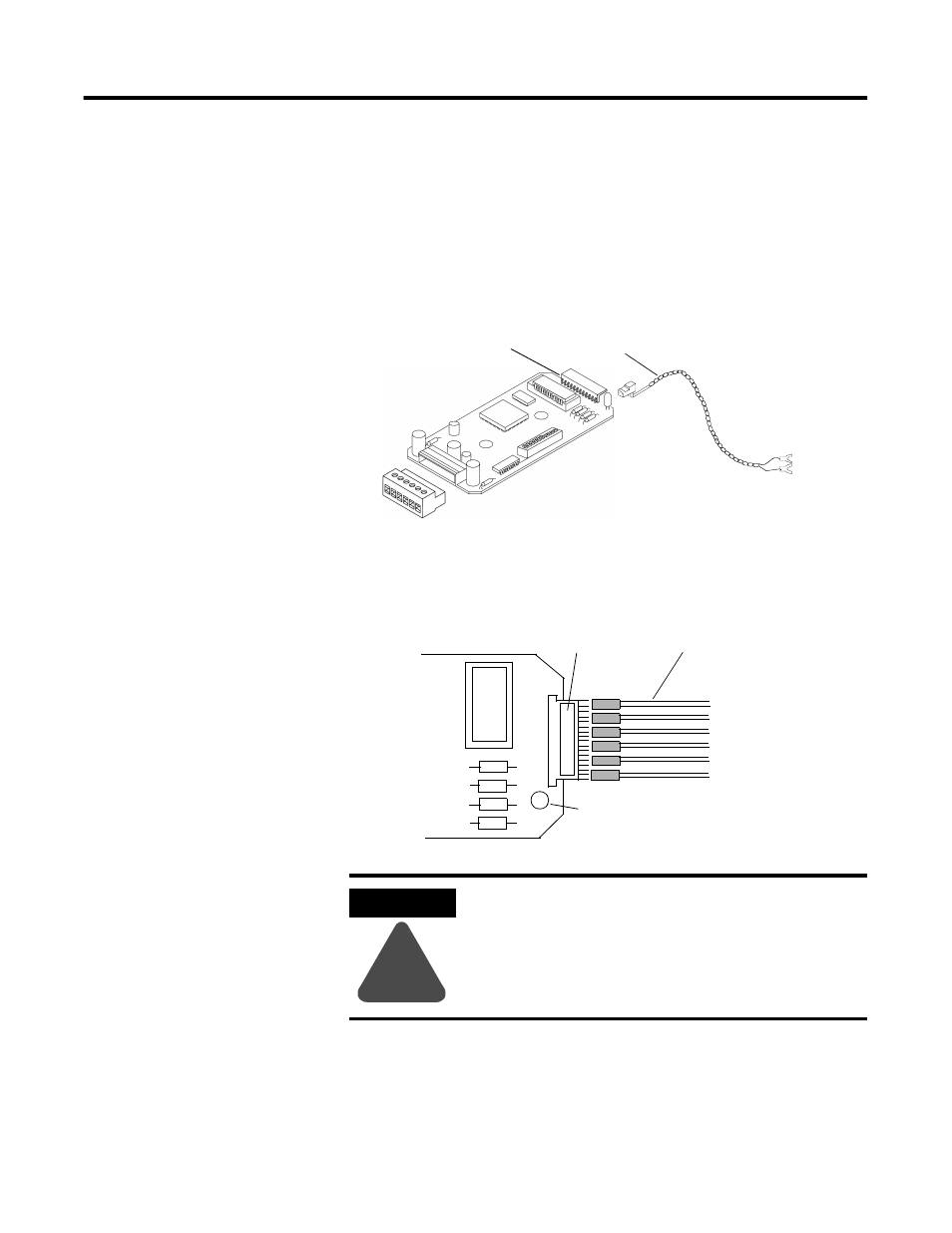

Connecting Devices This section shows how to connect devices to the DeviceNet Interface
Board and connect the DeviceNet cable to the DeviceNet terminal
block connector.
To install devices:
1. Connect the device terminals to the I/O connector using the I/O
cables. An I/O cable consists of a twisted (red/black) wire pair.
Each set of contacts or pilot light connects to an I/O cable.
Every 2 consecutive pins on the I/O connector connects to an
I/O cable connector. The I/O connector supports 2 outputs and
4 inputs.
ATTENTION
!
Do not connect I/O pins to standard control
voltages. See page C-2 for maximum input voltages.
I/O pins are not electrically isolated from the
DeviceNet circuitry.
I/O Connector I/O Cable
To Device
Terminals
I/O Cable (up to 6) I/O Connector
To Output (Pilot Light)
To Output (Pilot Light)
To Input (Contact)
To Input (Contact)
To Input (Contact)
To Input (Contact)
Circuit
Board
LED
