Connecting to the devicenet network, Connecting to the devicenet network -9 – Rockwell Automation 2705 RediSTATION Operator Interface User Manual User Manual
Page 25
Publication 2705-UM001A-EN-P
Installation and Mounting 2-9
Connecting to the
DeviceNet Network
On standard units with the sealed connector, it is not necessary to
disconnect incoming power from DeviceNet network before
connecting the RediStation. The DeviceNet cable connects directly to
the connector on the top of the enclosure or through the conduit
opening.
Important: When connecting conduit to the enclosure, use UL listed
or recognized conduit hubs with the same environmental rating as the
enclosure.

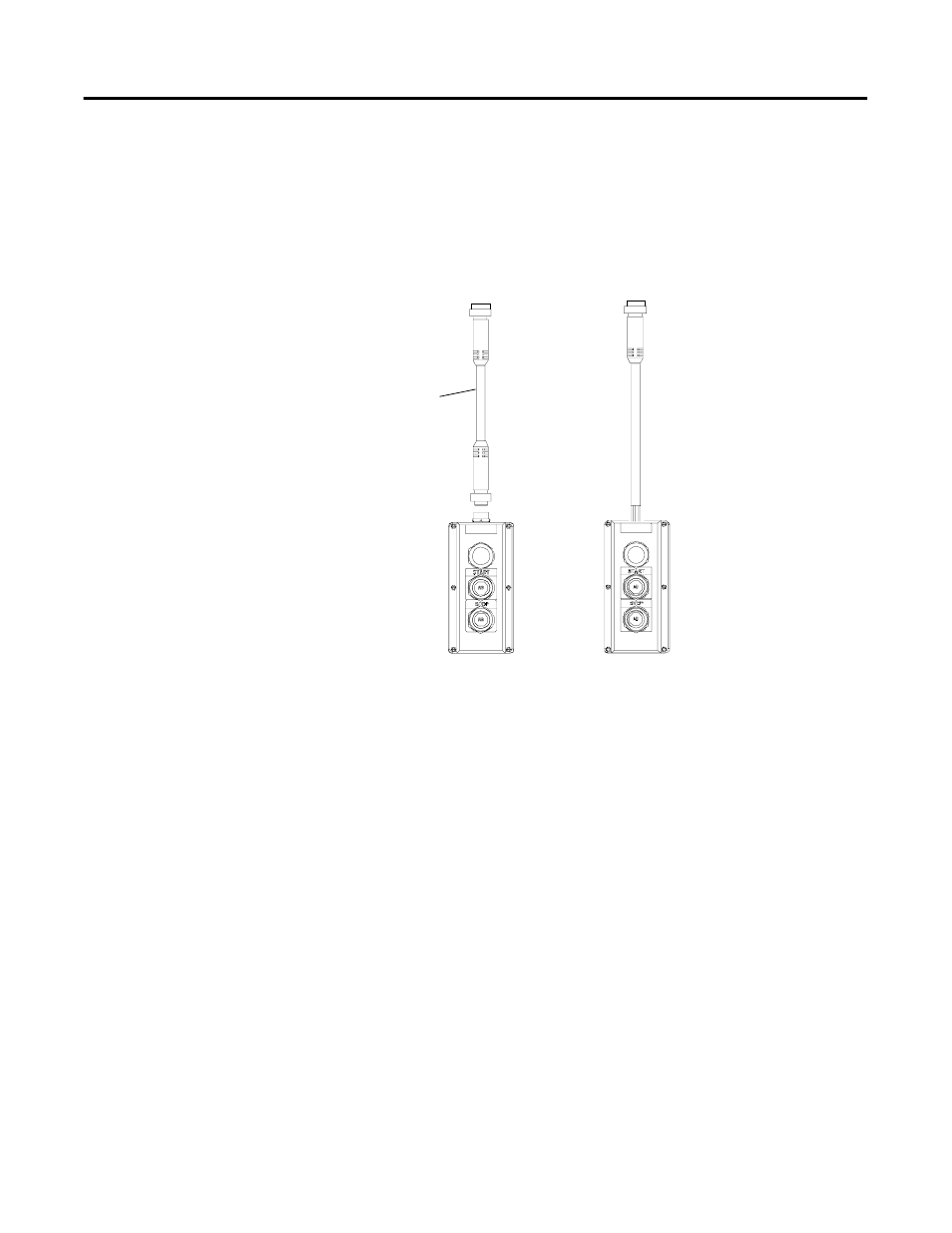

DeviceNet
Cable
DeviceNet cable wires connect
to terminal block through the
conduit opening. Hole requires
sealed fitting to maintain NEMA
Type 4 environmental rating.
