Rockwell Automation 2705 RediSTATION Operator Interface User Manual User Manual
Page 42
Publication 2705-UM001A-EN-P
5-6 Building a Custom RediSTATION

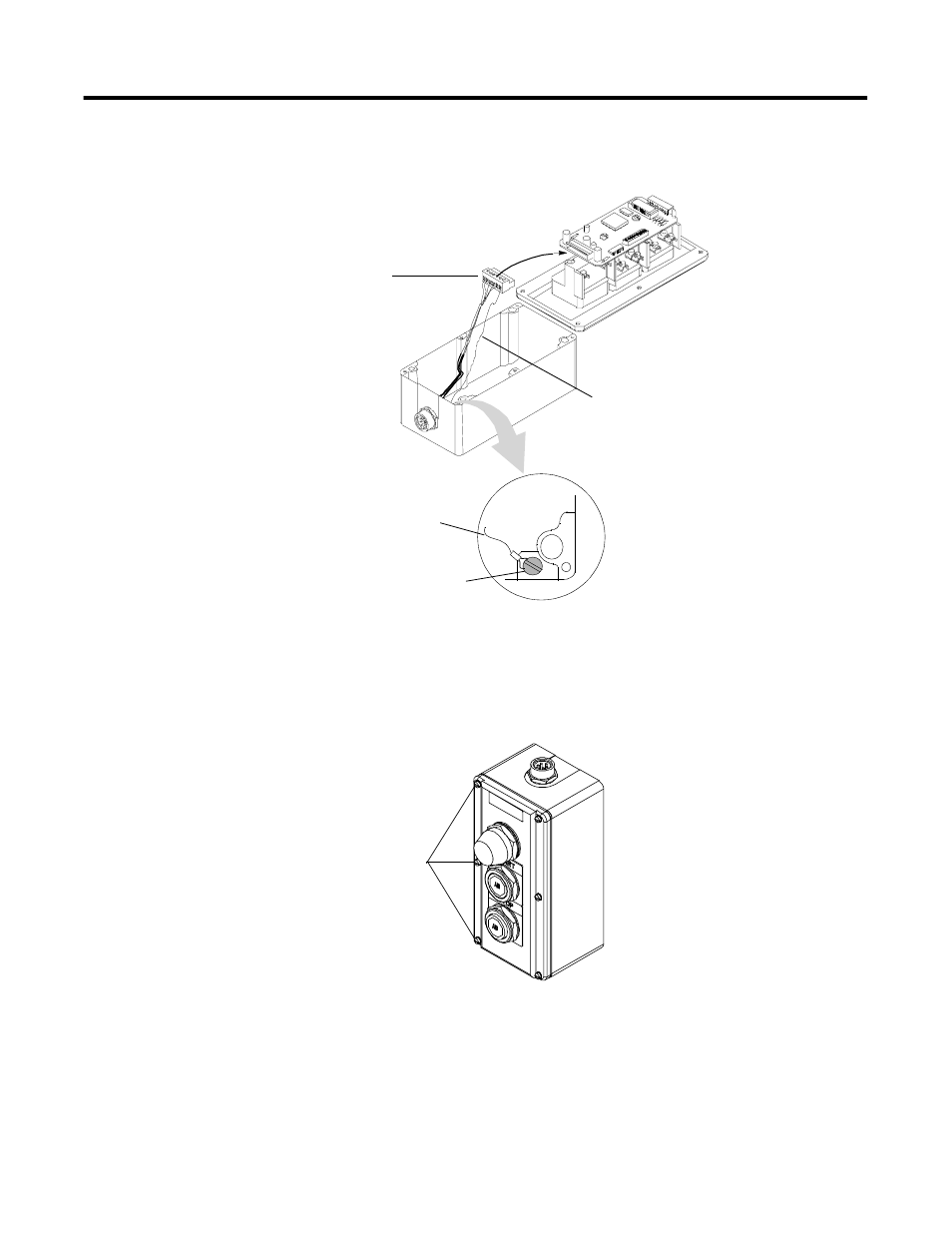

5. Plug the DeviceNet terminal block connector into the circuit
board.
6. Connect ground wire (E GND) to enclosure ground screw.
7. Secure the cover with the 6 mounting screws. Tighten screws to
20-in lbs.
Plug Connector
into Circuit Board
Removable Terminal
Block Connector
Ground Wire (EGND)
to Enclosure Ground Screw
Ground Wire
Ground Screw
Tighten 6 Screws
to 20 in-lbs
