Publication 2705-UM001A-EN-P
2-4 Installation and Mounting

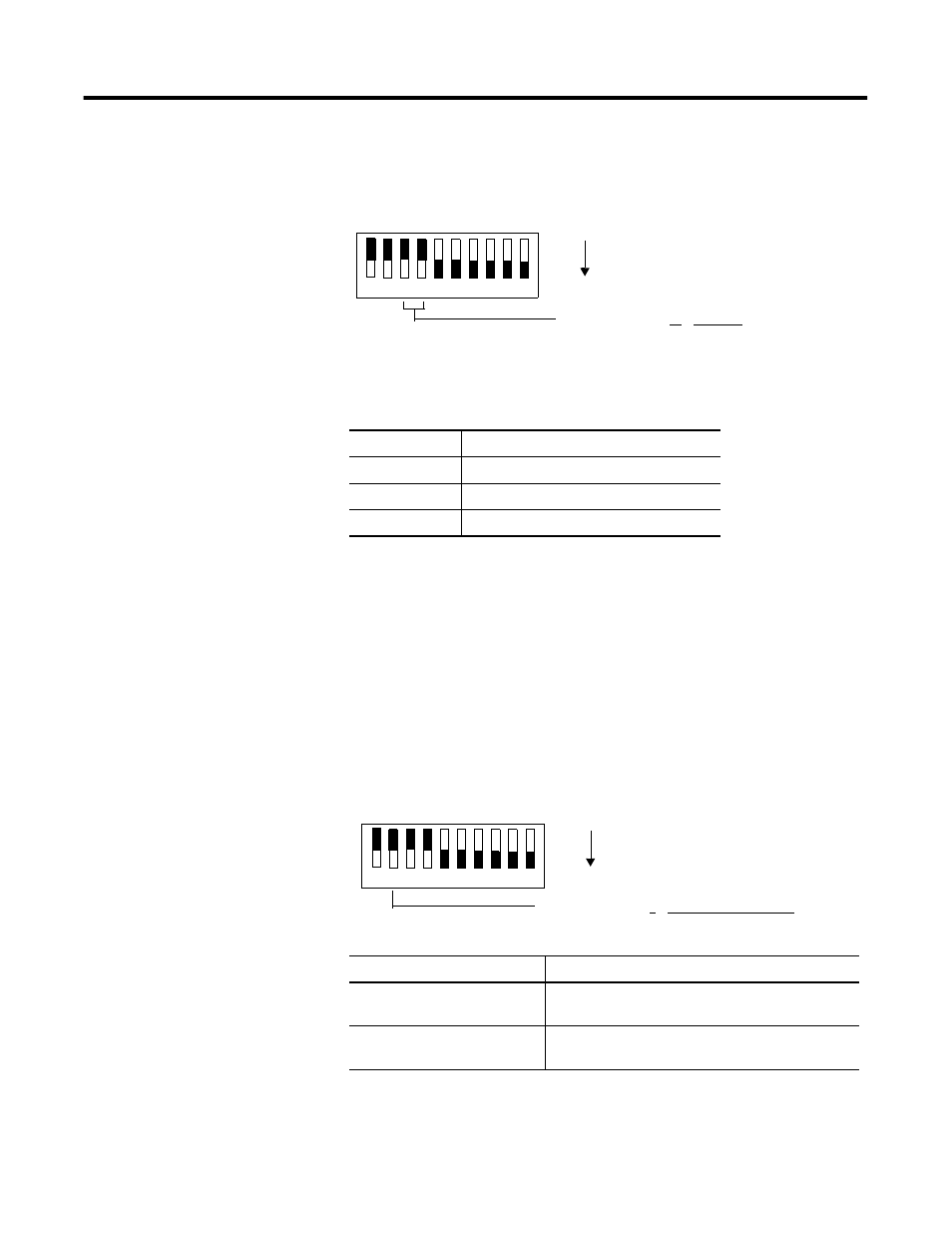

Setting the Data Rate
DIP switches 7 and 8 set the data rate at which the RediSTATION
communicates on the DeviceNet network. The factory default is 125K.
The data rate determines the maximum length of the DeviceNet cable.
To set the DeviceNet data rate:
1. Refer to the table above to select the correct data rate.
2. Slide switches 7 and 8 to the appropriate ON/OFF positions.
Setting the Output Fault State
DIP switch 9 sets the state of the outputs (pilot lights) when the
device detects an error. The factory default setting is to turn the
outputs off when an error is detected. The station ignores push button
presses in the error state. When communication is regained, the
station updates itself and resumes operation.
To change the fault state, slide switch 9 to the correct ON/OFF setting.
Data Rate Cable Length (Maximum)
125K BPS 500 meters (1600 feet)
250K BPS 200 meters (600 feet)
500K BPS 100 meters (300 feet)
Output Fault States Description
Outputs Turn Off on Error When communication is lost, the station turns off
outputs.
Outputs Retain Last State When communication is lost, the outputs remain in
their last state.
1 2 3 4 5 6 7 8 9 10
OFF = 0
ON = 1
DeviceNet Data Rate 00 = 125K BPS
01 = 250K BPS
10 = 500K BPS
11 = Unused
1 2 3 4 5 6 7 8 9 10
OFF = 0
ON = 1
Output Fault State 0 = Outputs Turn Off on Fault
1 = Outputs Hold Last State on Fault
