Page 24
Publication 2705-UM001A-EN-P
2-8 Installation and Mounting
Securing Enclosure Cover
After setting the DIP switches and mounting the enclosure, secure the
cover of the enclosure.
To secure the enclosure cover:
1. Plug the DeviceNet terminal block connector into the circuit
board.
2. Secure the cover of the enclosure with the six cover screws.
Tighten screws to 20 in-lbs to ensure proper seal.

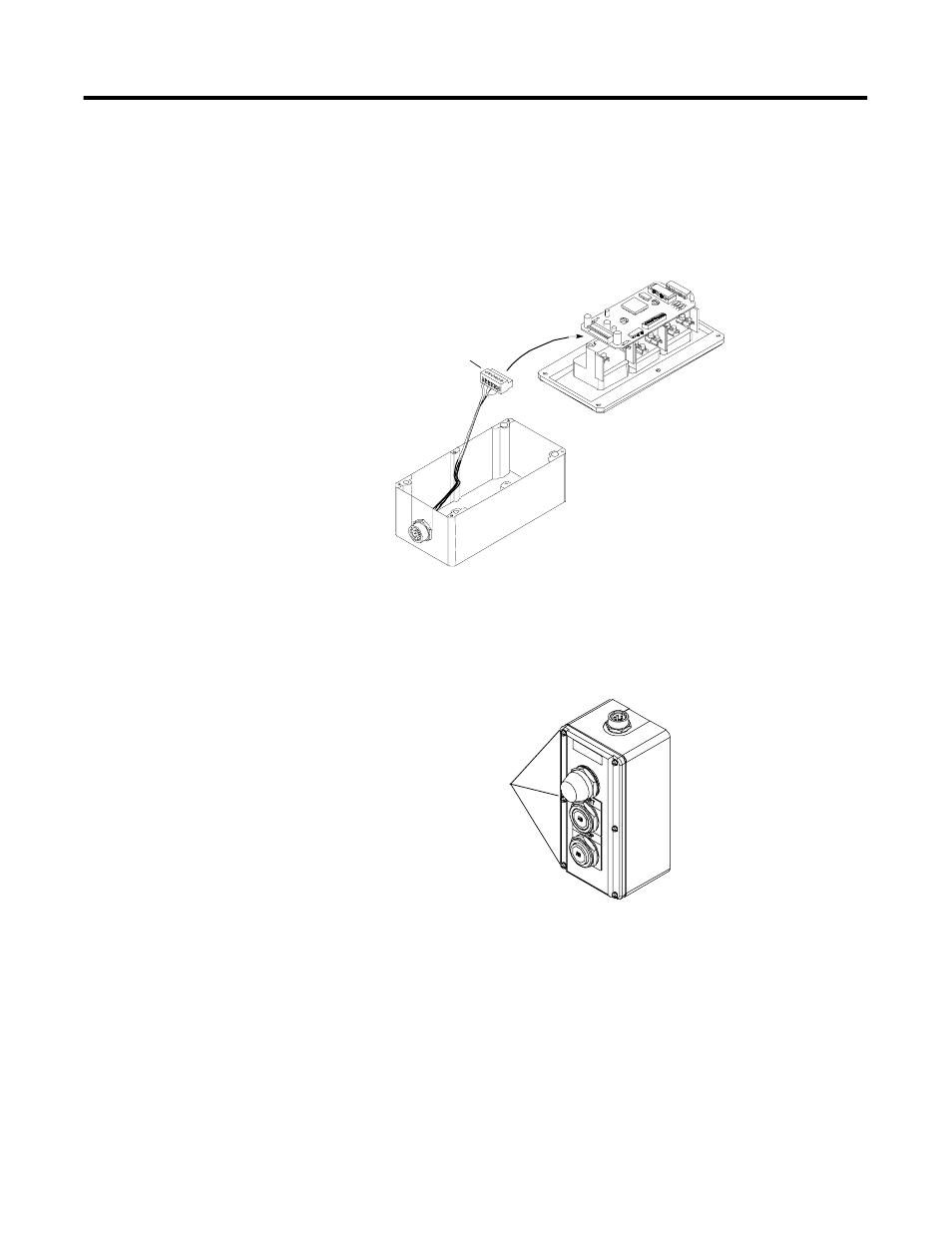

Removable Terminal
Block Connector
Plug Connector
into Circuit Board
Tighten 6 Screws
to 20 in-lbs
