64 Rockwell Automation Publication 1732E-UM005A-EN-E - July 2012
Chapter 5 Calibrate Your Modules
12. Click Next to calibrate the module.

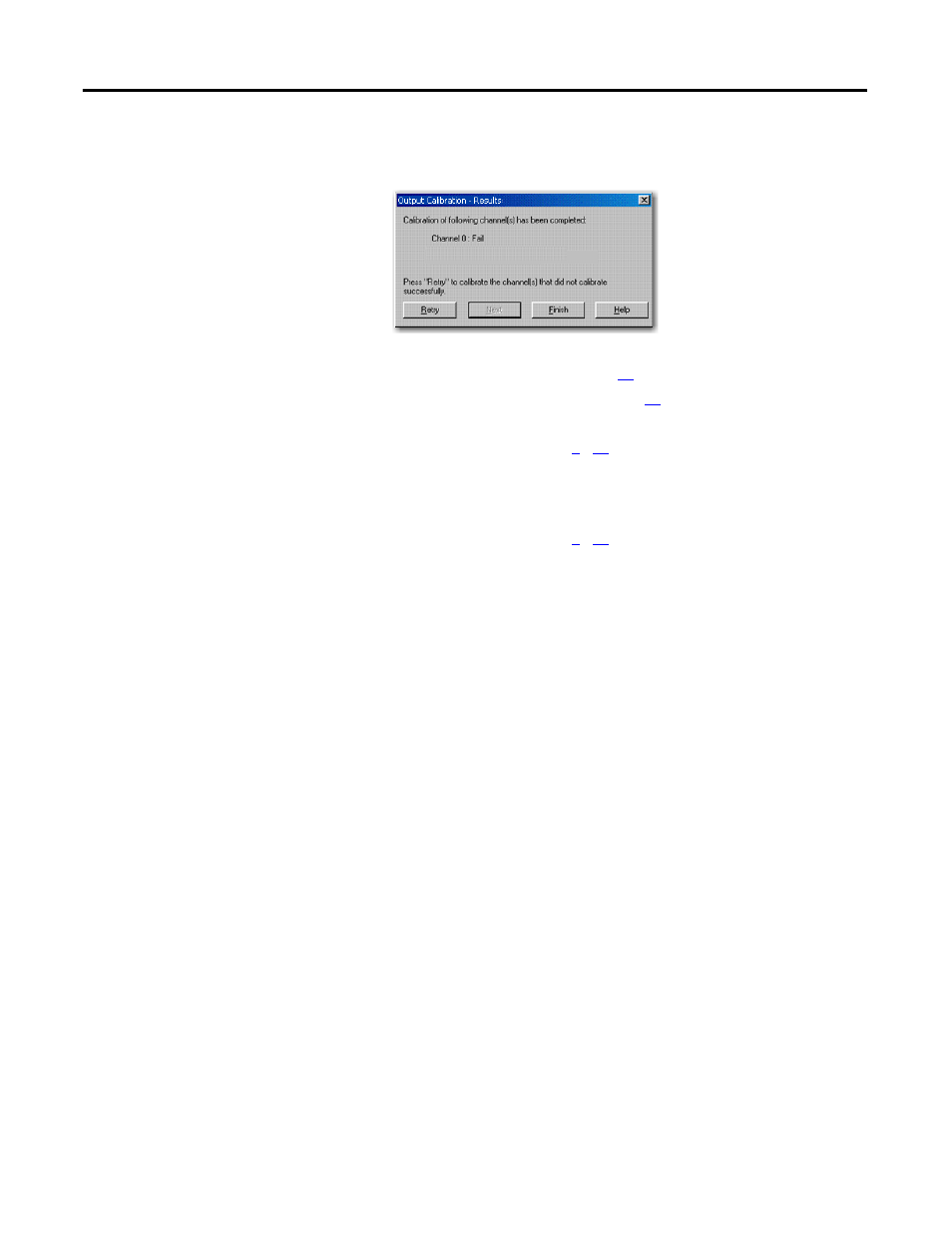

The Output Calibration Results page appears.
• For failed calibration, go to step
13 .
• For successful calibration, go to step
14 .
13. If the calibration failed, click Retry to recalibrate the same channel.
This takes you back to steps
8 … 12 until you get successful calibration on
the channel.
14. If the calibration is successful, click Next to start calibration on the next
channel (in this example, channel 1).
This takes you back to steps
8 … 12 . You will have to go through the same
steps for each of the next channels lined up for calibration.
15. After successful calibration on the channel(s), click Finish to close the
Calibration Wizard.
Chapter Summary This chapter provided a step-by-step guide on how to calibrate your ArmorBlock
analog input and output modules.
