Configuration Tab

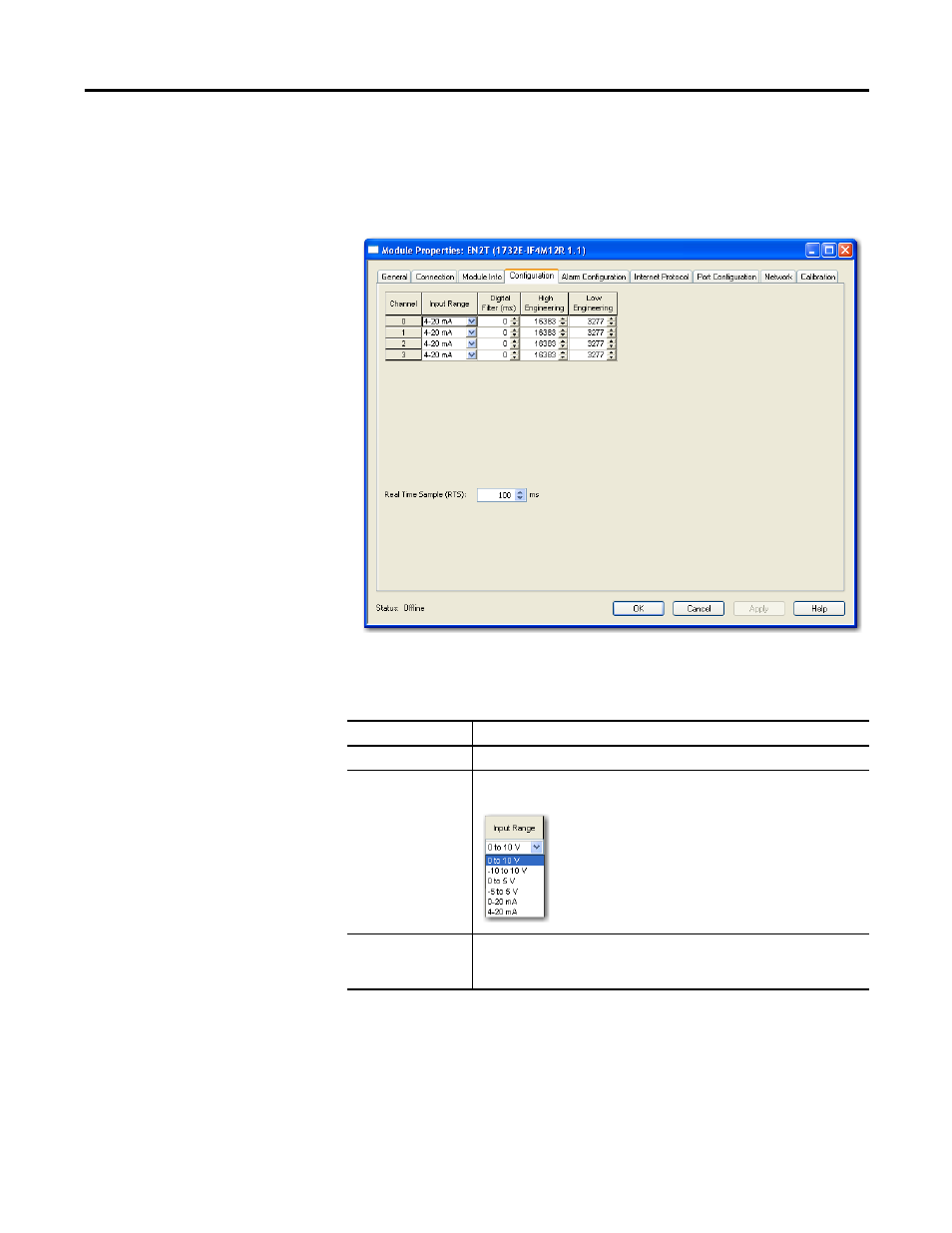

The Configuration tab on the Module Properties dialog box lets you program
information on each of the four channels on the 1732E-IF4M12R module.
1.
Choose from the options on the Configuration tab.
Configuration tab
Field
Description
Channel
Indicates the four input channels 0…3.
Input range
Input can be voltage or current, with current mode as default.
It has the following input range options:
Digital filter
Serves to reject higher frequency noise and harmonics.
Choose a value in milliseconds that specifies the time constant for a digital
first order lowpass filter on the input. A value of 0 disables the filter.
