Fault/Program Action Tab

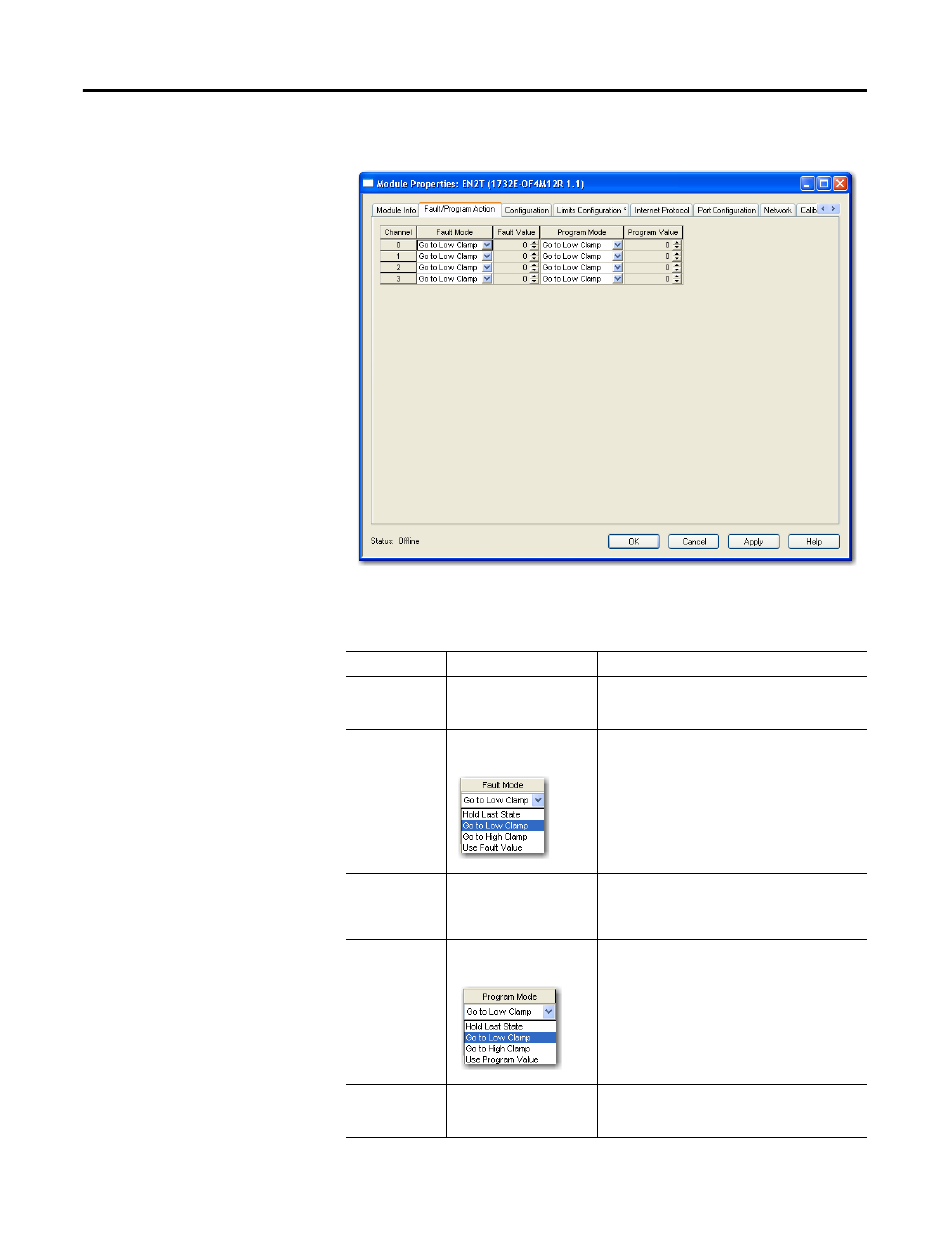

1. To configure the Fault/Program Action tab, set the following parameters:
Fault/Program Action tab
Field What to do Description
Channel Select a push button to
correspond to a channel
(0…3). Refers to the channel being configured.
Fault Mode Select from a dropdown
list: Allows the user to select any of the following
output behavior for each channel when in Fault
mode:
• Go to Low Clamp (default)
• Hold Last State
• Go to High Clamp
• Use Fault Value
Fault Value Specify a value. Activates when Use Fault Value is selected as Fault
Mode. The user needs to enter a value for the
output to transition to when there is a
communication fault.
Program Mode Select from a dropdown
list: Allows the user to select any of the following
output behavior for each channel when in Program
mode:
• Go to Low Clamp (default)
• Hold Last State
• Go to High Clamp
• Use Program Value
Program Value Specify a value. Activates when Use Program Value is selected as
Program Mode. The user needs to enter a value for
the output to transition to when in Program mode.
