Configurable Features for the Analog Input and Output Modules Chapter 4

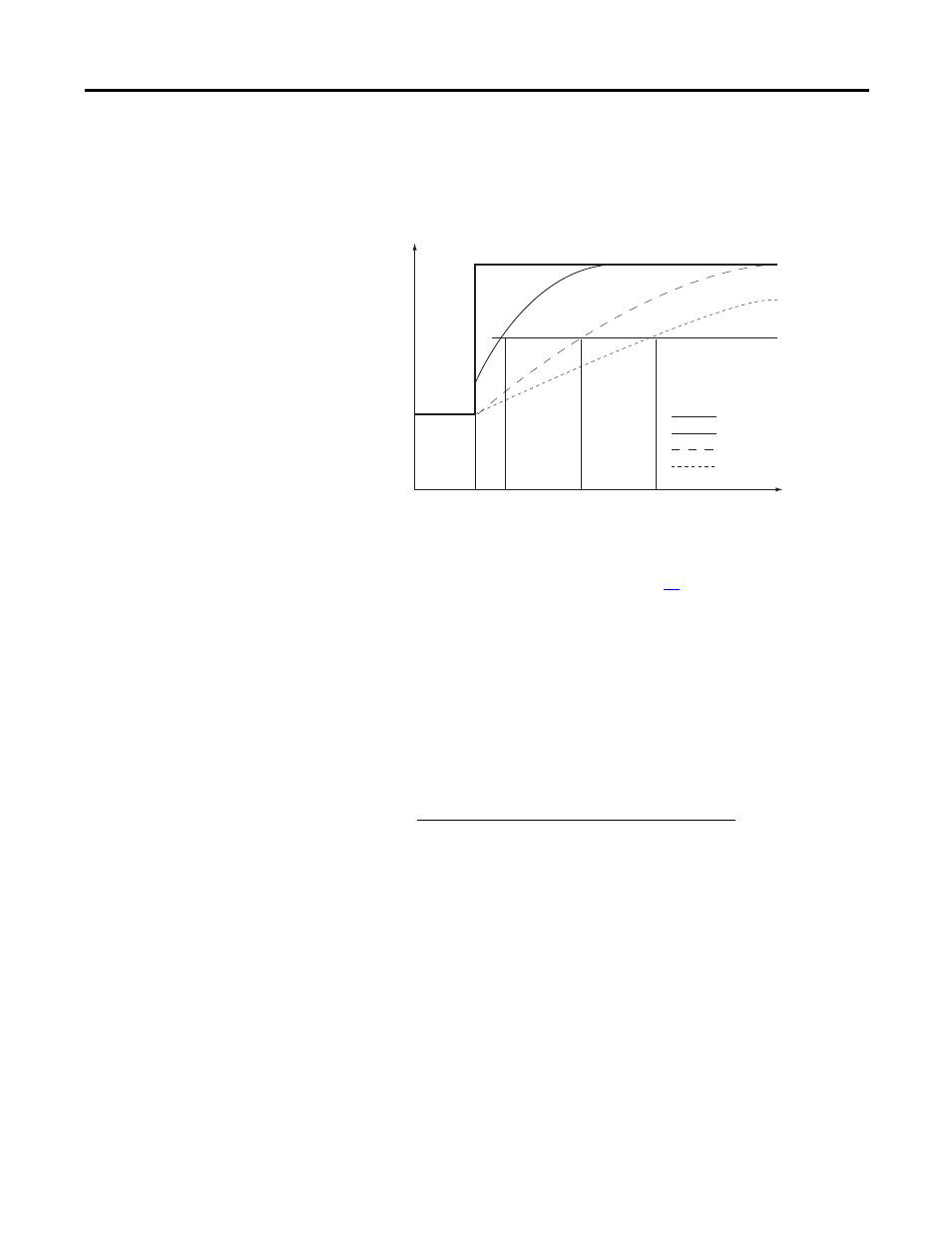

Using a step input change to illustrate the filter response, as shown in the
illustration, you can see that when the digital filter time constant elapses, 63.2%
of the total response is reached. Each additional time constant achieves 63.2% of
the remaining response.
To set digital filters in RSLogix 5000, go to page 25 .
High Engineering/Low Engineering
High engineering and low engineering values help determine the engineering
units the signal values scale into. The high engineering term corresponds to the
high signal value, while the low engineering term corresponds to the low signal
value. The scaling equation used is shown below.
0 0.01 0.5 0.99 Time in Seconds
16723
100%
63%
0
Amplitude
Unfiltered Input
TA = 0.01 sec
TA = 0.5 sec
TA = 0.99 sec
Data =
(Signal-LowSignal)(HighEngineering-LowEngineering)
High Signal - Low Signal
+ Low Engineering
