10 Rockwell Automation Publication 1732E-UM005A-EN-E - July 2012
Chapter 2 Install Your ArmorBlock Module
Mount the Module in High Vibration Areas
If you mount the module in an area that is subject to shock or vibration, we
recommend you use a flat and a lock washer to mount the module. Mount the flat
and the lock washer as shown in the mounting illustration. Torque the mounting
screws to 0.68 Nm (6 lb-in.).

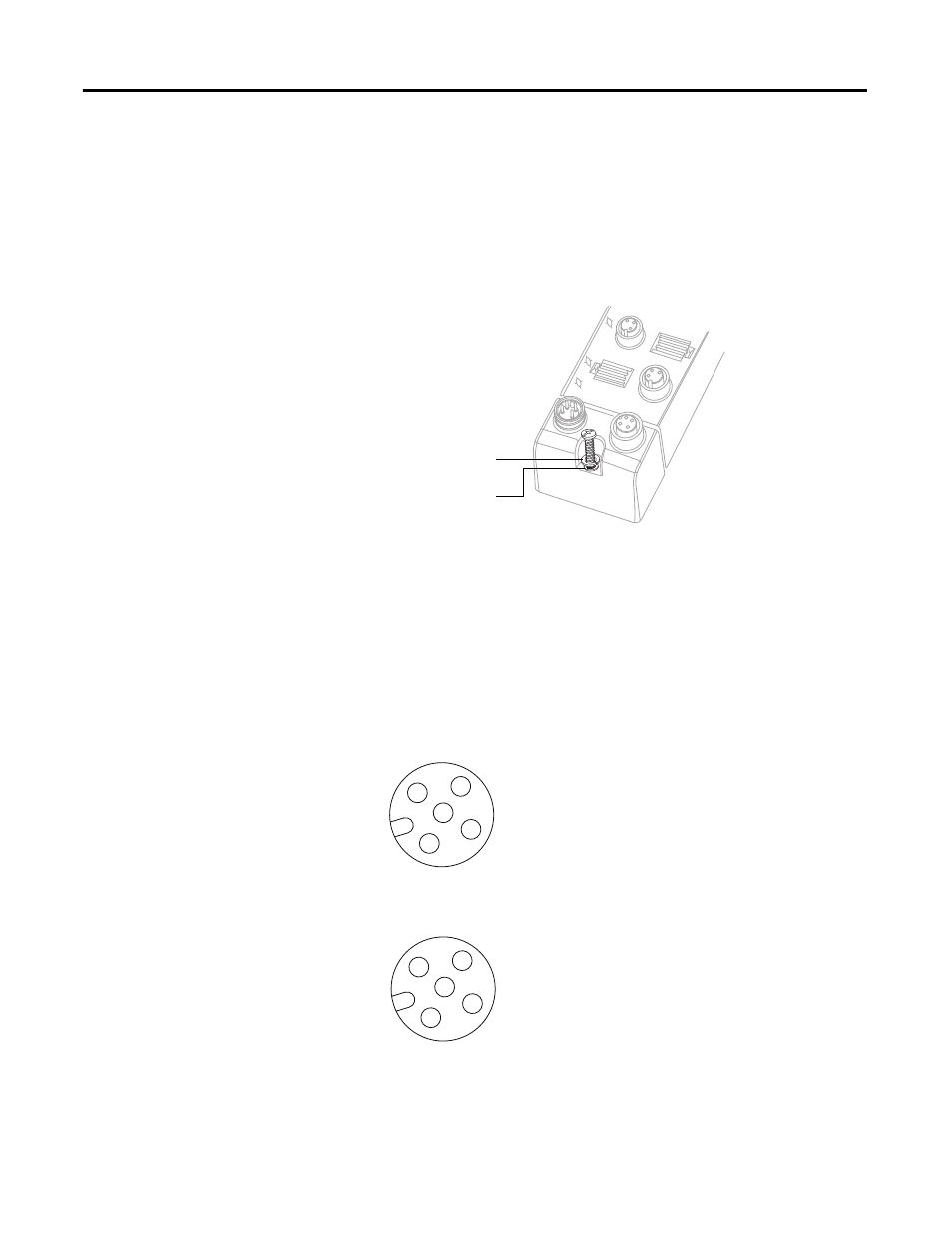

High Vibration Area Mounting
Wire the Module The 1732E-IF4M12R, 1732E-OF4M12R ArmorBlock EtherNet/IP modules
have 5-pin micro-style M12 I/O connectors. We provide caps to cover the unused
connectors on your module. Connect the quick-disconnect cord sets you selected
for your module to the appropriate ports.
I/O Connectors
(1)
Micro-style M12 5-Pin Input Female Connector – 1732E-IF4M12R
Micro-style M12 5-Pin Input Female Connector – 1732E-OF4M12R
45768
Lock washer
Flat washer
(1) Only 4 of the 5 pins are active. The center pin (5) is internally tied to signal ground to minimize
external noise pickup.
3
4
1
2
5
45868
(View into connector)
Pin 1 Current Input +
Pin 2 Current Common
Pin 3 Voltage Input +
Pin 4 Voltage Common
Pin 5 No Connect
3
4
1
2
5
45868
(View into connector)
Pin 1Current Output +
Pin 2Current Common
Pin 3Voltage Output +
Pin 4Voltage Common
Pin 5No Connect
