60
Rockwell Automation Publication 1756-UM022A-EN-P - November 2012
Chapter 5
Add, Configure, Monitor, and Replace CIP Safety I/O
• IP address for EtherNet/IP networks
To set the IP address, you can adjust the rotary switches on the module, use
DHCP software, available from Rockwell Automation, or retrieve the
default address from nonvolatile memory.
• Safety network number (SNN)
See page
for information on setting the SNN.
• Configuration signature
See page
for information on when the configuration signature is set
automatically and when you need to set it.
• Reaction time limit
for information on setting the reaction time limit.
• Safety input, output, and test parameters
You can configure CIP Safety I/O modules via the GuardLogix controller by
using the Logix Designer application.
Configure CIP Safety I/O
Modules
Add the CIP Safety I/O module to the communication module under the I/O
Configuration folder of the controller project.

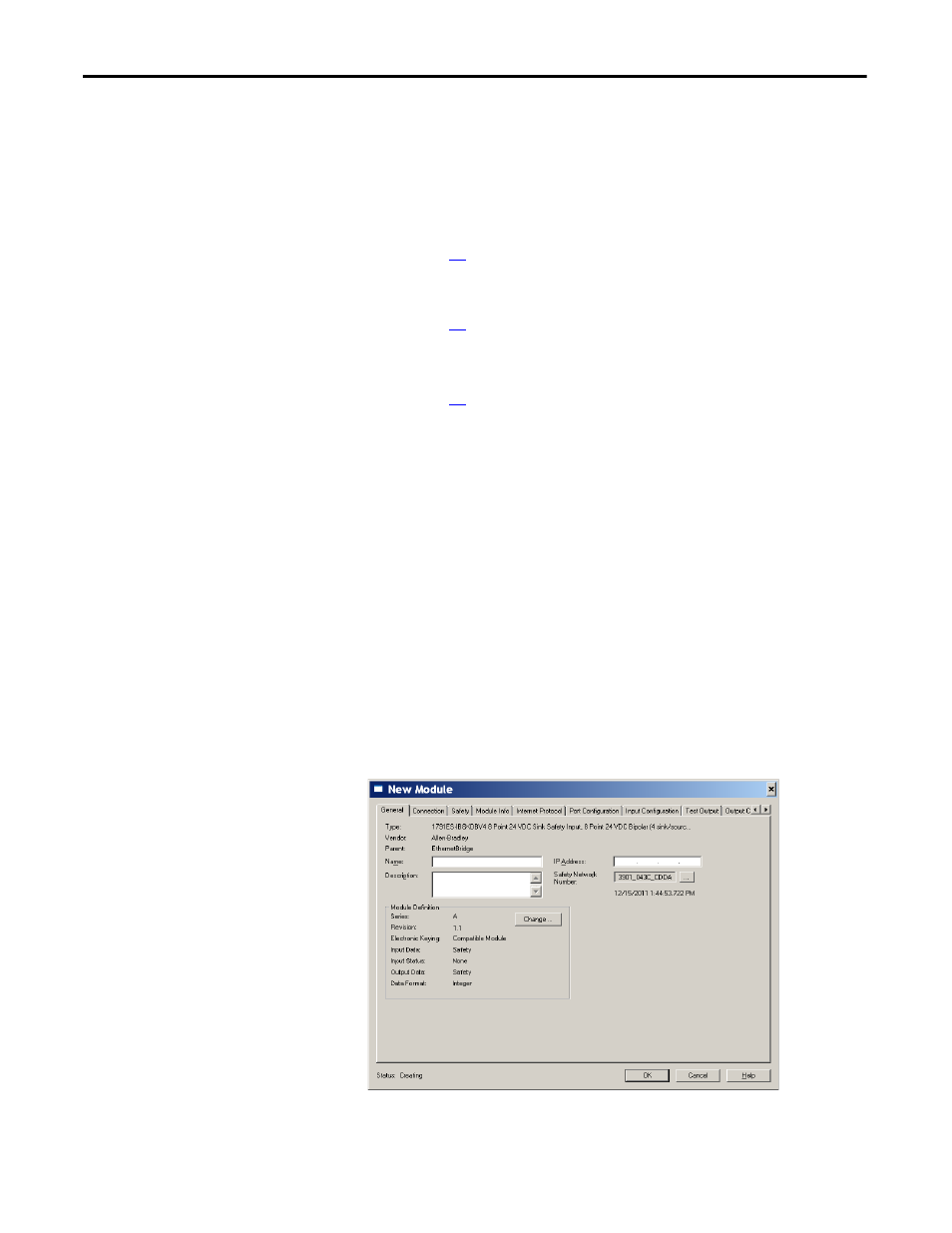

1. Right-click the appropriate network and choose New Module.
2. Expand the Safety category and choose a CIP Safety I/O module.
3. Specify the module properties.
a. Modify the Module Definition settings, if required, by clicking
Change.
TIP
Safety I/O modules support standard and safety data. Module
configuration defines what data is available.
TIP
You cannot add or delete a CIP Safety I/O module while online.
