Page 56

56
Rockwell Automation Publication 1756-UM022A-EN-P - November 2012
Chapter 4
Communicate over Networks
These products are used with the DeviceNet networks and 1756-DNB module.
DeviceNet Connections for CIP Safety I/O Modules
To access CIP Safety devices on DeviceNet networks, add a 1756-DNB to the
I/O Configuration tree of the GuardLogix controller project.
CIP Safety I/O modules on DeviceNet networks are added to the project under
the 1756-DNB module, as described in
. When you add a CIP Safety I/O module, the Logix
Designer application automatically creates controller-scoped safety data tags for
that module.

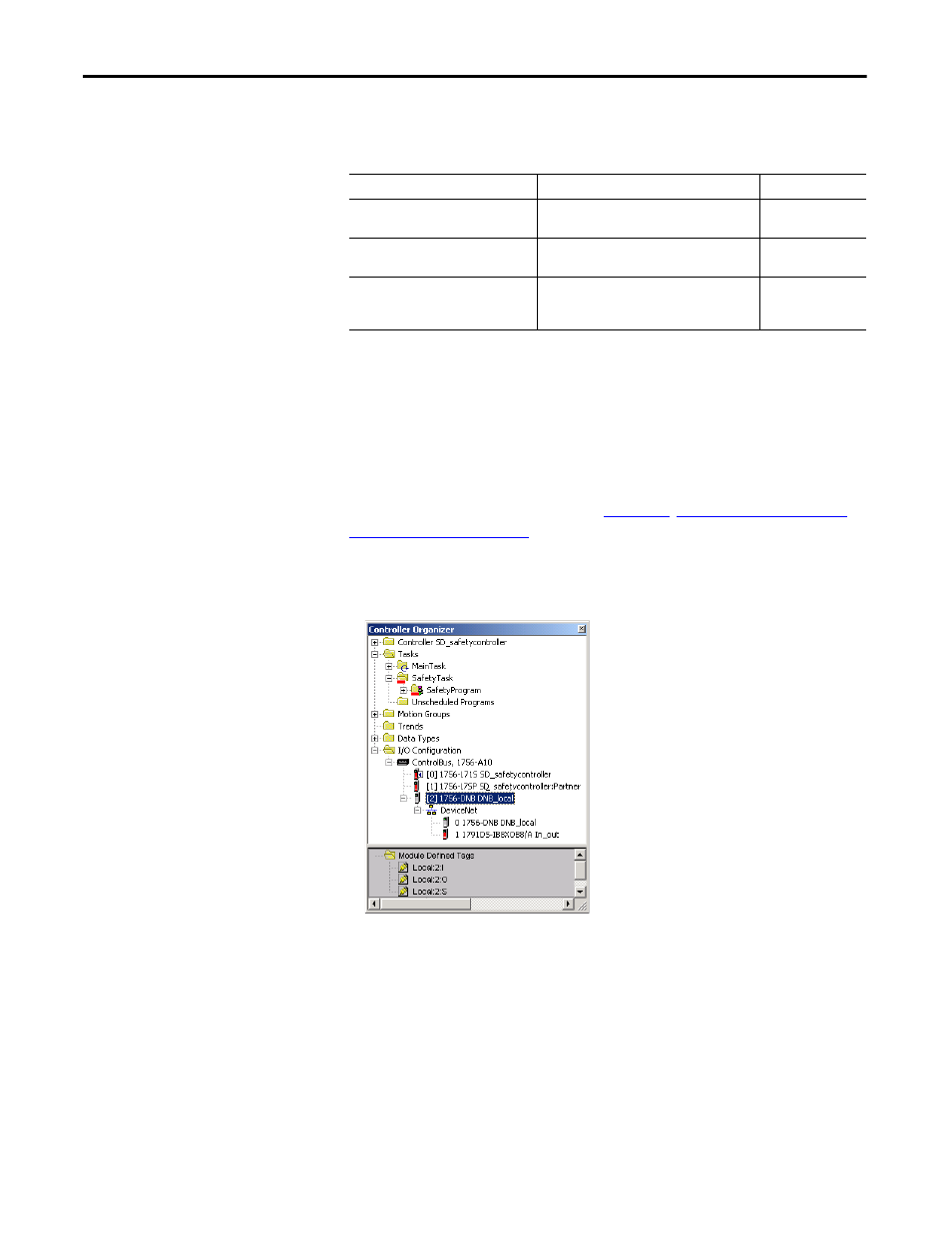

Figure 15 - DeviceNet Module in Controller in the I/O Configuration Tree
Standard DeviceNet Connections
If you use standard DeviceNet I/O with your GuardLogix controller, you need to
allocate two connections for each 1756-DNB module. One connection is for
module status and configuration. The other connection is a rack-optimized
connection for the DeviceNet I/O data.
Table 17 - Product for Use with DeviceNet Networks
Product
Is used to
Required
Studio 5000 environment
• Configure ControlLogix projects.
• Define DeviceNet communication.
Yes
RSNetWorx for DeviceNet software
• Configure DeviceNet devices.
• Define the scan list for those devices.
Yes
RSLinx Classic or
RSLinx Enterprise software
• Configure communication devices.
• Provide diagnostics.
• Establish communication between devices.
Yes
