EtherNet/IP Communication Example
This example illustrates the following:
• The controllers can produce and consume standard or safety tags between
each other.
• The controllers can initiate MSG instructions that send/receive standard
data or configure devices.
(1)
• The EtherNet/IP communication module is used as a bridge, letting the
safety controller produce and consume standard and safety data.
• The personal computer can upload/download projects to the controllers.
• The personal computer can configure devices on the EtherNet/IP
network.

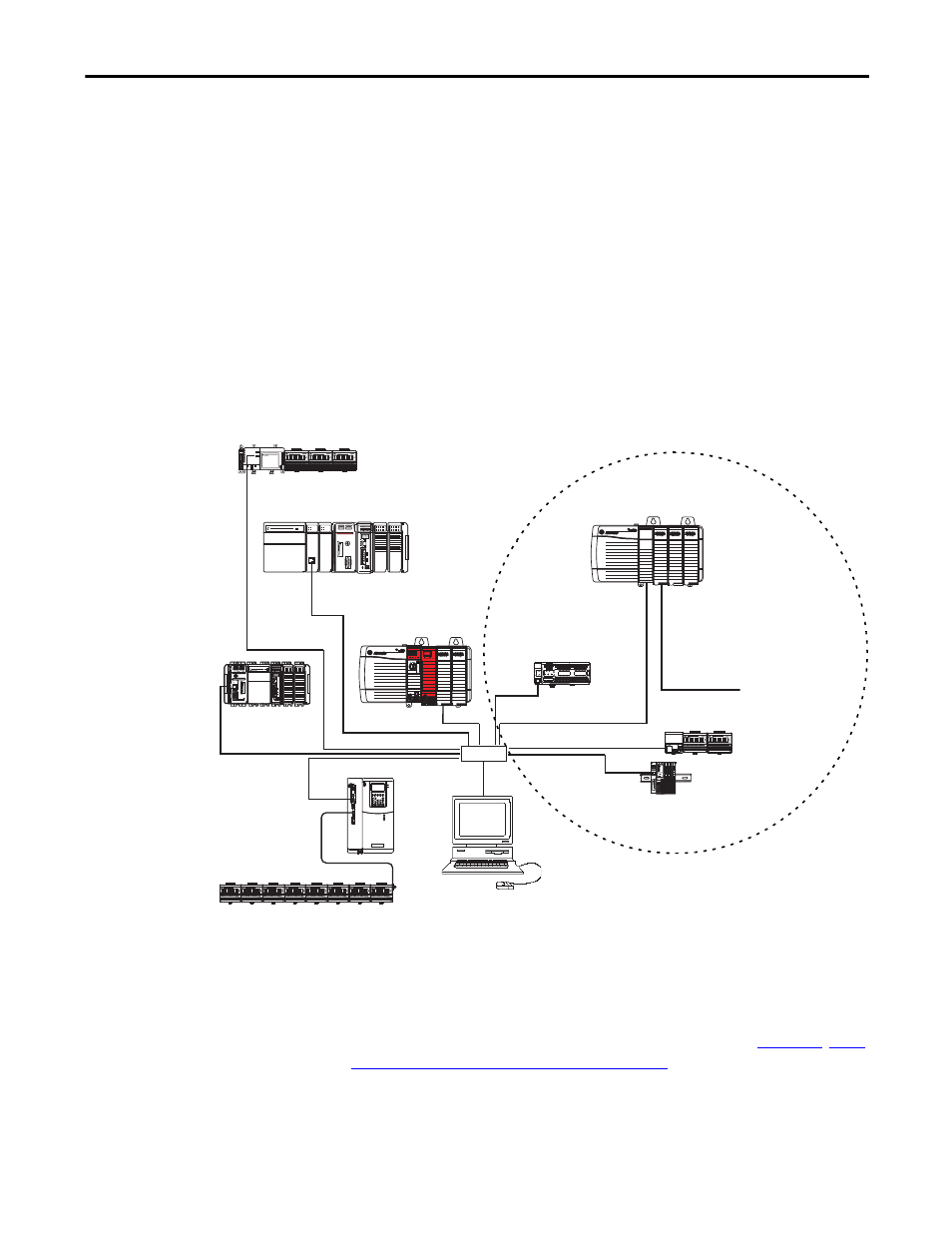

Figure 12 - EtherNet/IP Communication Example
EtherNet/IP Connections for CIP Safety I/O Modules
CIP Safety I/O modules on EtherNet/IP networks are added to the project
under the EtherNet/IP communication module as described in
Chapter 5 , Add,
Configure, Monitor, and Replace CIP Safety I/O . When you add a CIP Safety
I/O module, the Logix Designer application automatically creates
controller-scoped safety data tags for that module.
(1) GuardLogix controllers do not support MSG instructions for safety data.
Workstation
Distributed I/O
1756-EN2T Module
(as an Adapter) with
1756 I/O Modules
1756-DNB Module for Remote DeviceNet
Communication
to Standard or Safety
Devices on DeviceNet
Network
CompactLogix™ Controller with
Integrated
EtherNet/IP Port
FlexLogix™ Controller with 1788-ENBT Module
GuardLogix Controller with
1756-EN2T Module
1794-AENT Adapter
with 1794 I/O Modules
1734-AENT Adapter with
1734 I/O Modules
PowerFlex
®
700S AC
Drive with DriveLogix™
Software
switch
1791ES-IB8XOBV4
Module
1768 Compact GuardLogix Controller with
1768-ENBT Module
