Configure the Controller
Create a Controller Project
To configure and program your controller, use the Logix Designer application to
create and manage a project for the controller.

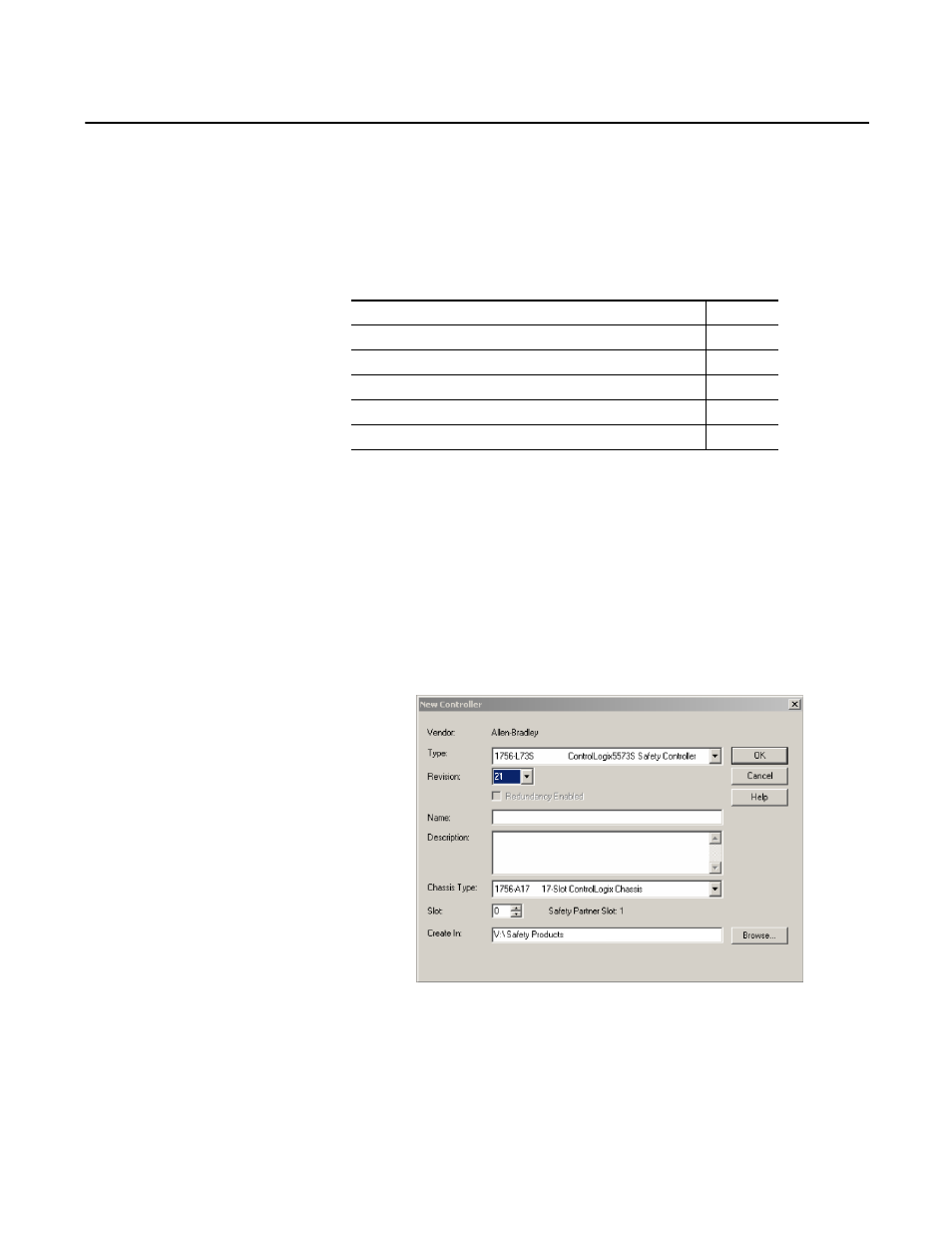

1. Create a project in by clicking the New button on the main toolbar.
2. From the Type pull-down menu, choose a GuardLogix controller:
• 1756-L71S ControlLogix5571S Controller
• 1756-L72S ControlLogix5572S Controller
• 1756-L73S ControlLogix5573S Controller
3. Enter the major revision of firmware for the controller.
4. Type a name for the controller.
When you create a project, the project name is the same as the name of the
controller. However, you can rename either the project or the controller.
5. Select the chassis size.
