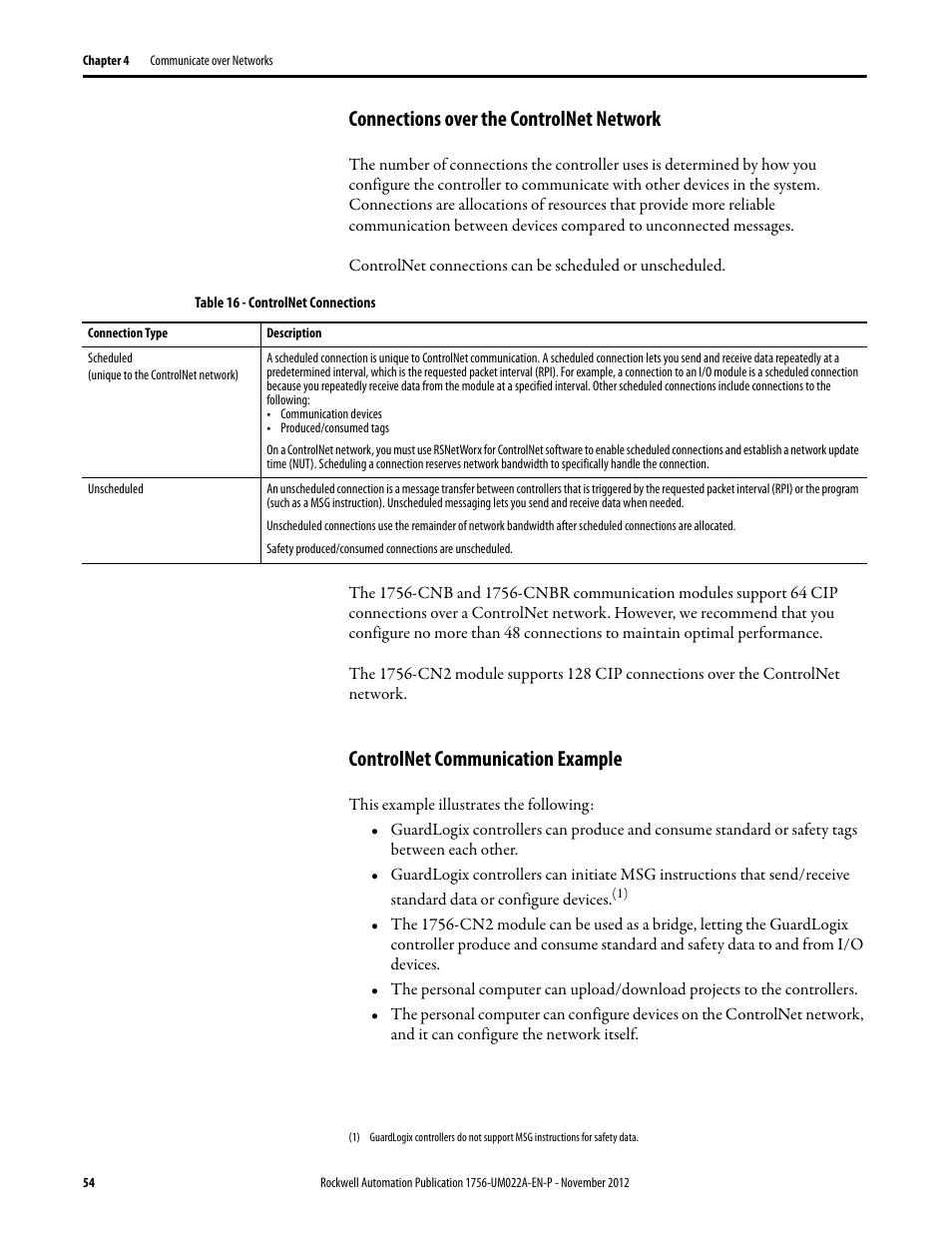

Connections over the controlnet network, Controlnet communication example – Rockwell Automation 1756-L7x GuardLogix 5570 Controllers User Manual
Page 54
