Chapter 5 Manually Configure the DeviceNet Network
Configure ADR Parameters

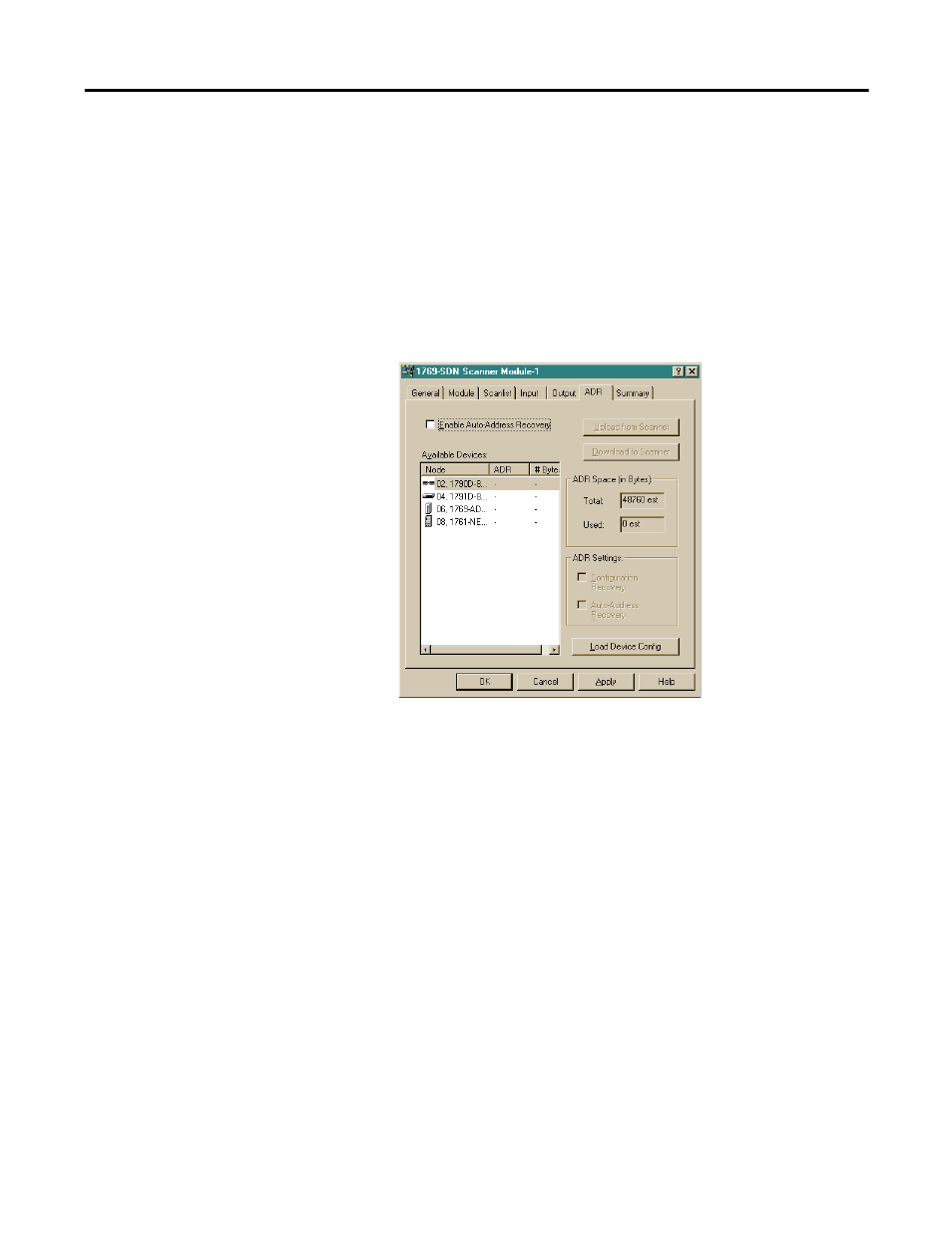

On the ADR tab, you can configure the ADR parameters for the 1769-SDN
scanner module. Using the controls on this tab, you can select ADR
parameters and enable or disable this functionality either globally or on a
device-specific basis.
Configure each device on the network. If online, make sure that the
configuration is synchronized with the online devices.
1.
On the ADR tab, select the device you want to configure to use ADR.
2.
Click Load Device Config.
This will load the configuration of each device selected into the scanner
module configuration software. If you are online, but did not upload the
network, the configuration retrieved for the devices may not be what is
actually used online.
