Page 113
Publication 1769-UM009E-EN-P - August 2009
113
Use the 1769-SDN Scanner Module with MicroLogix Controllers Chapter 7
Configure a Local
DeviceNet Message
This section describes how to configure a local message by using the scanner
module and a MicroLogix 1500 1764-LRP processor.
Message Setup Dialog

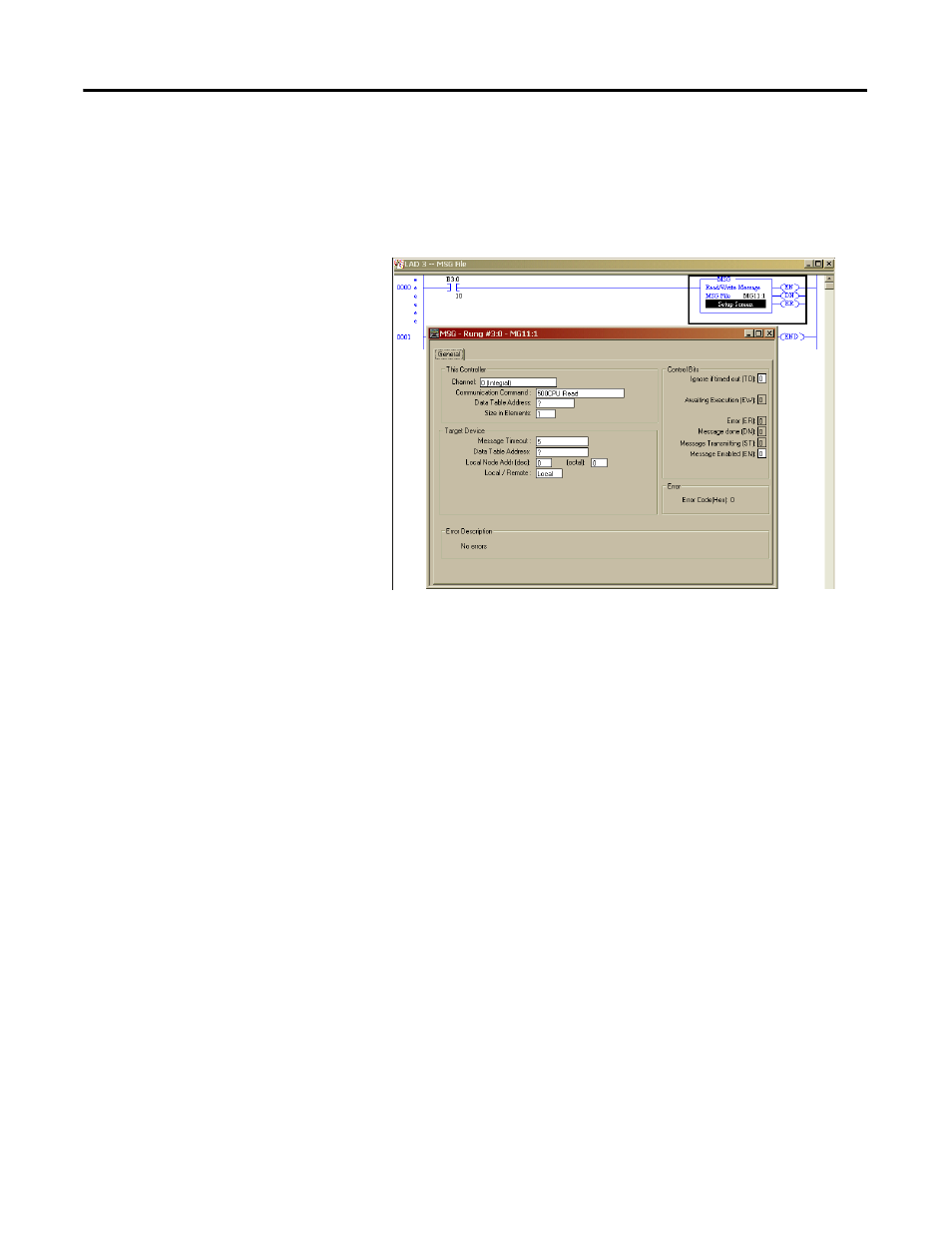

Rung 0 shows a standard RSLogix 500 message (MSG) instruction preceded
by conditional logic.
Access the Message Setup dialog by double-clicking the Setup Screen.
The RSLogix 500 Message Setup dialog appears. This dialog is used to set up
or monitor message parameters for this controller, target device, and control
bits. Descriptions of each of these sections follow.
