Publication 1769-UM009E-EN-P - August 2009 105
Use the 1769-SDN Scanner Module with MicroLogix Controllers Chapter 7
Start the Project
Follow these steps to begin your project.
1. Open RSLogix 500 software.
2. Choose File ⇒ New ⇒ MicroLogix 1500 LRP series C.

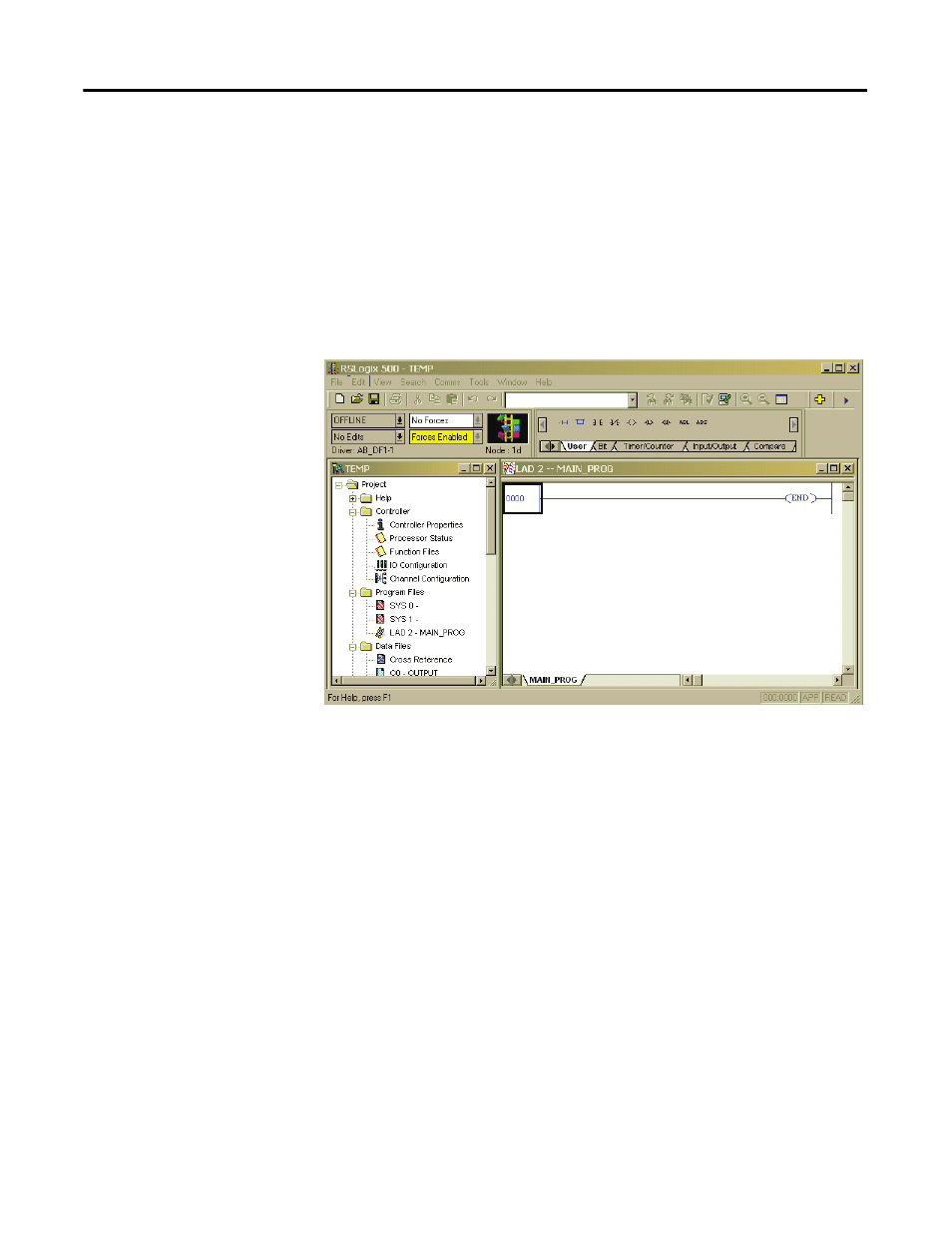

This dialog should match what you see on your computer.
In this example the name for this application is TEMP. In the TEMP
dialog, you see everything associated with the application. Within the
Controller folder you will see I/O Configuration.
3. Double-click I/O Configuration.
