18

Publication 1769-UM009E-EN-P - August 2009

Chapter 1 Overview

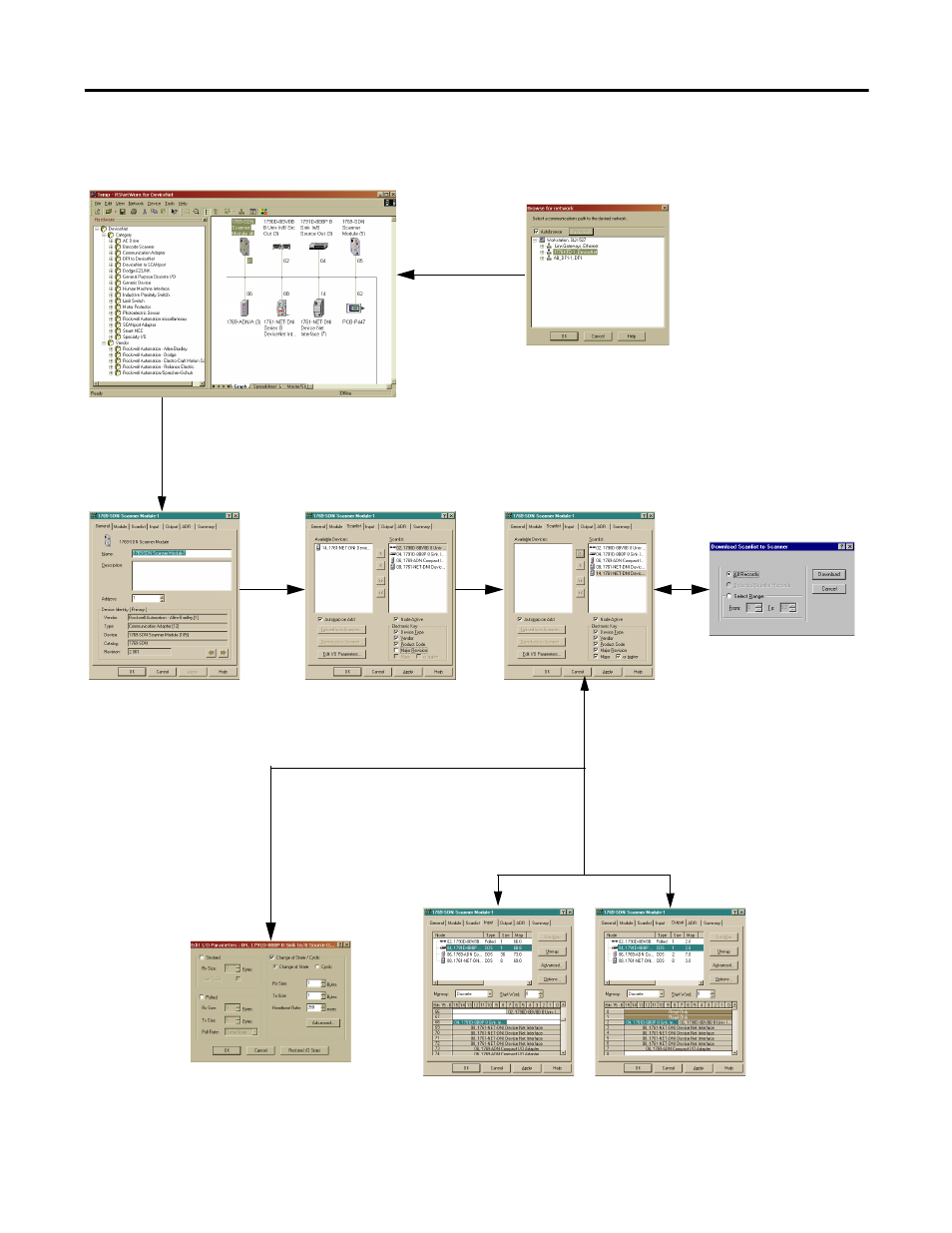

RSNetWorx Configuration Dialog Map

The main RSNetWorx dialog.

Click the Input tab and click
the AutoMap button to
automatically map input
devices.

Click the Output tab and click
the AutoMap button to
automatically map output
devices.

Click Online and select the
driver to browse the network.

Double-click the 1769-SDN icon to access
the 1769-SDN scanner module.

Click on the Scanlist tab to
access the scanlist.

Move the device into
the scanlist.

Click Download to Scanner to
download the scanlist.

Double-click the device in the
scanlist to edit a device’s I/O
parameters.
