12 Publication 1769-UM009E-EN-P - August 2009
Chapter 1 Overview

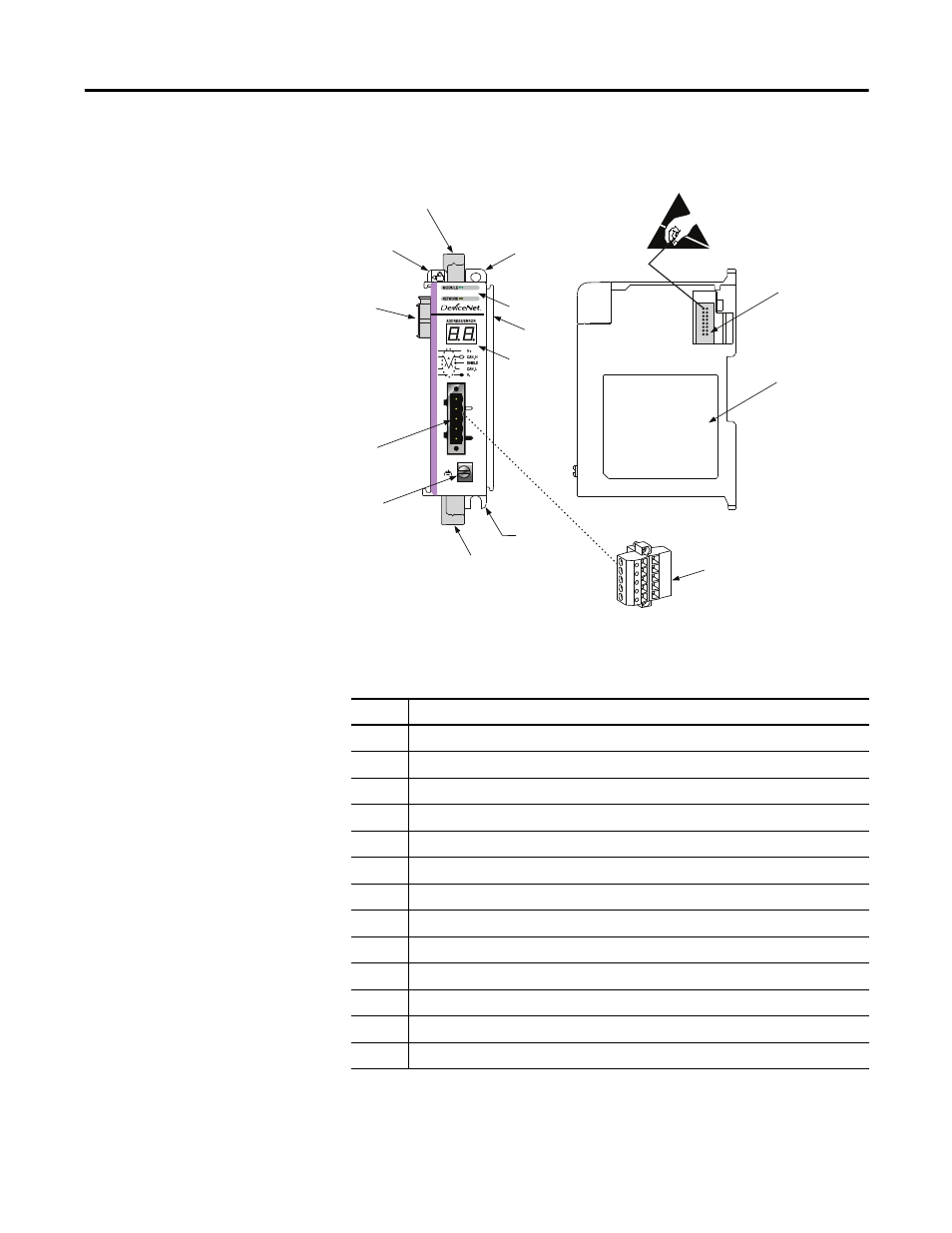

Module Features Use the following figure to identify the features of the scanner.
Module Features
Item Description
1 Bus lever (with locking function)
2A Upper DIN rail latch
2B Lower DIN rail latch
3A Upper panel mounting tab
3B Lower panel mounting tab
4 Module and Network status LEDs
5 Address and Error numeric display
6 Grounding screw
7A DeviceNet mating male receptacle
7B Removable DeviceNet female connector
8A Movable bus connector with female pins
8B Bus connector with male pins
9 Nameplate label
3A 1
2A
4
5
2B
6
7A
8A
8B
9
7B
3B
8B
