Rockwell Automation 1769-SDN Compact I/O DeviceNet Scanner Module User Manual User Manual
Page 66
66
Publication 1769-UM009E-EN-P - August 2009
Chapter 5 Manually Configure the DeviceNet Network
6.
Click OK to upload the devices and go online.

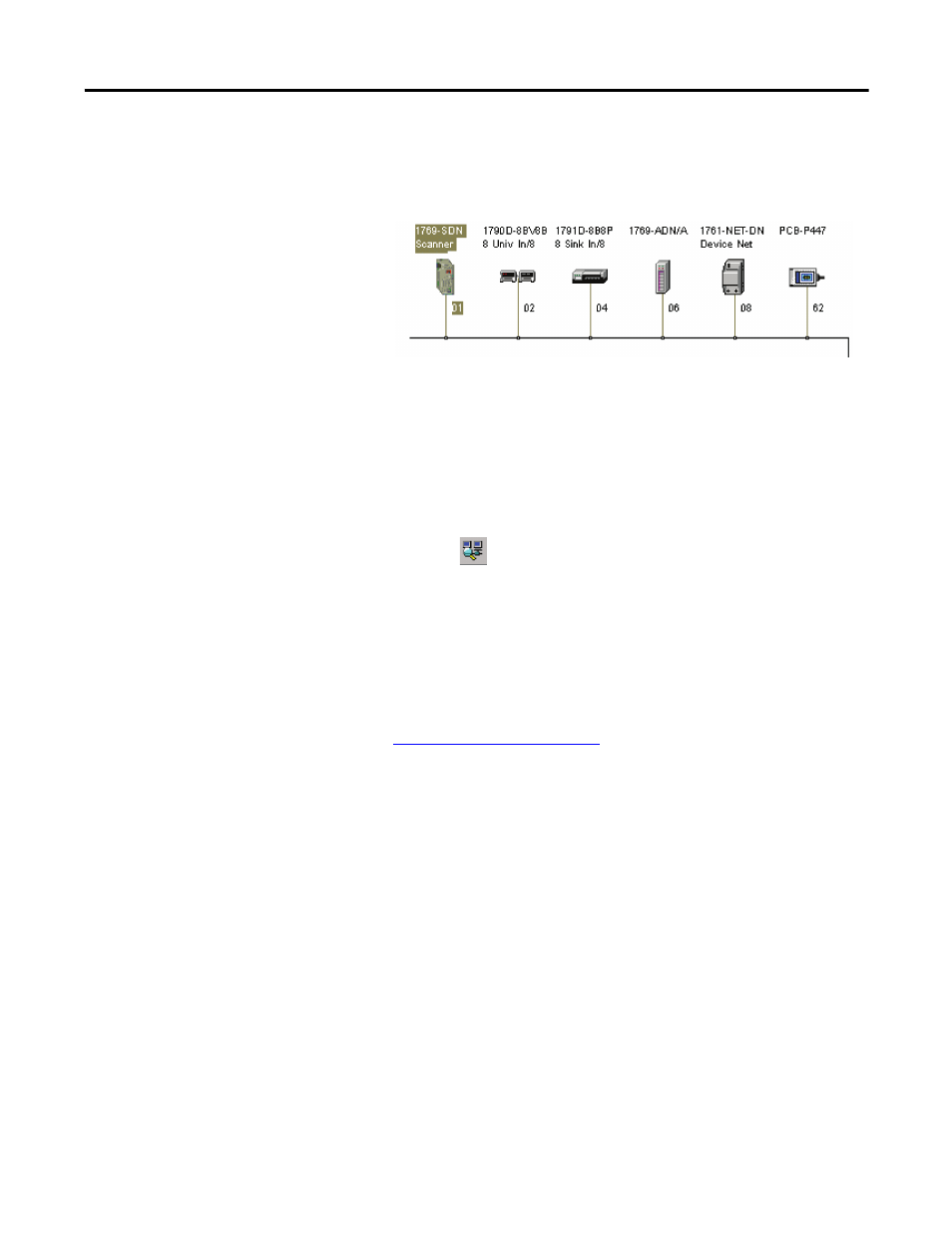

RSNetWorx for DeviceNet software begins browsing for network
devices. When the software is done browsing, your network is displayed.
RSNetWorx for DeviceNet software performs a single pass browse
when you go online or choose the browse feature. The software will poll
for devices one time and display the results. If a node that was online
later goes offline, there will be no live indication in RSNetWorx for
DeviceNet software. You must manually perform a browse to detect the
missing node.
Click the
button to manually perform the browse.
If RSNetWorx for DeviceNet software fails to find a device, check the
physical connection to the device. If the physical connection is intact,
verify that the device’s communication rate is the same as the
communication rate of the DeviceNet driver.
If your RSNetWorx for DeviceNet software does not include the
required electronic data sheet (EDS) file, go to
ttp://www.ab.com/networks/eds
.
Use the EDS Wizard in RSNetWorx for DeviceNet software to register
the new EDS file. Access the wizard from the Tools menu.
