Manually Configure the DeviceNet Network Chapter 5

4.

Select the device you are commissioning in the right panel and click OK.

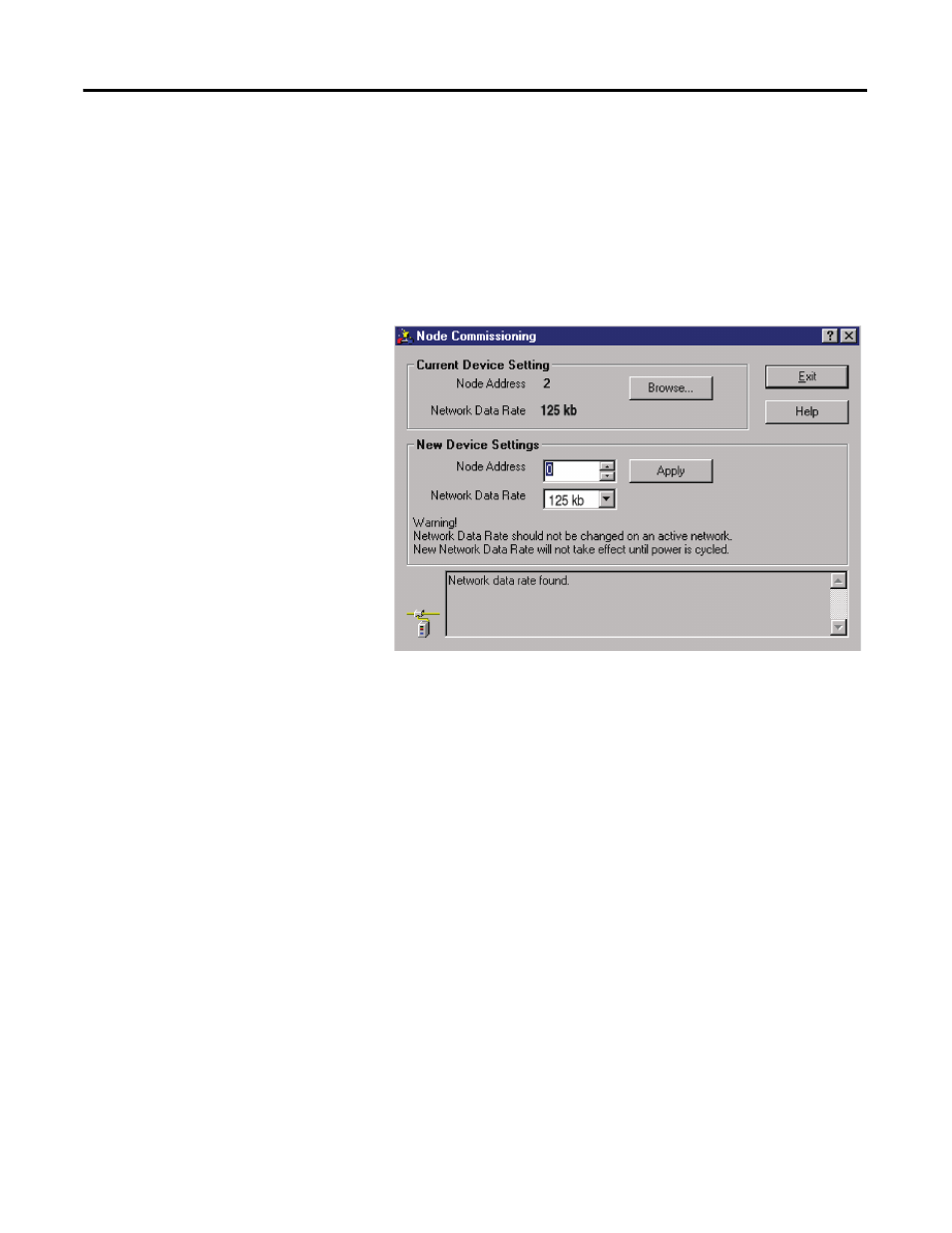

You will see the Node Commissioning dialog with the current settings
for your scanner module.

The default scanner module settings are as follows.

• Communication rate = 125 Kbps
• Node address = 63

5.

In the Node Address box, enter the new node address.

6.

Click Apply and Exit the dialog.
