Install the software – Rockwell Automation 1769-SDN Compact I/O DeviceNet Scanner Module User Manual User Manual
Page 62

62
Publication 1769-UM009E-EN-P - August 2009
Chapter 5 Manually Configure the DeviceNet Network
Install the Software
Follow these steps to install RSLinx and RSNetWorx for DeviceNet software
1.
Insert the software CD-ROM in the drive.
The CD-ROM supports Windows Autorun. If you have Autorun
configured, the installation will automatically start when you insert the
CD-ROM in your drive. If you do not have Autorun configured,
perform steps 2 and 3.
2.
From the Windows Start menu, choose Run.
3.
Browse for the Setup program on the CD-ROM and open it.
4.
Follow the prompts that appear as you install the software.
After software installation is complete, you will use RSLinx software to
configure your DeviceNet driver and RSNetWorx for DeviceNet software to
configure the network.
Use RSLinx Software to
Configure Your DeviceNet
Driver
Follow these steps to configure the DeviceNet driver.
1.

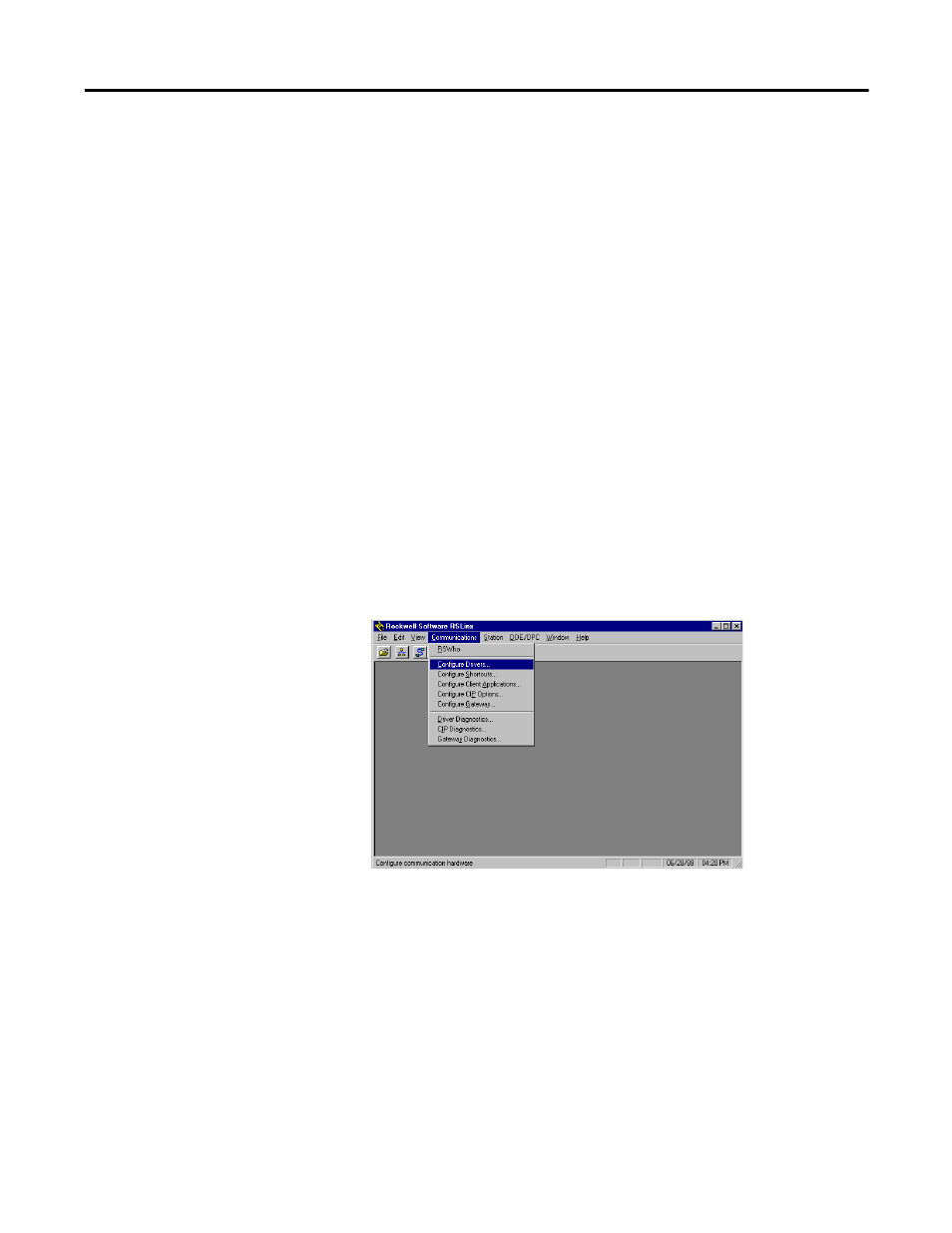

Start RSLinx software.
